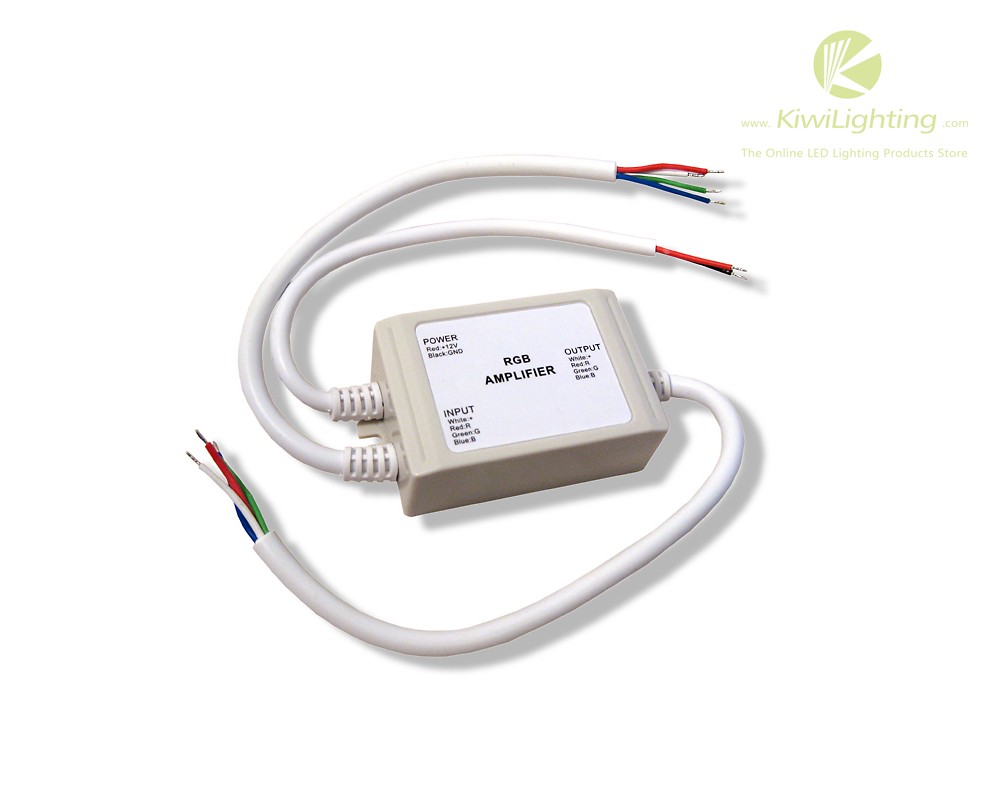

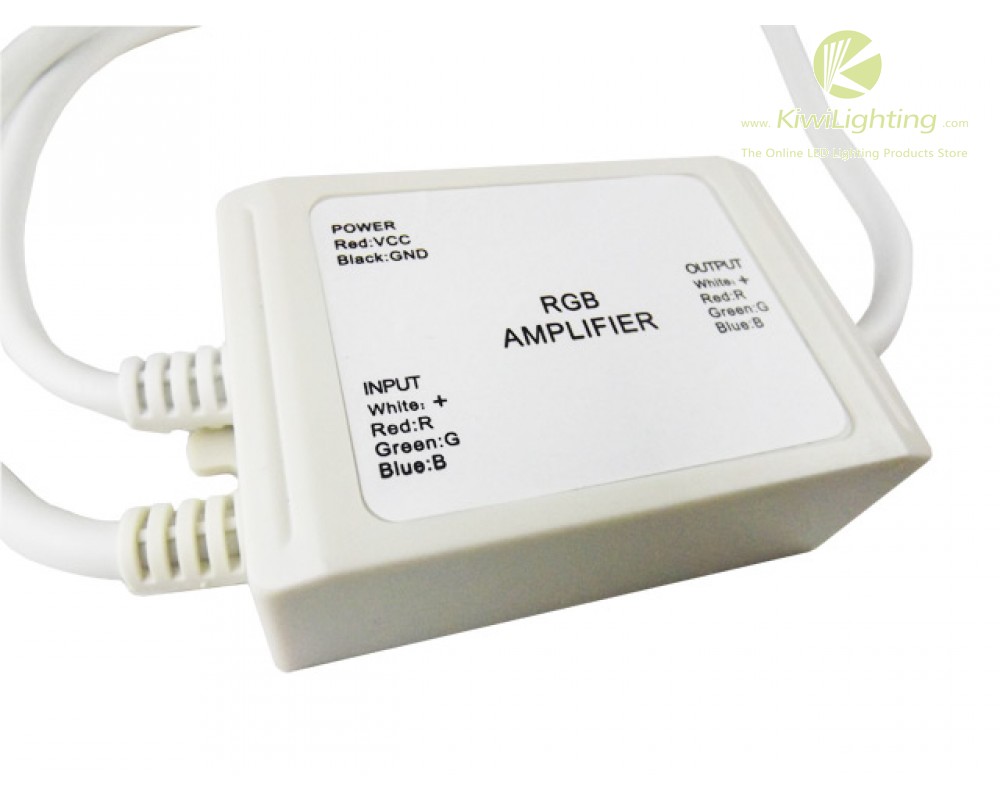

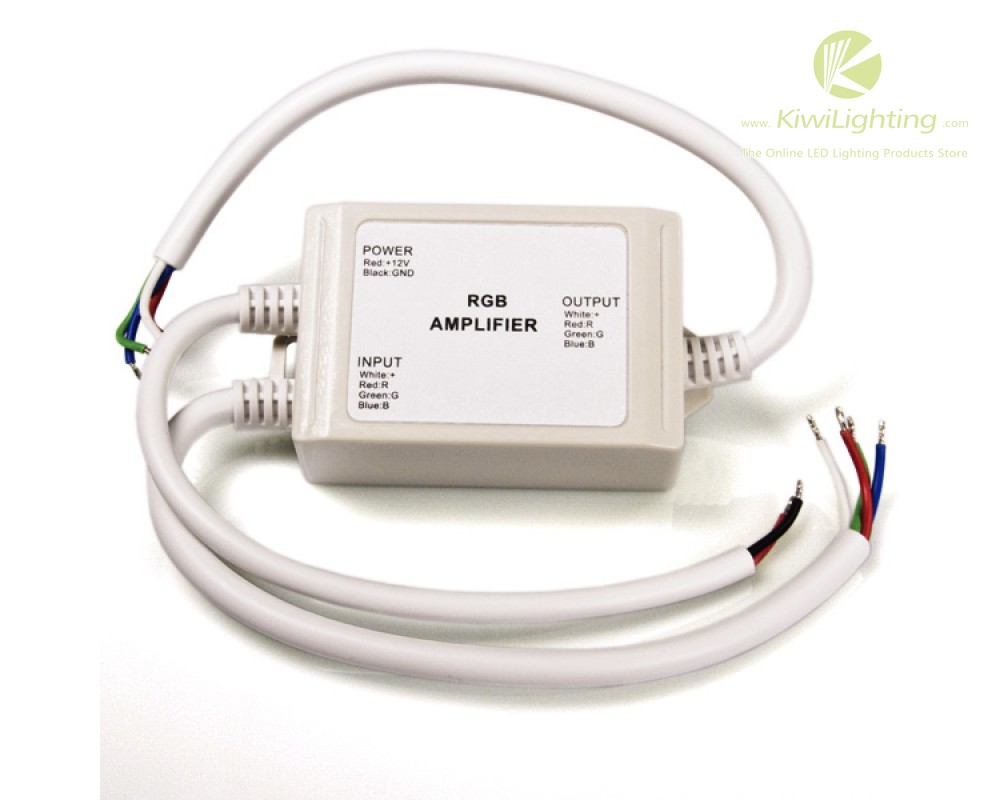

Waterproof RGB Signal Amplifier DC5V/12V/18V/24V 3-channel 0~4A/Ch common-anode RWM

Be the first to review this product

SKU:BY-AP-WF (Out of stock)

Waterproof RGB Signal Amplifier,
3 output channels,
RWM Module,
common anode,
Price From: $12.99

Waterproof RGB Signal Amplifier DC5V/12V/18V/24V 3-channel 0~4A/Ch common-anode RWM

RGB waterproof-Amplifier adjust to all the voltage-controlled LED controller we have, it has waterproof function, RGB could accept PWM (Pulse Width Module), Each one RGB amplifier can be added, the connecting number of LED will up to more than twice, could be connected in theory. Waterproof RGB Signal Amplifier three channel RGB amplifier. Maximum 4 Amps per channel/12 Amps total. Increases the load capability and extend the signal of the universal RGB controllers. Required if exceeding the maximum load capability of any universal RGB controller. 5VDC 12VDC 18VDC 24VDC operation.

  • Function: Amplify RGB Signals using RWM
  • Supply voltage: DC5V, 12V, 18V, 24V
  • Output channels: 3 channels
  • Max load current: 4 Amps/channel (12 Amps total)
  • Max output power: 60 watt at 5V, 144 watt at 12V, 216 watt at 18V, 288 watt at 24V
  • Static power consumption: lower than 1 watt
  • Connection mode: common anode
  • Working temperature: -20 ~ +60°C

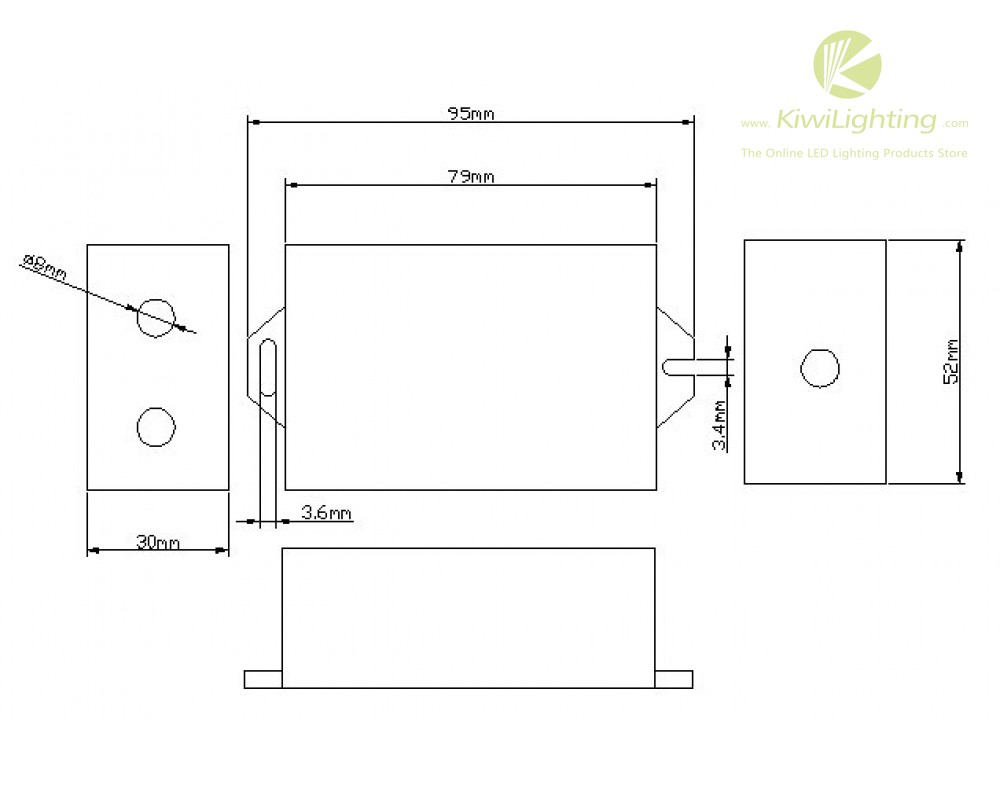

  • Product dimensions: 95*52*30mm
  • Package size: 160*95*51mm
  • Net weight: 195g
  • Gross weight: 210g
  • Compatible with LED controllers for RGB SMD Led Strips

Direction for Use

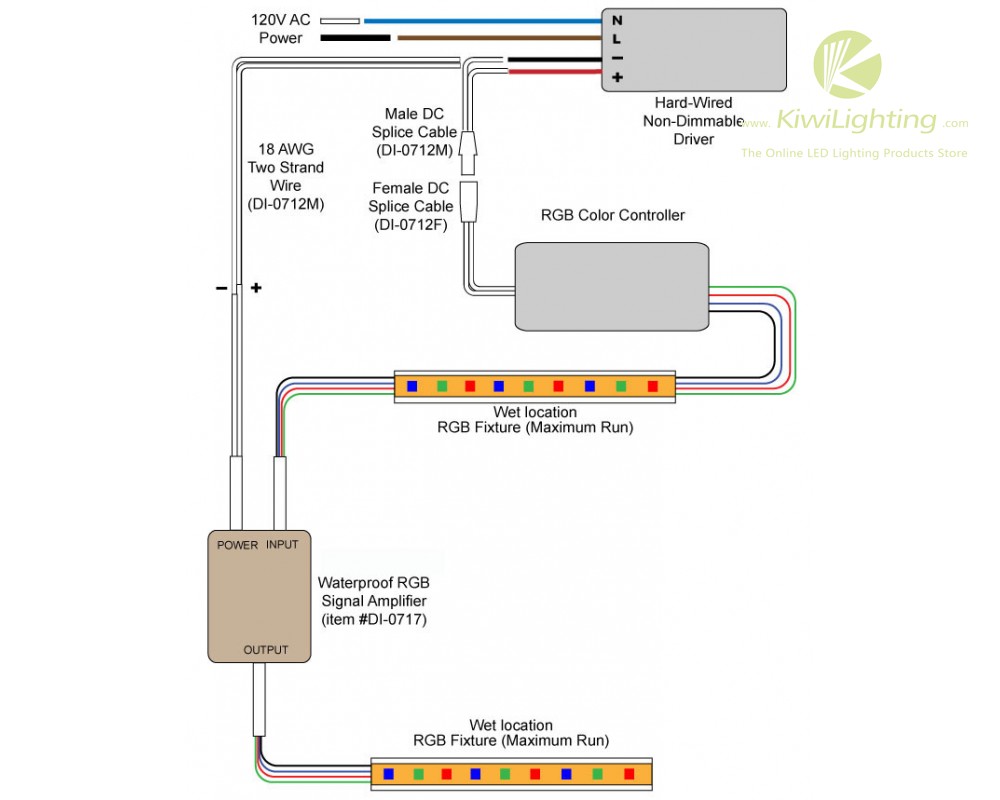

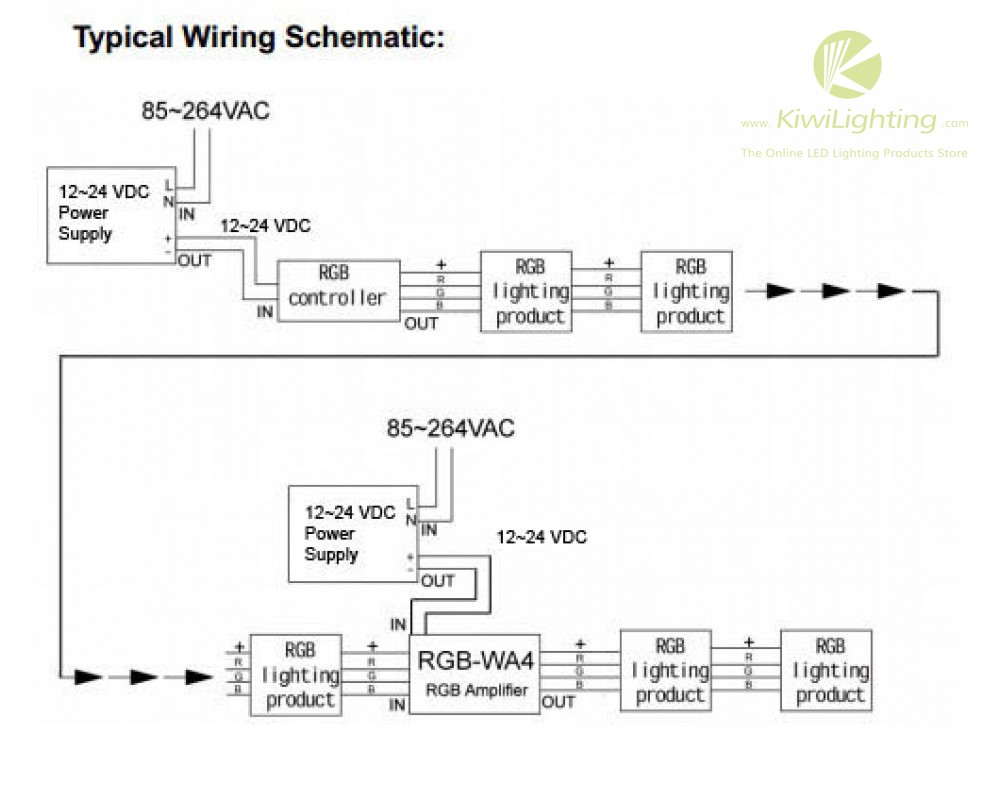

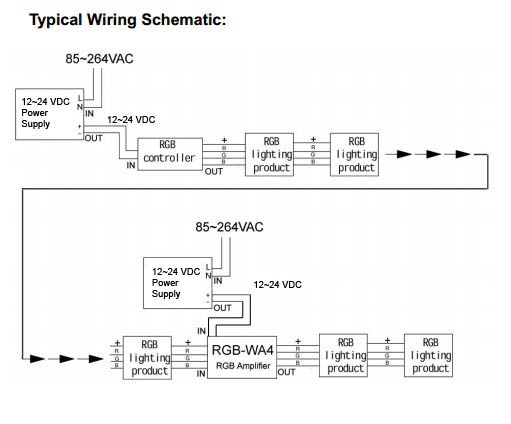

According to the screen prompts of RGB amplifier on the panel, connect the in/out signal wire by order, ensure short circut can not occur between wire. then connect power wire for RGB amplifier.


waterproof-rgb-signal-amplifier-by-ap-wf-diagram-3 waterproof-rgb-signal-amplifier-by-ap-wf-diagram-1 waterproof-rgb-signal-amplifier-by-ap-wf-diagram-2

Net Weight(g) 195
IP Rating IP68
Output Current(mA) 4,000
Operating Temperature -20°C ~ +60°C
Dimension 95*52*30mm
Output Channels 3 Channels
Connection Mode Common Anode
