Details

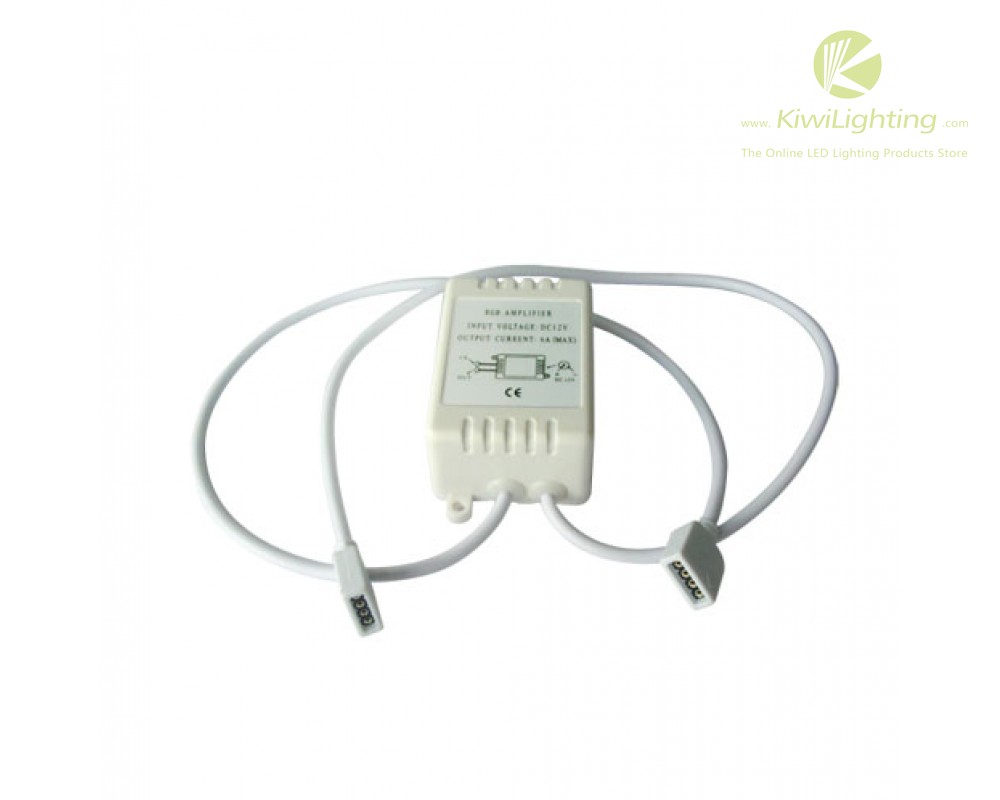

RGB LED Signal Amplifier for 5050-SMD-RGB-LED DC-12V 6A
RGB LED Signal Amplifier can adjust to all the voltage-controlLED LED controller we have, it could accept PWM (Pulse Width Module), Each one RGB amplifier can be added, the connecting number of LED will up to more than twice.
- Input Voltage: DC 12V
- Output Current: 6A (MAX)
- Cable Length: 180mm
- Connecting Mode: Common Anode, Common Cathode
- Compatible with 5050 SMD RGB LEDs
- Product Size: 50*35*20mm
Specifications
SKU | BY-AP-S1 |
---|---|
Net Weight(g) | 40 |
Input Voltage | DC 12V |
Operating Temperature | -20°C ~ +65°C |
Dimension | 50*35*20mm |
