RGB LED Sync Controller 3 Channels 8A/Ch DC12V-24V with Touch Panel RF Control

SKU:BY-CON-SZ100A (In stock)

RGB LED Sync Controller
Output 3 channels 8A/Ch
DC 12V-24V
Touch Panel RF Control


RGB LED Sync Controller 3 Channels 8A/Ch DC12V-24V With Touch Panel RF Control


Download User Guide

Product Description:

RF touch controller adopts the advanced micro control unit, it is used for controlling a variety of lamp whose source of light is LED. For instance, point source of light, flexible light strip, wall washer lamp, glass curtain wall light and so on; it has many advantages such as touch remote control, easy connection and simplicity to use. Meanwhile, you can adjust brightness, static color choices and various dynamic changes in lighting effects through wireless touch remote control. And according to the actual need of customers, it can carry out jumpy changing, gradual changing, stroboflash and other effects of change.
LED RF touch controller



  • Working temperature -20-60℃
  • Supply voltage DC5V,12V~24V
  • 0utput 3 channels
  • Connecting mode common anode
  • External dimension L91*W88*H24 mm
  • Packing size L106*W106*H66 mm
  • Net weight 270g
  • Gross weight 300g
  • Output gray 256 levels (RGB each)
  • Output current <8A(each channel)
  • Output power 12V:<288W, 24V:<576W
  • Frequency of RF remote control 433.9MHz

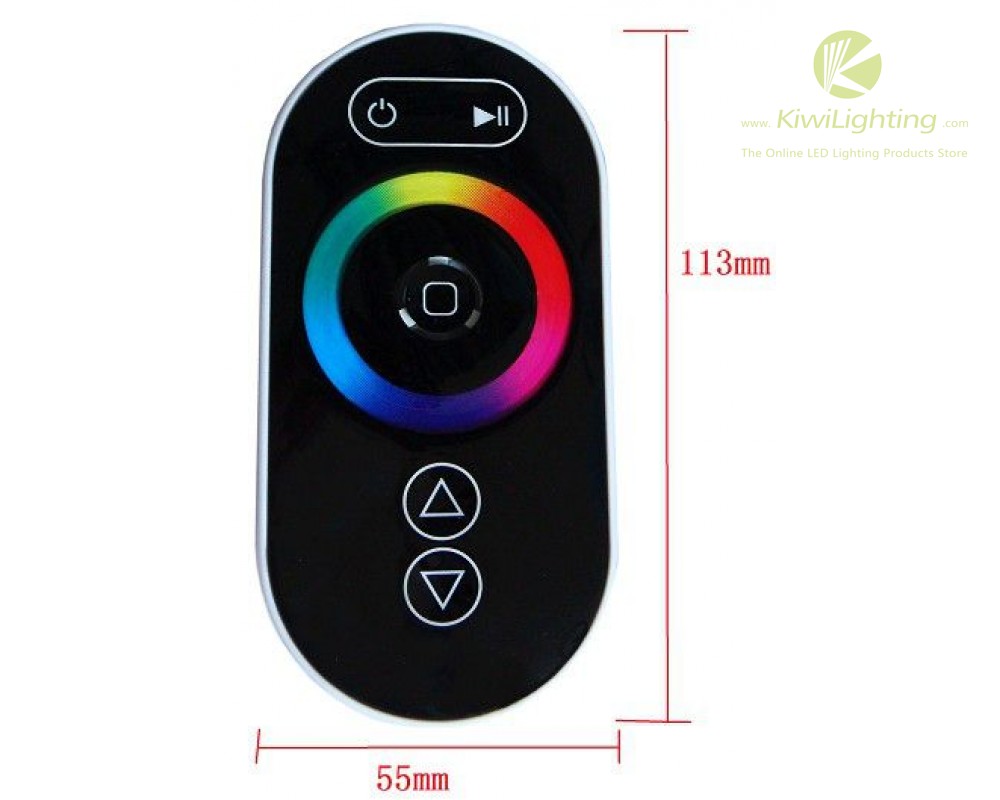

External Dimension

LED RF touch controller

LED RF touch controller


Interface Specifications

LED RF touch controller


Direction for use

This product use RF touch control, with one color ring and 5 function buttons.
LED RF touch controller

The function of each button as below:

Name of key Instruction Remarks
ON/OFF ON or OFF in any time
Pause Pause or Continue
Mode The mode will go to next, when you touch the key each time 21 modes in total.
Speed/Brightness + The Speed/Brightness will add, when you touch the key each time Speed for dynamic modes, Brightness for static modes.
Speed/Brightness - The Speed/Brightness will subtract, when you touch the key each time Speed for dynamic modes, Brightness for static modes.
Color Ring Touch any color which you want

9 modes in total as below:

No Patterns Remarks
1 Static worm white Brightness is adjustable, speed is unadjustable
2 Static cool white
3 White breath Speed is adjustable, brightness is unadjustable
4 Seven-color jumpy changing
5 Seven-color smooth
6 Seven-color fade
7 R/B crossfade
8 B/G crossfade
9 G/R cross fade

Typical Applications

    • Application Circuit 1:

LED RF touch controller

    • Application Circuit 2: (Synchronization function with network Line )

LED RF touch controller



  • 1. Supply voltage of this product is DC12V~24V, never connect to others or AC220V.
  • 2. Lead wire should be connected correctly according to grade that connecting diagram offers.
  • 3. This product is not to overload;
  • 4. Warranty of this product is one year, but exclude the artificial situation of damaged or overload working.

Common Problems

Problems Possible cause Solution
1. Lamp does not light after power Power cord is not properly connected, or there is not output switching power supply Connect the power cord properly or replay the power
Lamp power cord is not connected or short circuit Connected lighting power cord
2. After connecting some of the load the controller does not work The connected load is too large,so that it has burned in some of the components of the controller Replace parts of components or replace the controller

Packing List

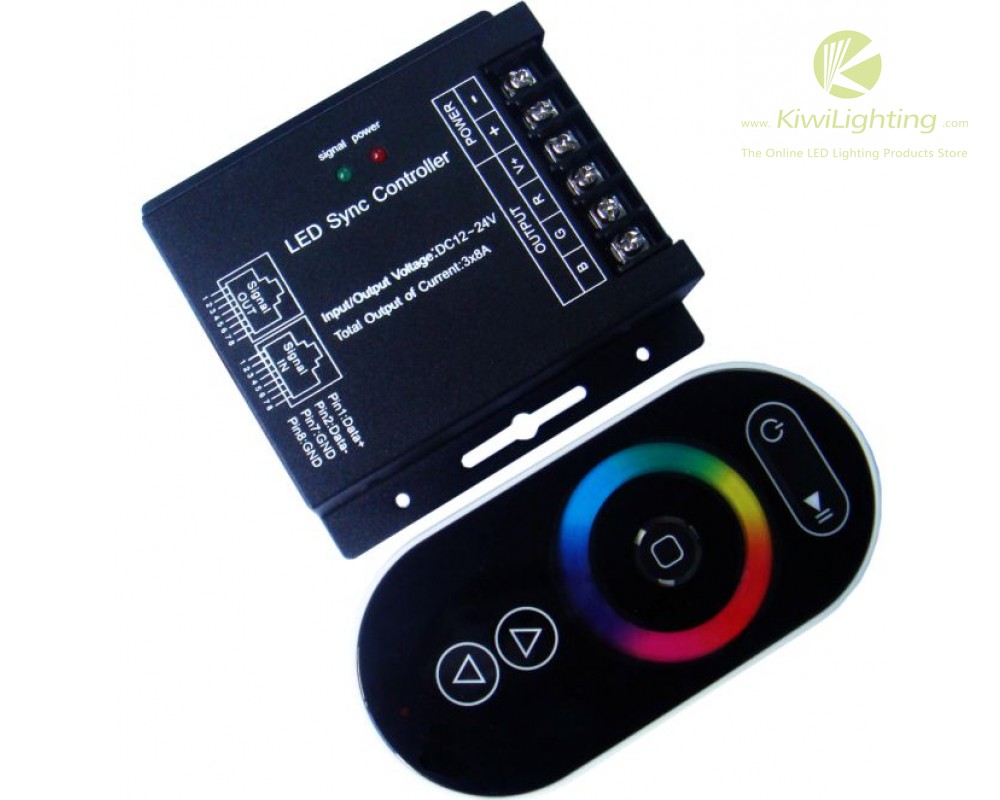

  • 1 x LED Sync Controller
  • 1 x Touch Remote Control
Net Weight(g) 319
Output Current(mA) 8,000
Input Voltage 12-24Vdc
Operating Temperature -20°C ~ +60°C
Dimension L91*W88*H24mm
Output Channels 3 Channels
Connection Mode Common Anode
