Double Row 3528/5050 SMD LED Strip Light

View Double Row 3528/5050 LED Strip Lights configurable page(with all options on one page, easier to find your desired strips)

Kiwi Lighting Double Row 3528/5050 LED strip lights are very Flexible LED strips: bendable, cuttable, waterproof, thus they can be easily installed almost anywhere. The constant glow light of Natural White, Warm White, Red, Green, Blue, Yellow, Orange, Pink, colors makes them good decoration lights for audio/video system, cars, trucks, motorcycles, gardening, fish-tanks, wardrobes, ATV, computers etc.

Specification Table

5M Double Row 3528 SMD LED Strip Specifications

• Color: White or Warm White
• View angle:160°
• Working Voltage: 12VDC
• LED Quantity: 1200leds/5 Meter, 240led/M
• Protection Rate IP65(waterproof) or non- waterproof
• Luminous Flux: 1080-1200 Lumens/5Meter
• Size: L500cm (5M) x W1.6cm x T0.25cm

5M Double Row 5050 LED Strip Specification

• Technical Specification:
• Emitted Color: White or Warm White
• Size. : W2 x L500(cm) Thickness : 0.25(cm)
• Lens Q’ty : 120pcs/M 600LED/5Meter
• Viewing Angle : 160DegC
• Working Voltage : 12V
• Intensity Luminous: 1890 Lm
• Protection Rate IP65(waterproof) or non- waterproof

Specifications

• Emitted Color: Natural White, Warm White( contact us for Red, Green, Blue, Yellow, Orange, Pink colors)
• Strip length: 100cm, 500cm,(or contact us for customizing)
• Lenghth per LED unit: 120 LEDs/100cm, 240 LEDs/100cm (6 LEDs make an cuttable LED unit)
• LED Amount: 120/240(100cm), 600/1200(500cm)
• Current: 20/3mA per LED(800mA, 8000mA, )
• Input Voltage: DC 12V, DC 24V(please contact us for customizing 24V LED strips)
• LED package: 5.0mm*5.0mm(5050 SMD LED), 3.5mm*2.8mm(3528 SMD LED)
• Viewing angle: 160 degrees
• Luminous Flux: 1080-1200 Lumens/5Meter(5M 3528), 1890 Lm(5M 5050)
• IP Rating: IP65/IPX0(non-waterproof)
• Strip Dimension: (width*height) 3528 16mm * 2.5mm, 5050 20mm*2.5mm
• Life span: 50000 hours
• Working Tempreture: -20°C to 50°C

Applications

• Architectural decorative lighting
• Archway, canopy & bridge edge lighting
• Amusement park, theater & aircraft cabin mood lighting
• Emergency hallway lighting Auditorium walkway lighting .
• Stairway accent lighting
• Concealed lighting
• Backlighting for signage letters
• Cove lighting
• light up colorful home life ,DIY household lights for hallways, stairs, trails ,windows,
• Light up colorful life hotels decoration use,Theaters, clubs, shopping malls, festivals and performances
• Architectural decorative lighting,Archway, canopy and bridge edge lighting, Security lighting and Emergency,
• Extensively applied in Backlighting for signage letters, concealed lighting and advertisement sign lighting
• Applicable for automobile & Airplane model decoration, contour lighting or border.

Features

• Very Flexible: bendable, cuttable(can be cut into 6-LED segments)
• Low power consumption,Super-bright but running with low temperature
• All the light spread and completely smooth,luminous very even
• Self-adhesive back with Adhesive tape for secure and easy application
• Dc-plug already soldered on the connector, ready to be plugged in and working
• Easy installation & maintenance free
• Flexible ribbon for curving around bends
• Long life span durable strips
• Ultra-bright 3528/5050 SMD LEDs, high intensity and reliability
• Constant glow lighting
• Look great with audio/video system
• Good decoration lights for for car, truck, motorcycle, garden decoration, ATV, Computer etc.

Product Images

cut-and-connect-power-wire-3528-LED-strip

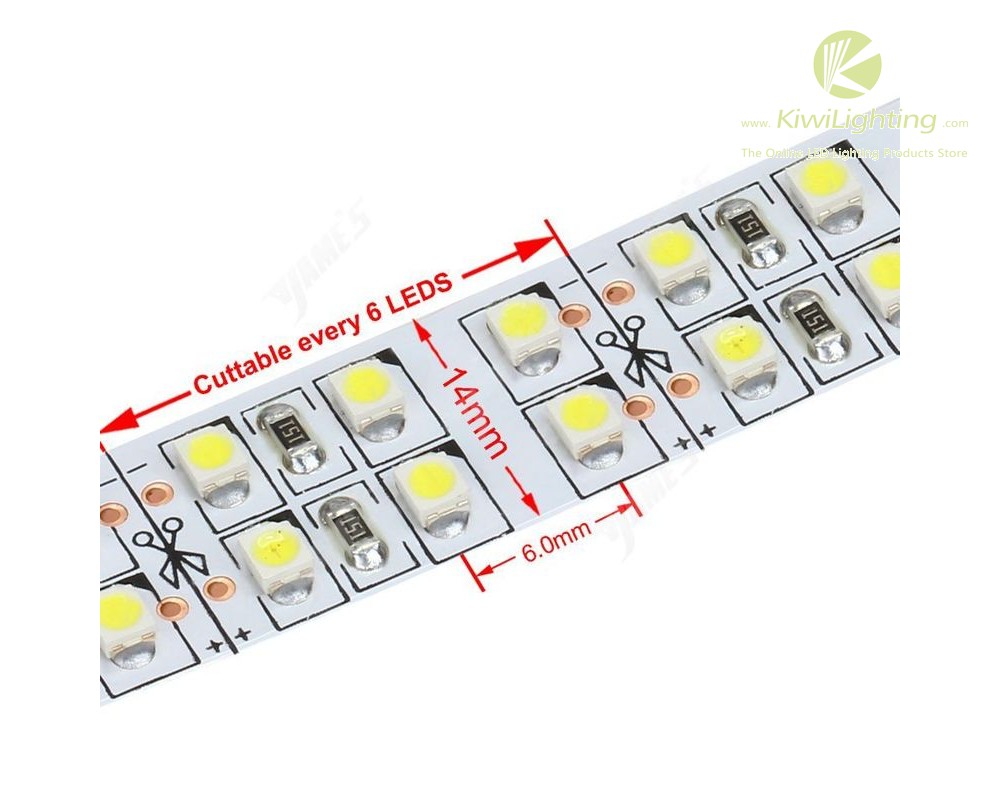

Cut-line-of-every-6-LEDs-Double-Row-LED-Strip-Lights

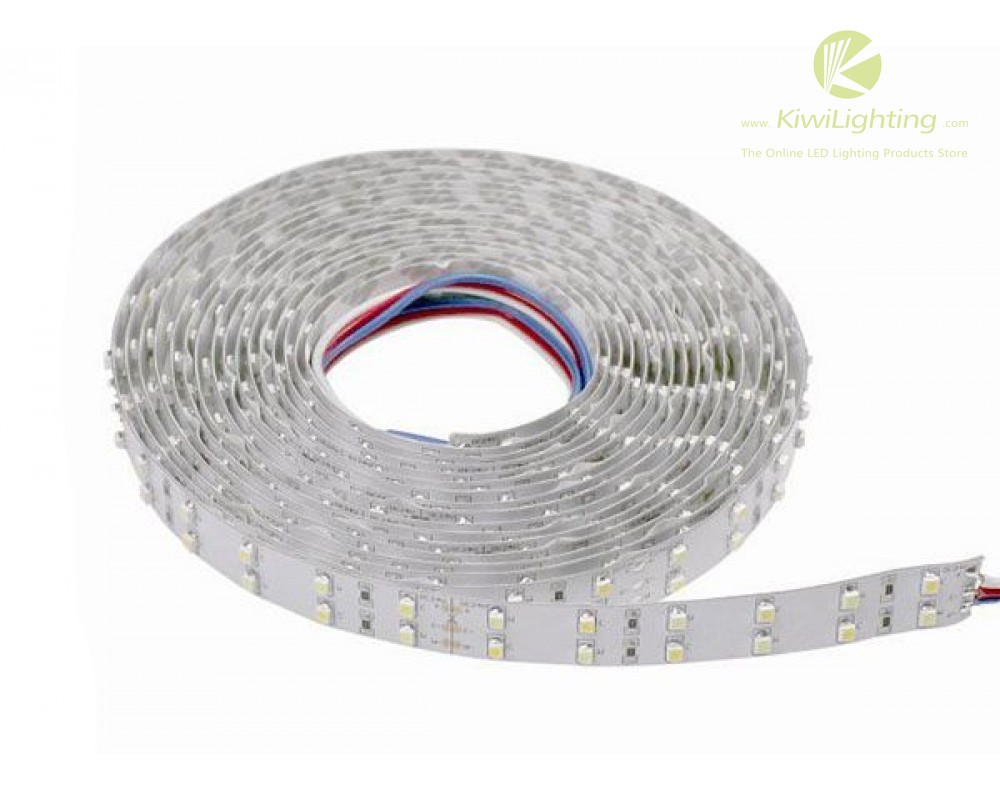

Double-Row-3528-LED-Strip-Lights-120-LEDs

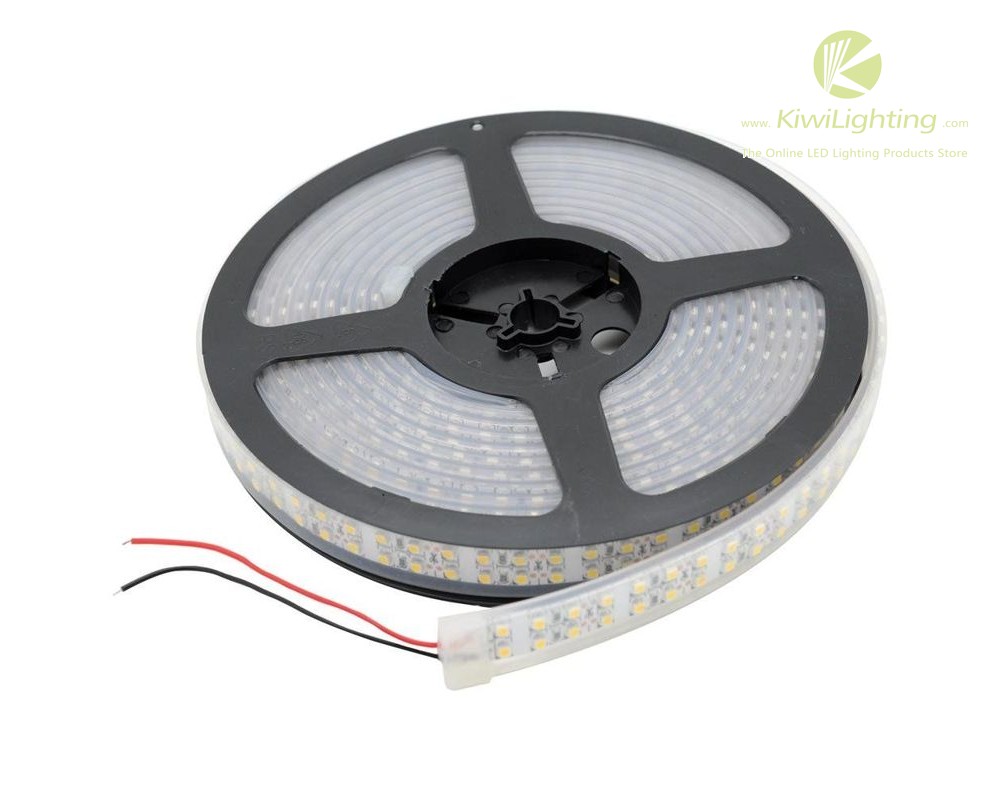

5m-warm-white-Double-Row-3528-LED-Strip-Lights

5M-white-Double-Row-LED-strip

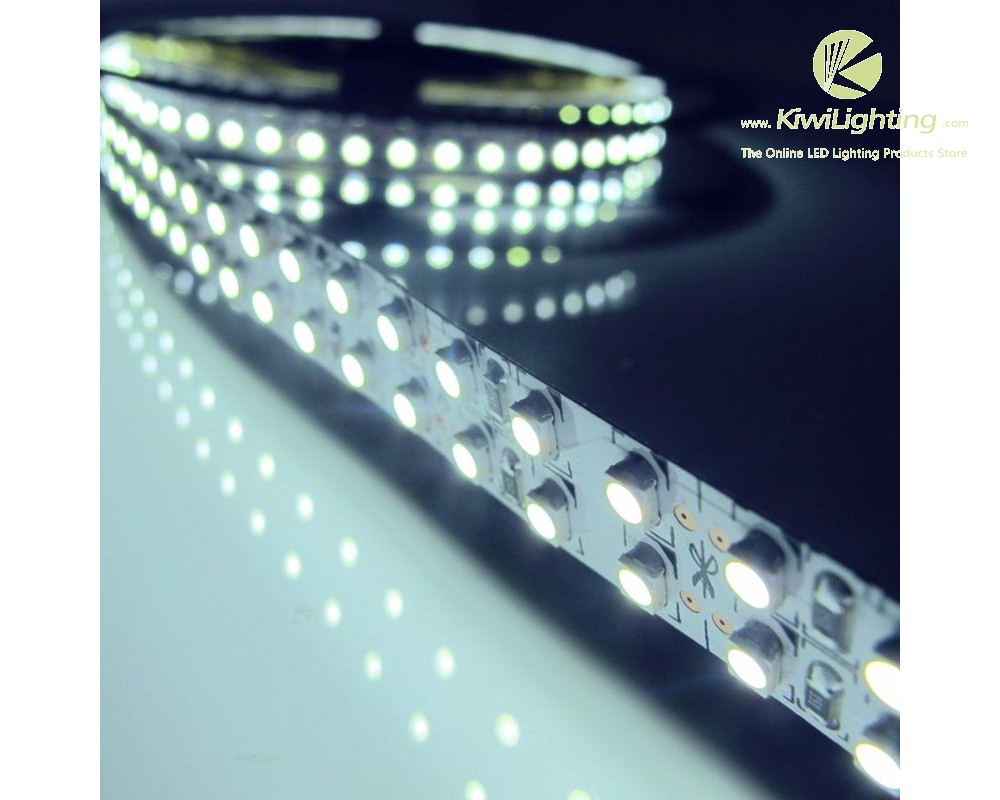

5m-white-5050-SMD-LED-Double-Row-LED-Strip-Lights

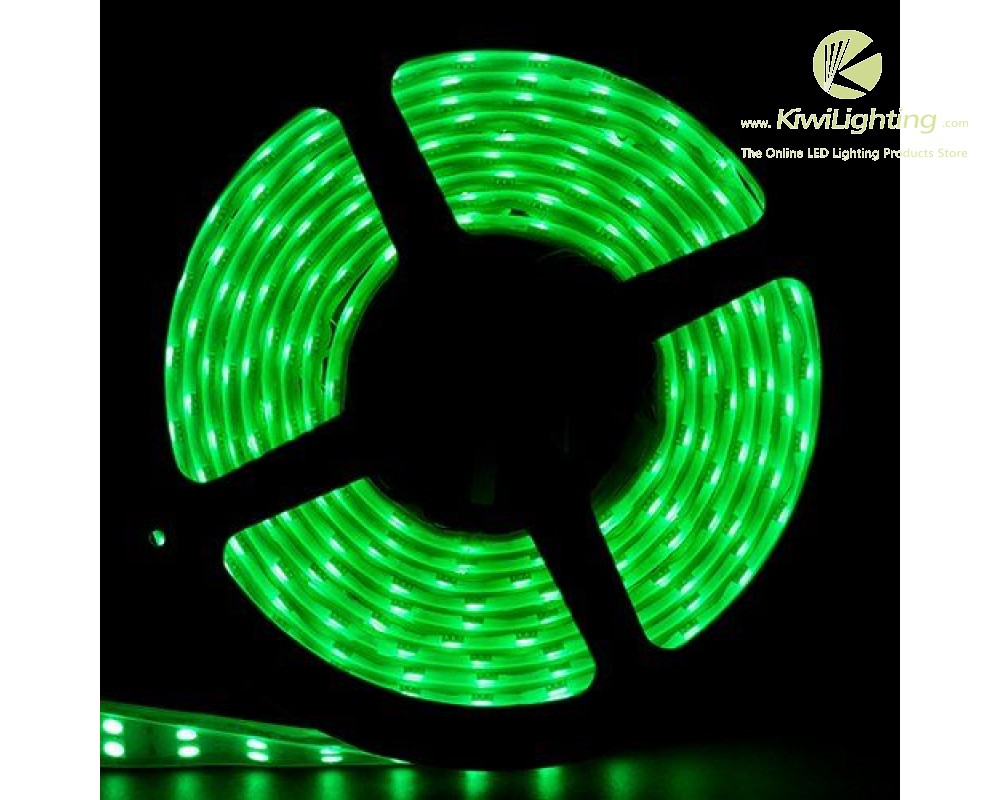

5m-green-Double-Row-3528-LED-Strip-Lights

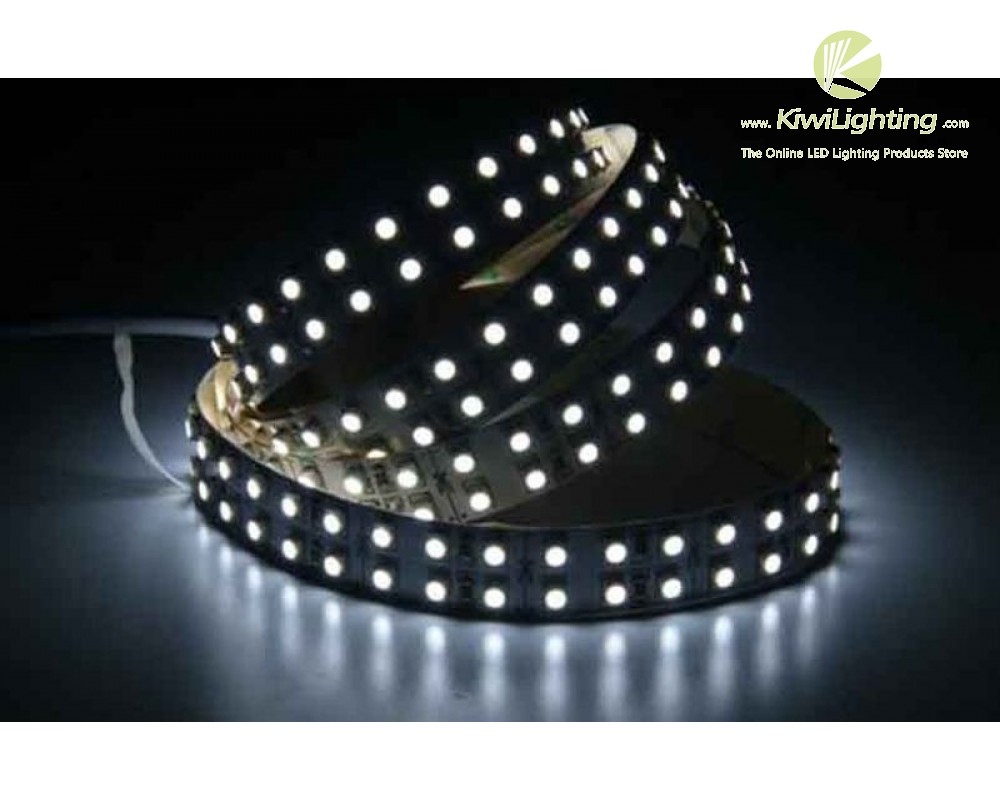

warm-white-Double-Row-3528-LED-Strip-Lights

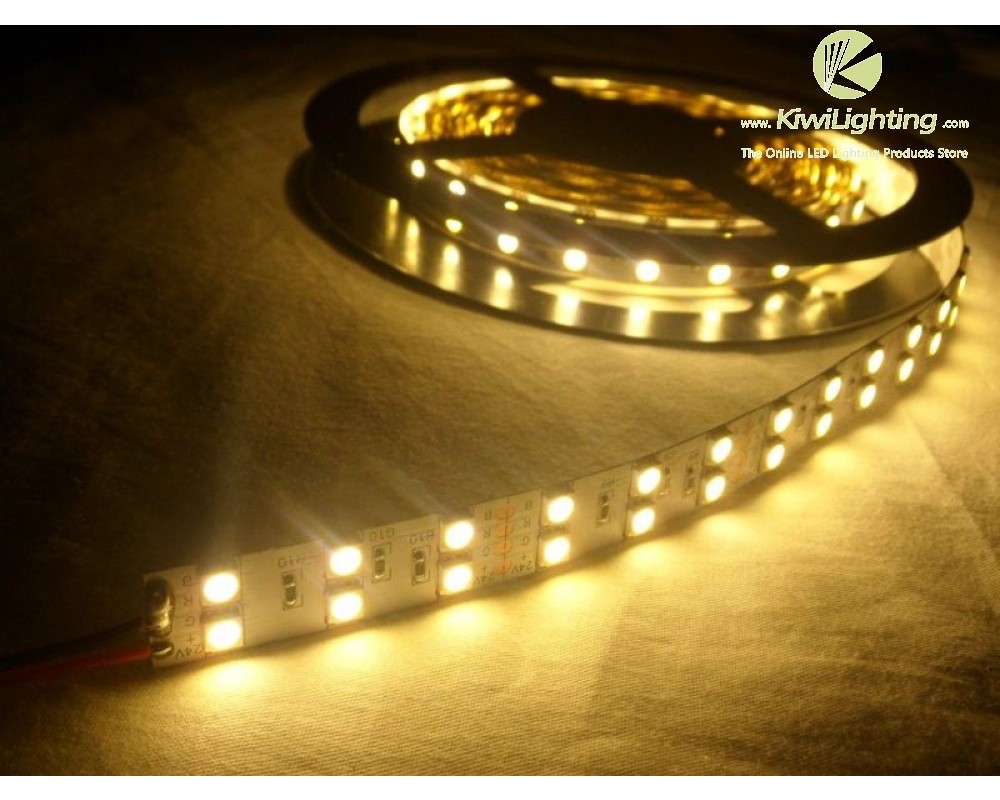

yellow-Double-Row-3528-LED-Strip-Lights

LED-strip-for-bedroom-decoration

LED-strips-used-for-studio-decoration

LED-strips-light-a-computer-case

LED-strips-used-for-car-decoration

lED-strips-used-for-fish-tank-decoration

various-applications-of-LED-strips
