30W Cree XP-E LED Emitter

SKU:BY-XPE-30W (In stock)

Cree XP-E COB LED,
10 LEDs: 30 watt,
465lm-3900lm,
Colors: White, Blue, Royal blue, Yellow, Red, Green,
VF: 24-36V,
IF: 1000mA,
PCB demension: 55*40*2mm,
Price From: $17.99
+

* Required Fields

Price From: $17.99
Details

30W Cree XP-E LED Emitter
Power: 30 watt,
Lumen: 465lm-3900lm,
Colors: White, Blue, Royal blue, Yellow, Red, Green,
VF: 24-36V,
IF: 1000mA,
PCB demension: 55*40*2mm,
LED amount: 10 pcs,

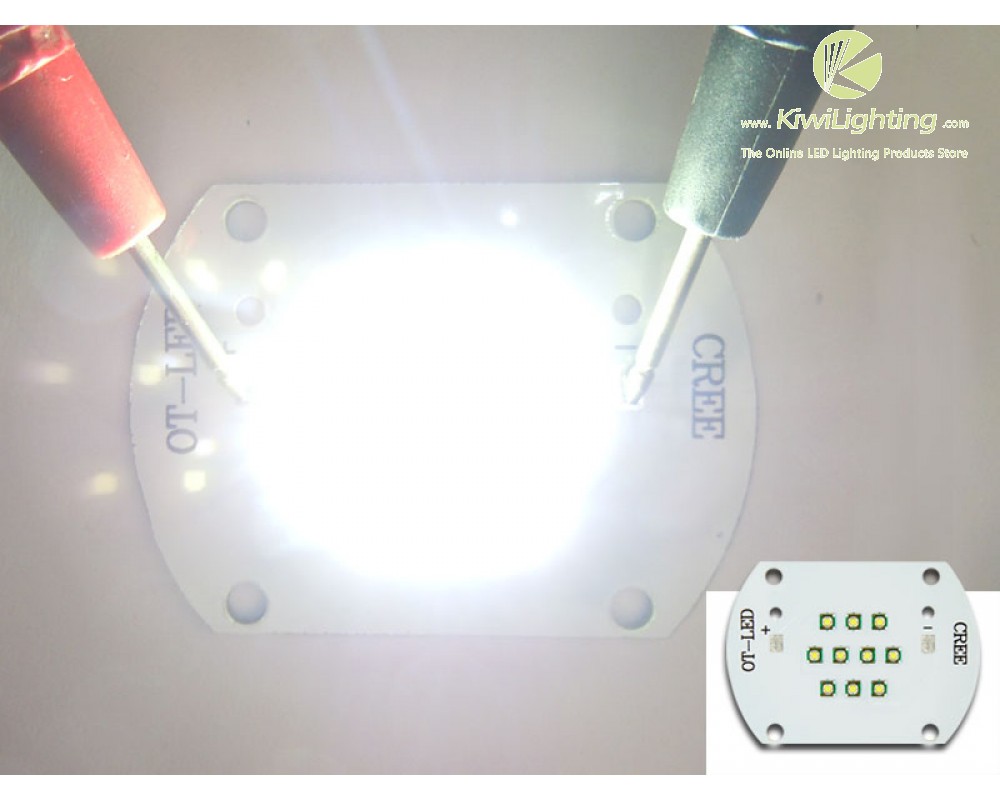

White
CCT: 6000-6500K,
10 LEDs, 30W, 3900lm,
30-36V 1000mA,
PCB demension: 55*40*2mm

Warm white
CCT: 3000-3200K,
10 LEDs, 30W, 3000-3500lm,
VF: 30-36V,IF 1000mA,
PCB demension: 55*40*2mm,

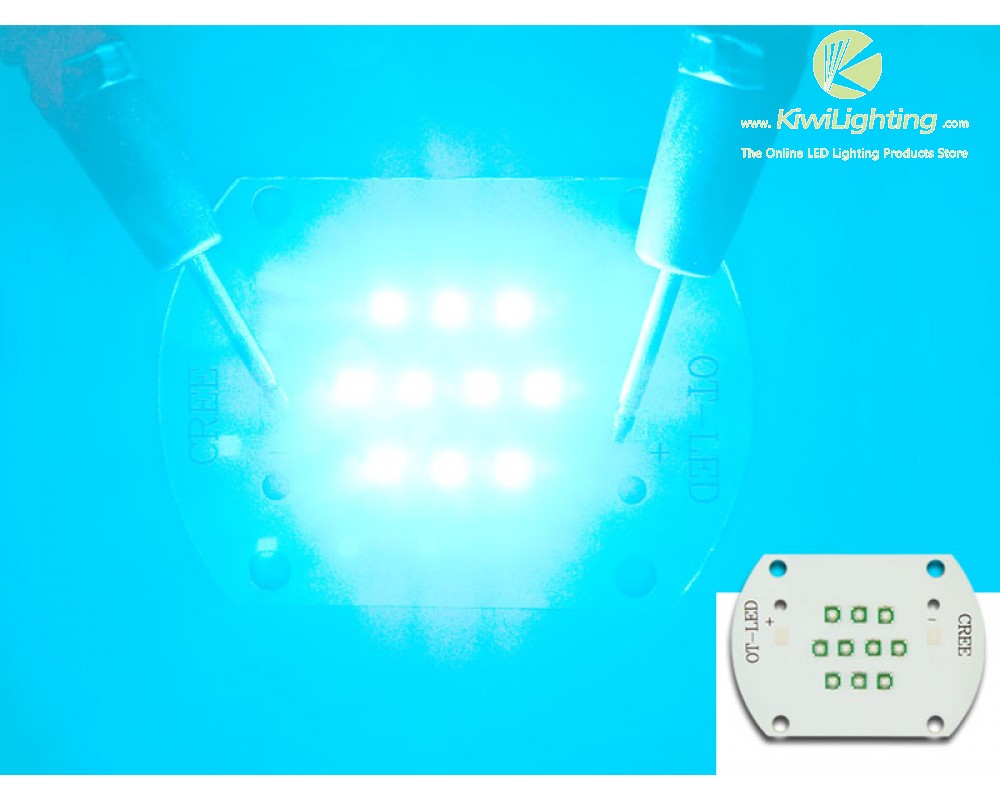

Blue
wave length: 465-470nm,
10 LEDs, 30W, 1056lm,
30-36V, 1000mA,
PCB demension: 55*40*2mm,

Royal blue
wave length: 450-455nm,
10 LEDs, 30W, 1056lm,
30-36V, 1000mA,
PCB demension: 55*40*2mm,

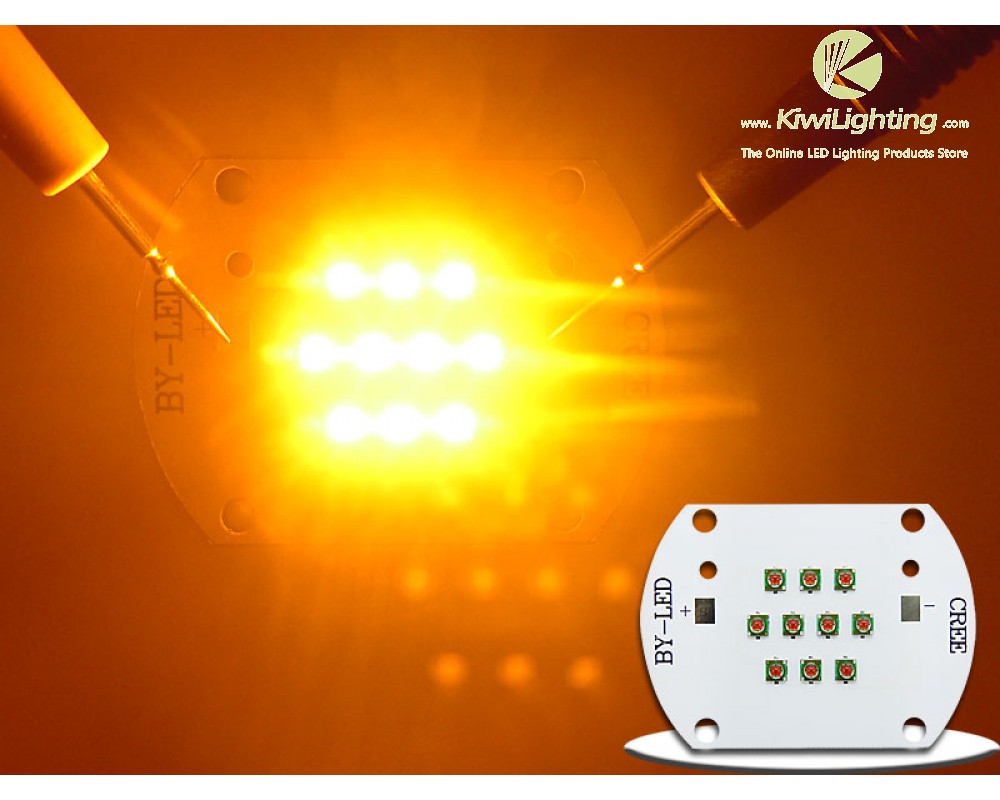

Yellow
wave length: 590nm,
10 LEDs, 30W, 568lm,
24-26V, 1000mA,
PCB demension: 55*40*2mm

Red
wave length: 620-630nm,
10 LEDs, 30W,
24-26V, 1000mA,
PCB demension: 55*40*2mm,

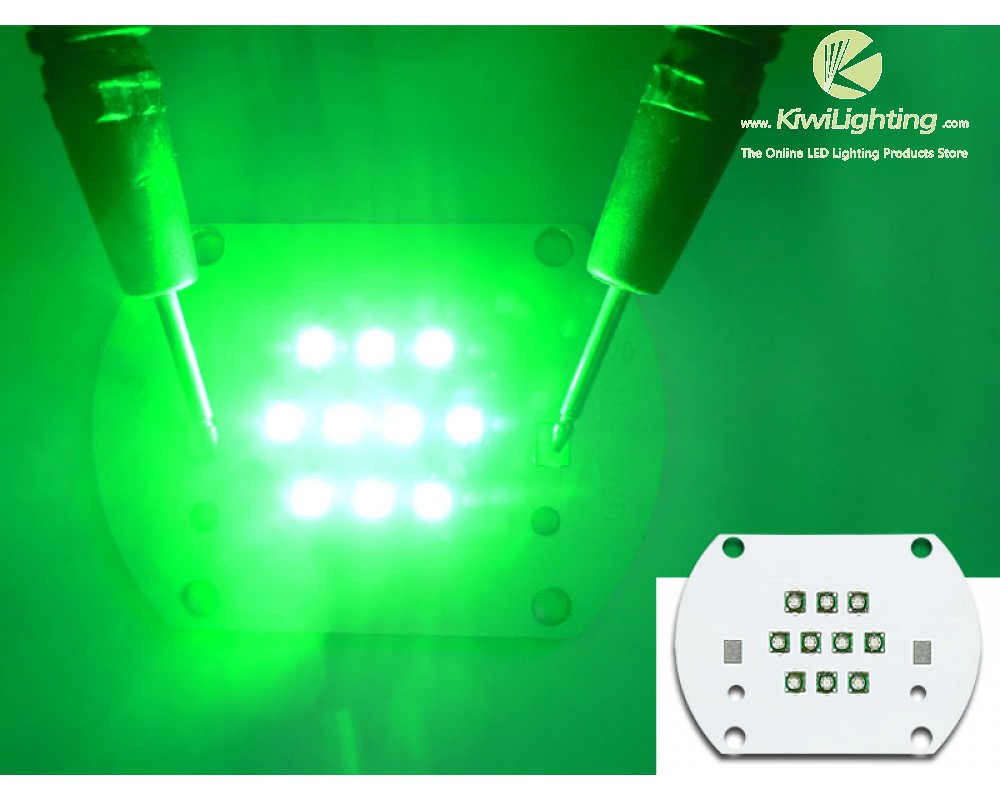

Green
wave length 520-535nm,
10 LEDs, 30W,
24-26V, 1000mA,
PCB demension: 55*40*2mm,


Cree XLamp XP-E LED Description

The XLamp XP-E LED combines the proven lighting-class performAnce and reliability of the XLamp XR-E LED in a package with 80% smAller footprint. This smAller package extends Cree’s award-winning LED performAnce into new LED lighting applications. New XLamp XP-E color LEDs provide up to 69 percent more flux than the existing XLamp XR color portfolio, with an 80 percent smAller footprint. XLamp XP-E reduces the space between LED die by 75%, compared to XLamp XR color LEDs.

Specifications
  • demension (mm x mm) 3.45 x 3.45
  • Product options White, Color
  • mAximum drive current (A) - White 1
  • mAximum power (W) - White 3.5
  • Light output - White Up to 291 lm @ 3.5 W
  • Typical forward voltage @ 350 mA (V) 3.1
  • Viewing angle (degrees) - White 115
  • Binning Standard (White), ANSI (White)
  • ThermAl resistance (°C/W) - White 9
  • Reflow-solderable Yes – JEDEC J-STD-020C-compatible
  • RoHS and REACH-compliant Yes
  • UL-recognized-component Yes - Level 4 Enclosure Consideration
Applications
  • Directional
  • Consumer Portable
  • High-End Portable
  • Architectural
  • Entertainment
  • Vehicle
Features
  • Available in white, outdoor white, 80-CRI, 85-CRI and 90-CRI white, royal blue, blue, green, amber, red & red-orange
  • mAximum drive current: up to 1 A
  • Low thermAl resistance: as low as 9 °C/W
  • mAximum junction temperature: 150 °C
  • Wide viewing angle: 115°‑130°
  • Unlimited floor life at ≤ 30 °C/85% RH
  • Reflow solderable ‑ JEDEC J‑STD‑020C compatible
  • Electrically neutral thermAl path
  • RoHS‑ and REACh‑compliant
  • UL‑recognized component (e349212)
download Cree XLamp XP-E LED datasheet
Specifications
SKU BY-XPE-30W
Net Weight(g) 30
DC Forward Current(mA) 1,000
Power Consumption(W) 30
Brand Cree
LED Amount(pcs) 10
Dimension 55*40*2mm
LED Package 3.45mm x 3.45mm
