White

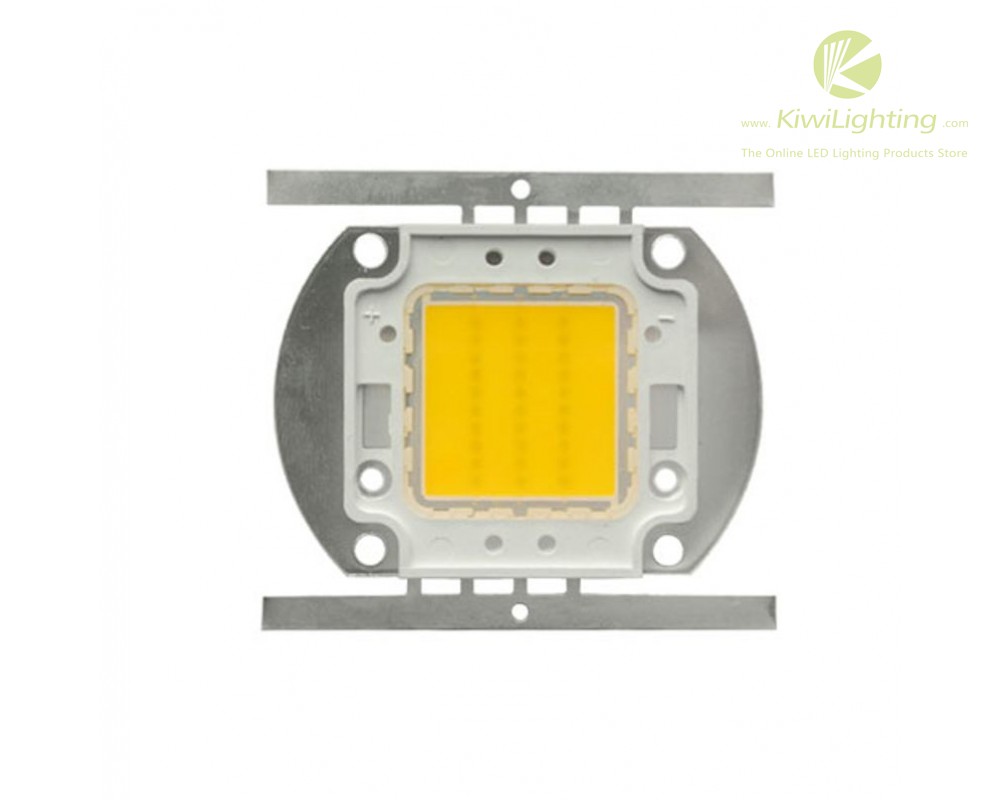

Color Temperature: 6000K - 7000K(White) 2700k-3500k(Warm white)9000-15000K(cool white)
Intensity Luminous (Iv): 1500LM-2400LM
DC Forward Voltage (VF): 30-36 Vdc
DC Forward Current (IF): 1000mA
Viewing Angle: 120 Degree
Red/Yellow/Orange
Intensity Luminous (Iv): 800 ~ 1500LM
DC Forward Voltage (VF): 20.0~ 24.0 Vdc
DC Forward Current (IF): 1200MA
Viewing Angle: 120 Degree

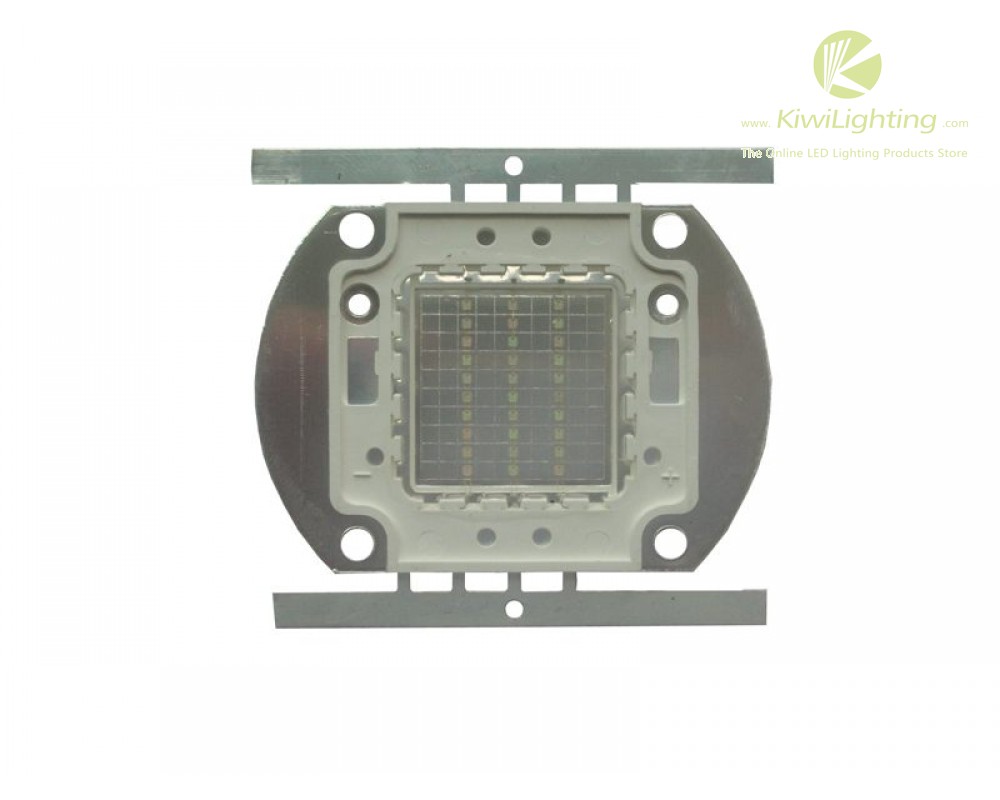

Blue/Green
DC Forward Voltage (VF): 30.0 ~ 36.0 Vdc
DC Forward Current (IF): 1000mA
Viewing Angle: 120 Degree
Intensity Luminous (Iv): 250 ~ 450LM(blue) 2000 ~ 2400LM(green)

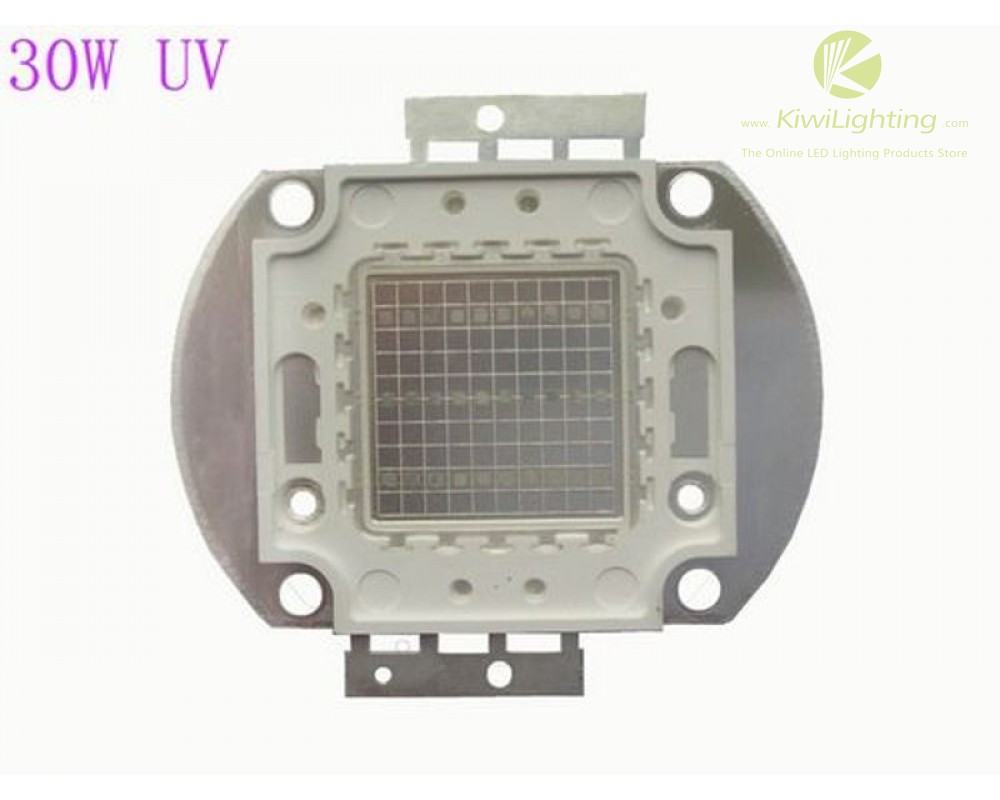

Ultraviolet 380-385nm/395-405nm
Wavelength: 395nm ~ 405nm
DC Forward Voltage (VF): 30.0 Vdc ~ 36.0 Vdc
DC Forward Current (IF): 1000mA
Viewing Angle: 120 Degree
Optical Radiation:3000 mW ~ 4000 mW

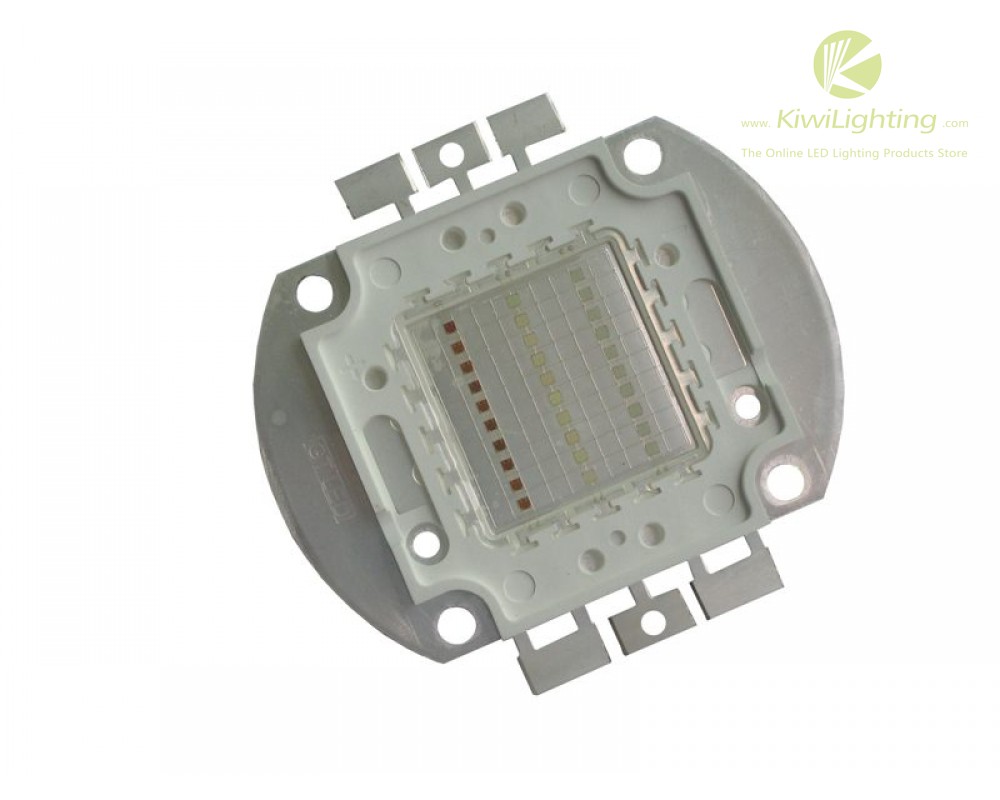

RGB
Viewing Angle: 120 Degree
DC Forward Voltage (vf): Red: 22-28V, Green: 30-36V, Blue: 30-36V
DC Forward Current (Id): 350-1000MA
Wavelength : Red: 620nm ~ 630nm, Green: 520nm ~ 530nm, Blue: 460nm ~ 470nm
Intensity Luminous (Iv): Red: 400-500LM, Green: 600-700LMLM, Blue: 150LM ~ 200LM
- Emitted Color: Infrared / IR
- Wavelength: 850nm
- DC Forward Voltage (VF): 14~17V
- DC Forward Current (IF): 1050mA
- Radiant Power: 2700mW
- Emitted Color: Infrared / IR
- Wavelength: 940nm
- DC Forward Voltage (VF): 14~17V
- DC Forward Current (IF): 1050mA
- Radiant Power: 2250mW
| SKU | BY-HP30OL |
|---|---|
| Net Weight(g) | 31 |
| Viewing Angle | 120° |
| DC Forward Current(mA) | 1,000 |
| Power Consumption(W) | 30 |
| LED Amount(pcs) | 30 |
-
20w high power LED oval-shape
20w high power LED, Optional colors: White Red Yellow Orange Blue Green UV, oval shape,
