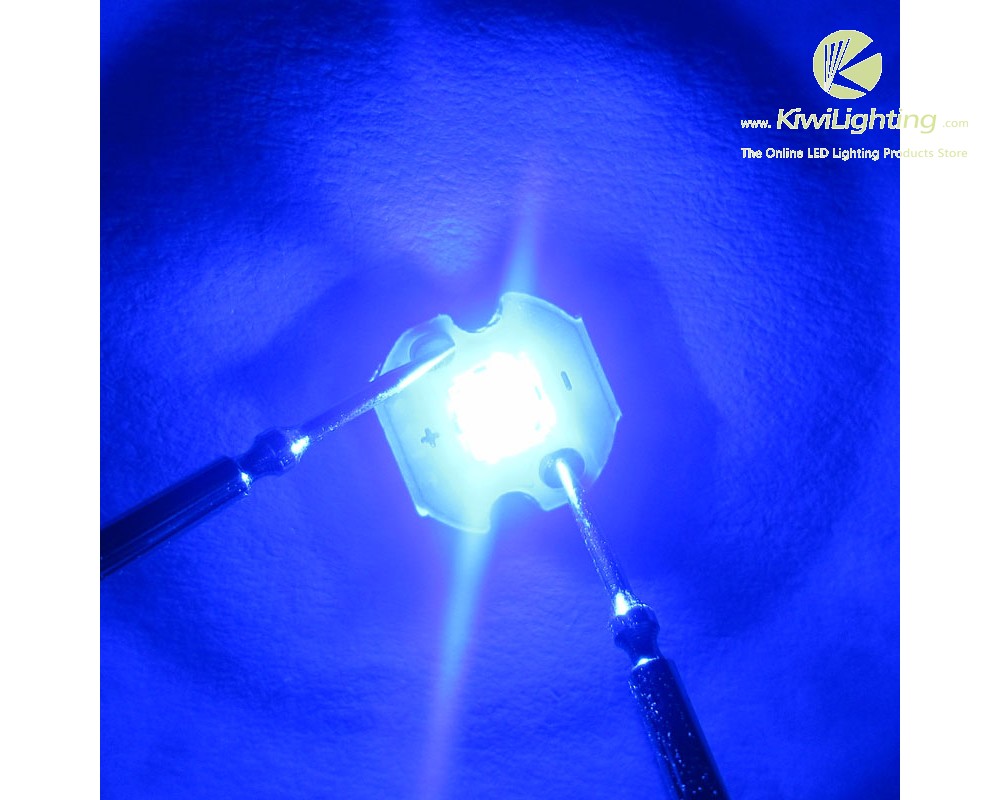

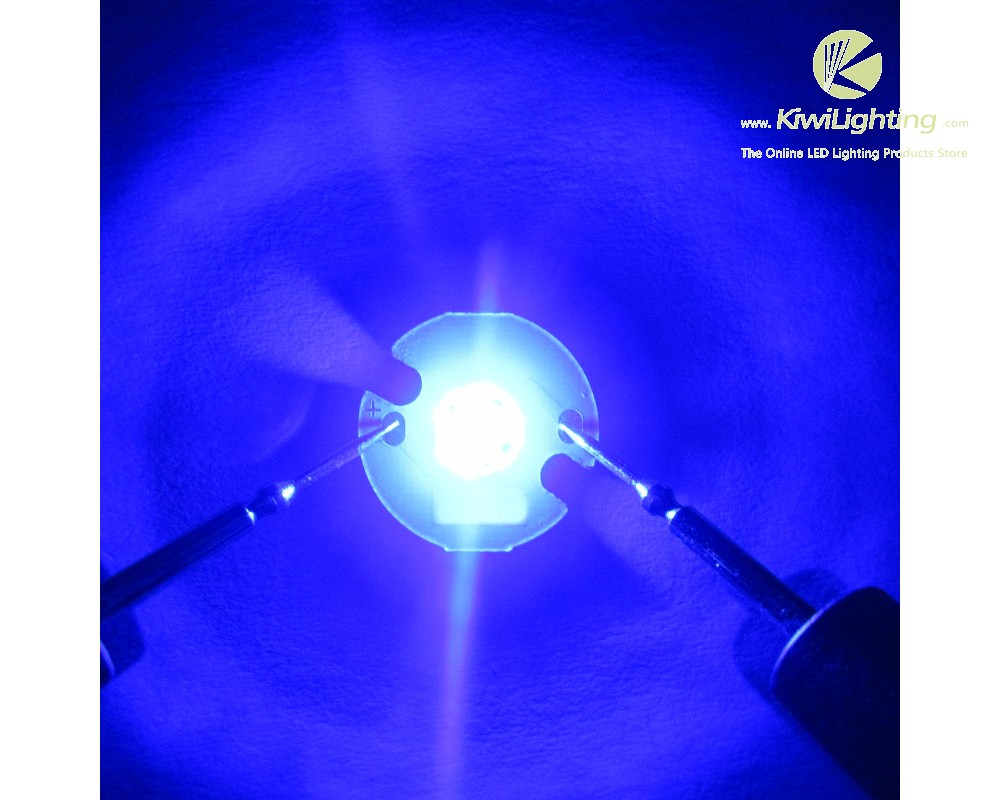

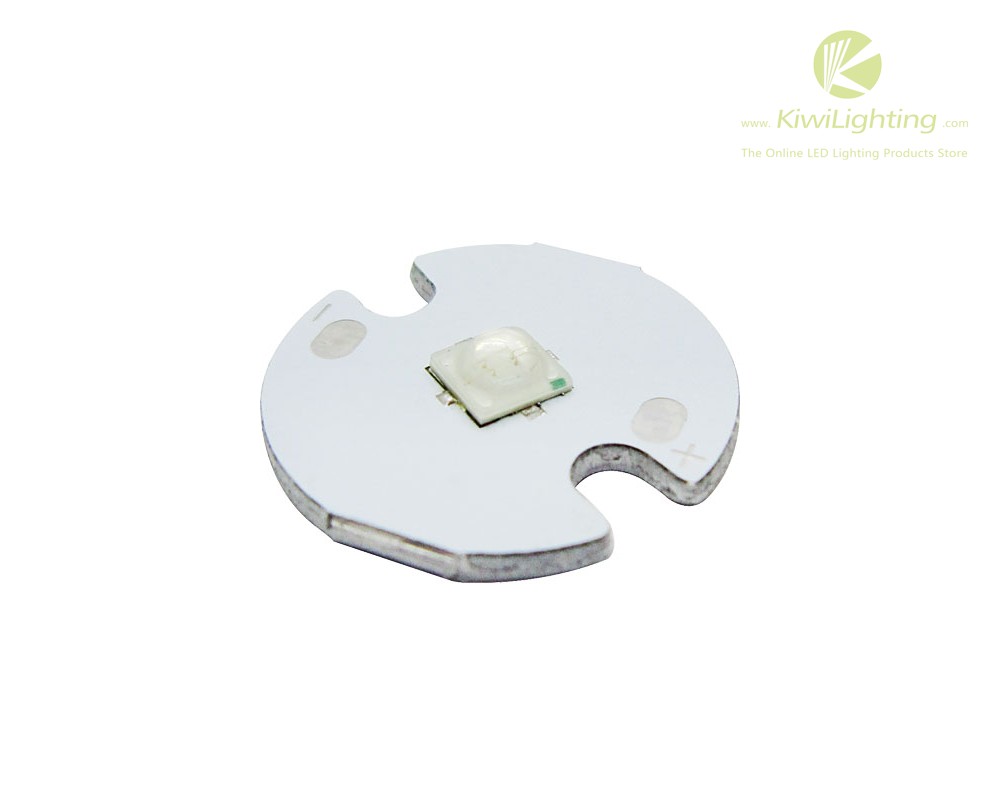

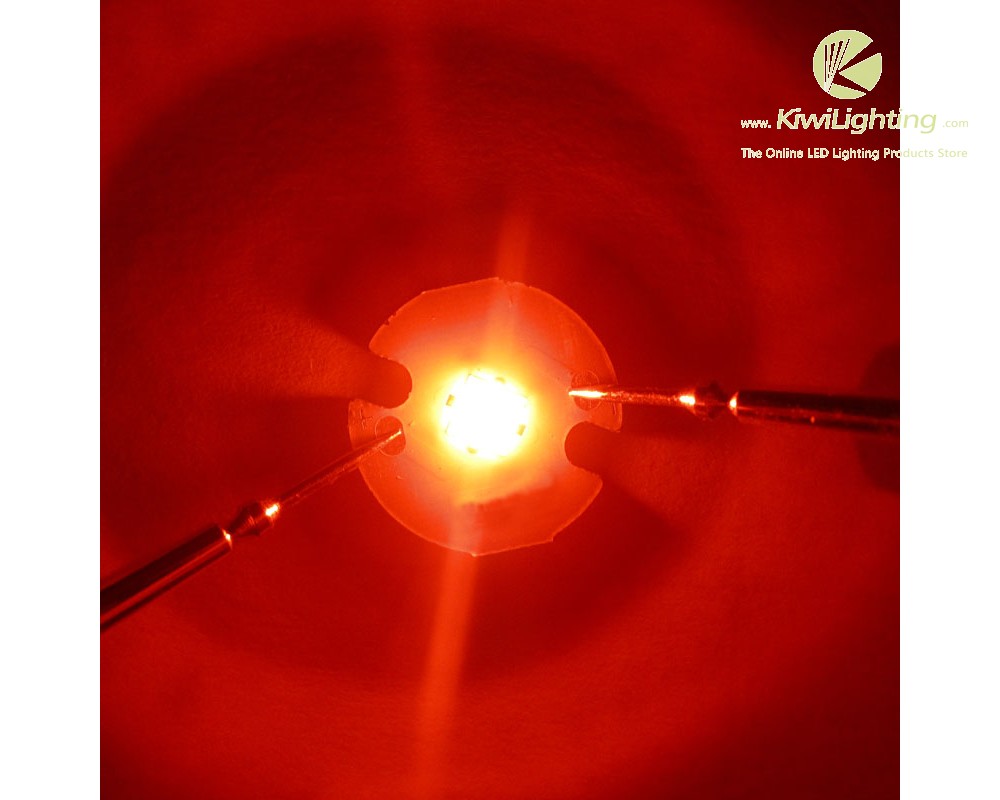

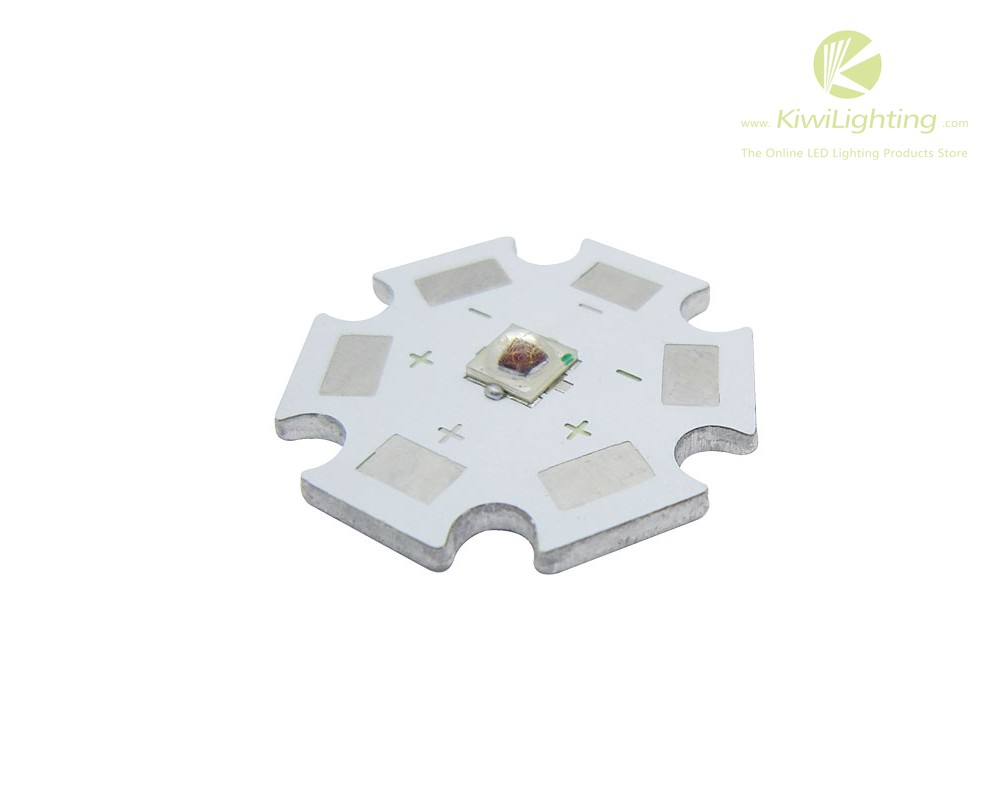

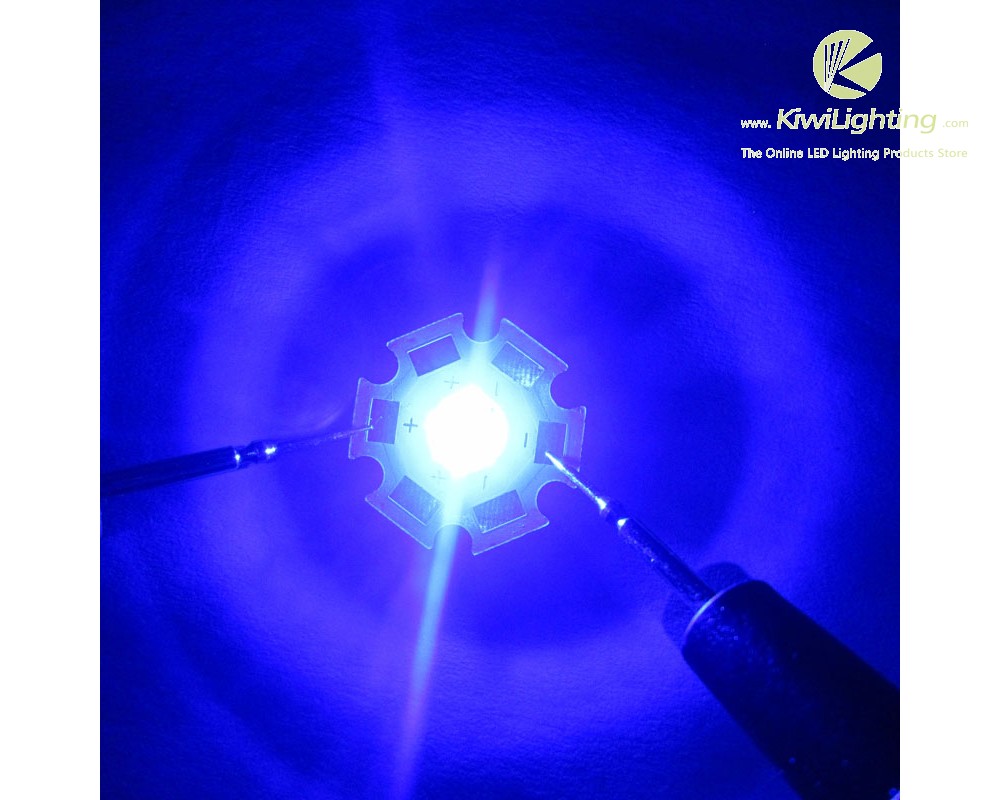

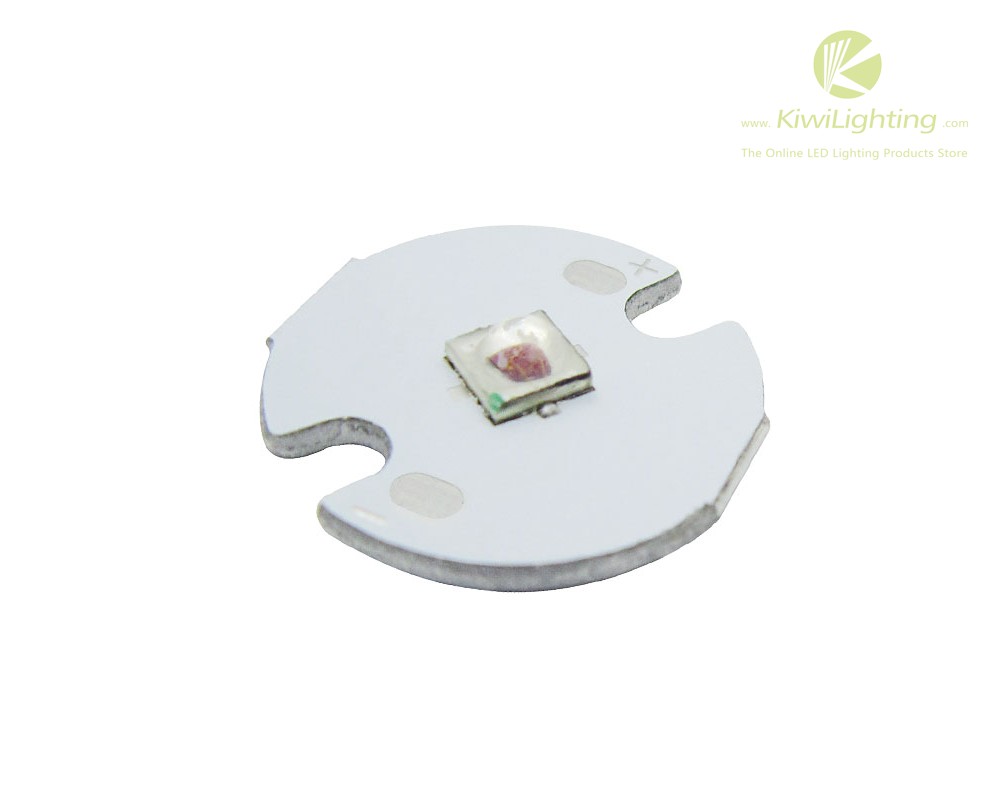

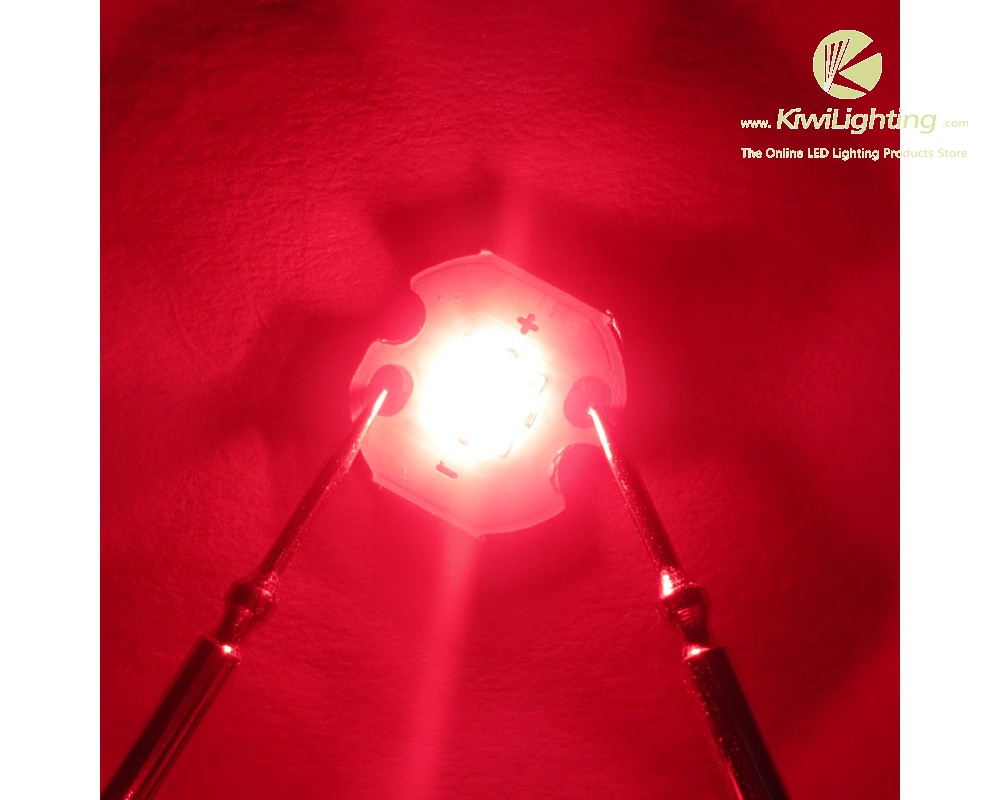

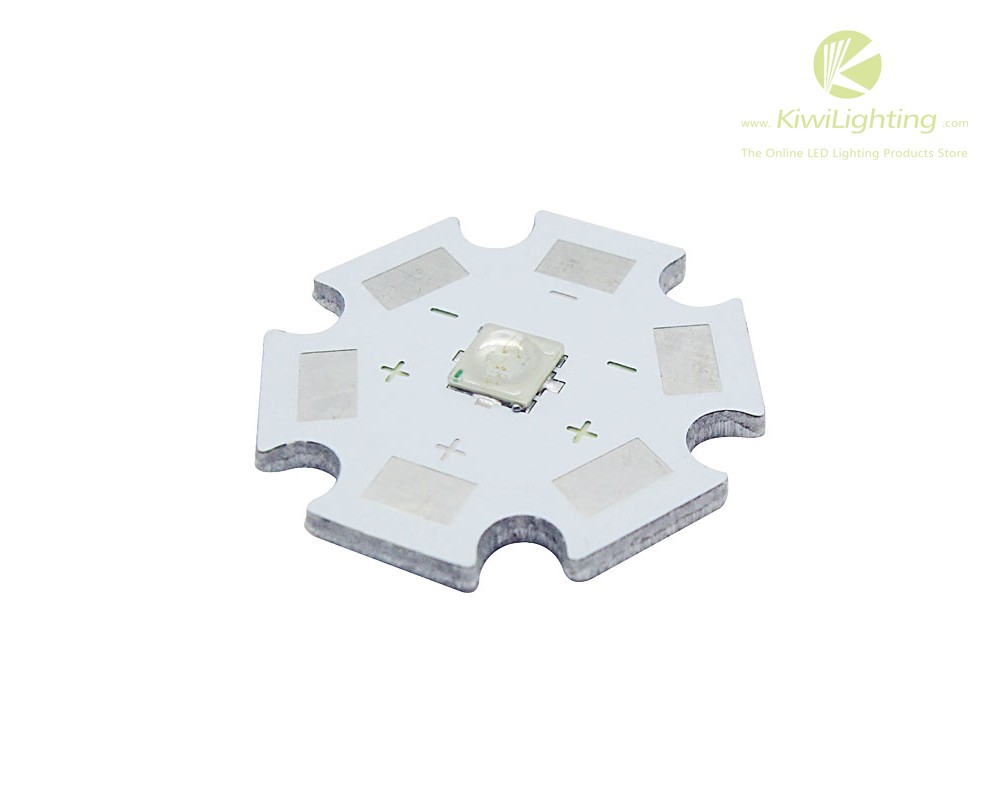

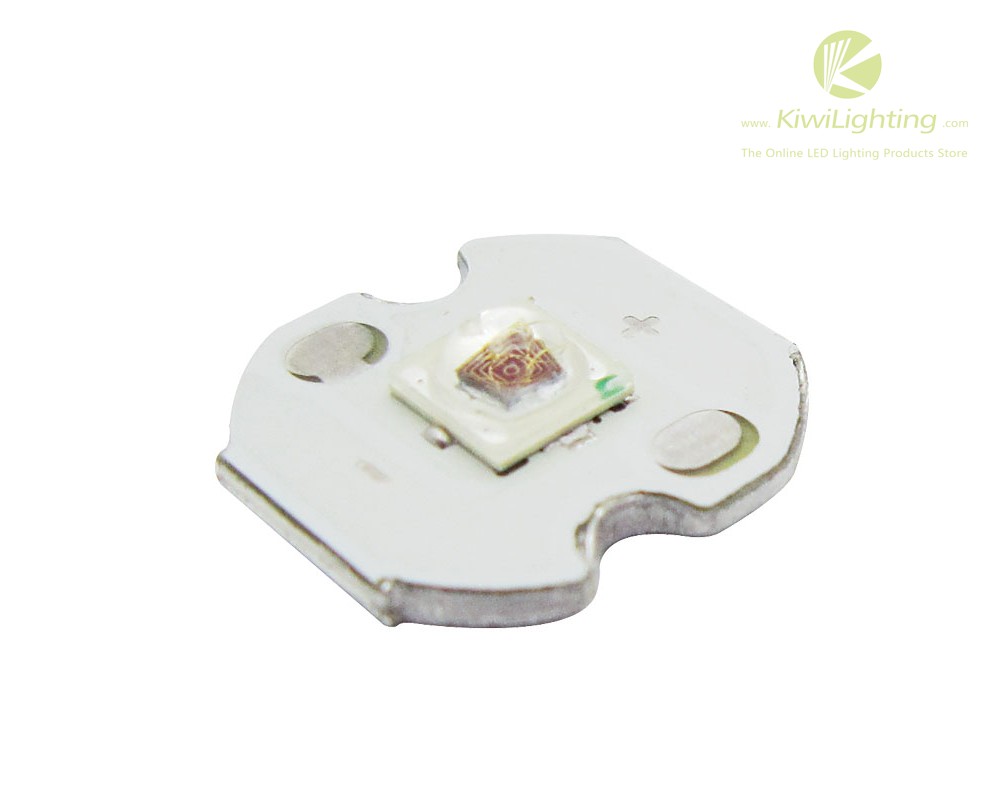

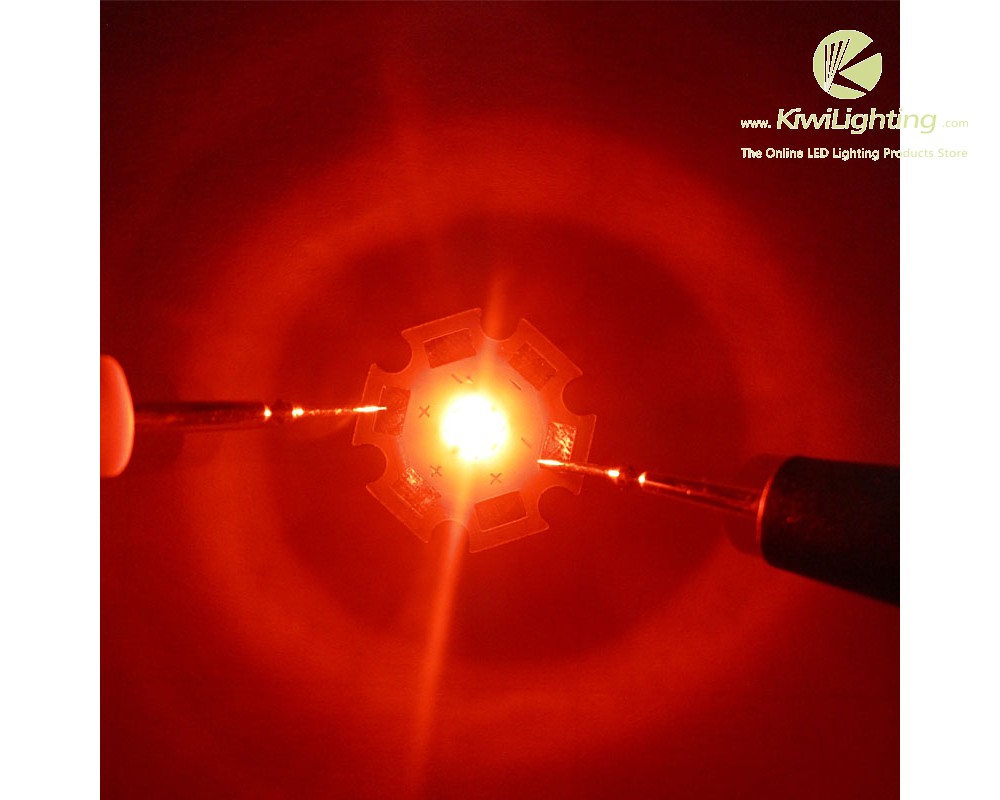

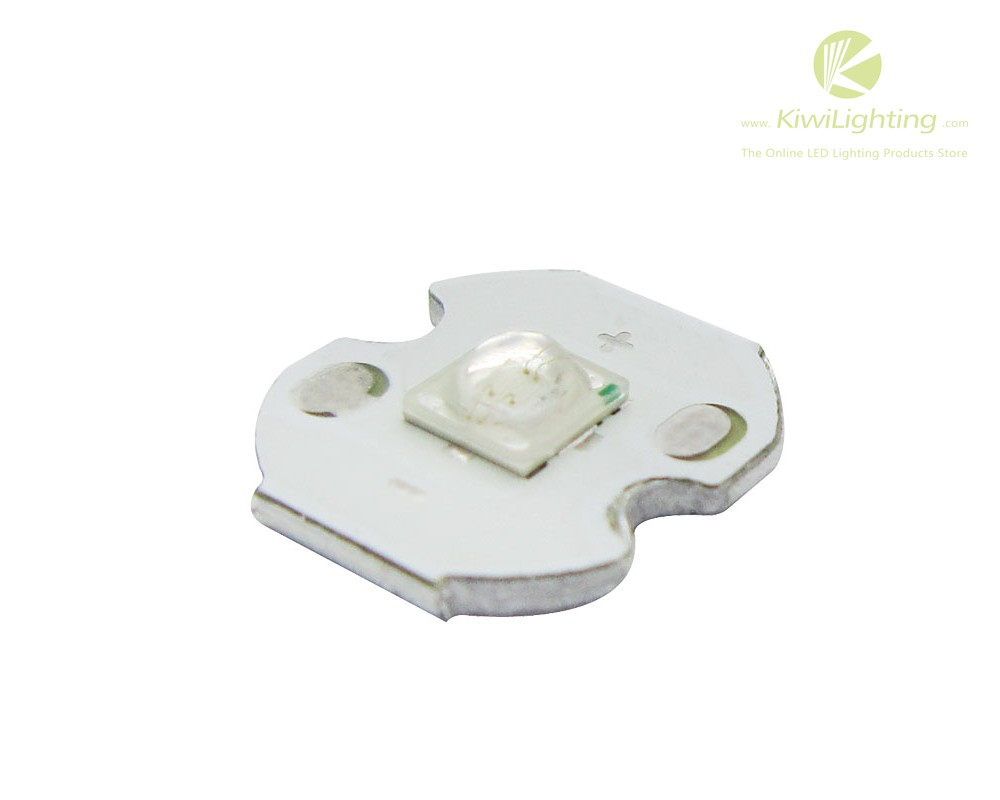

1w EPILEDS LED Emitter - 12mm/16mm/20mm-PCB
Choose different emitted colors and PCB diameter here- Chip Brand: Epileds
- Lens Color: Water Clear
- Emitted Color: Blue/Red
- Wavelength: blue 460nm ~ 470nm, red 620-630nm
- Power: 1 watt
- DC Forward Voltage (VF): 3.0 Vdc ~ 3.6 Vdc(blue), 2.0 Vdc ~ 2.5 Vdc(red)
- DC Forward Current (IF): 300-350mA(blue), 300-350mA(red)
- PCB Diameter: 12mm/16mm/20mm
Specifications
| SKU | KW-EL1W |
|---|---|
| Net Weight(g) | 3 |
| DC Forward Current(mA) | 350 |
| Power Consumption(W) | 1 |
| Brand | EPILEDS |
| LED Amount(pcs) | 1 |
| Life Span | 50,000 hours |
| Lens Color | Water Clear |
