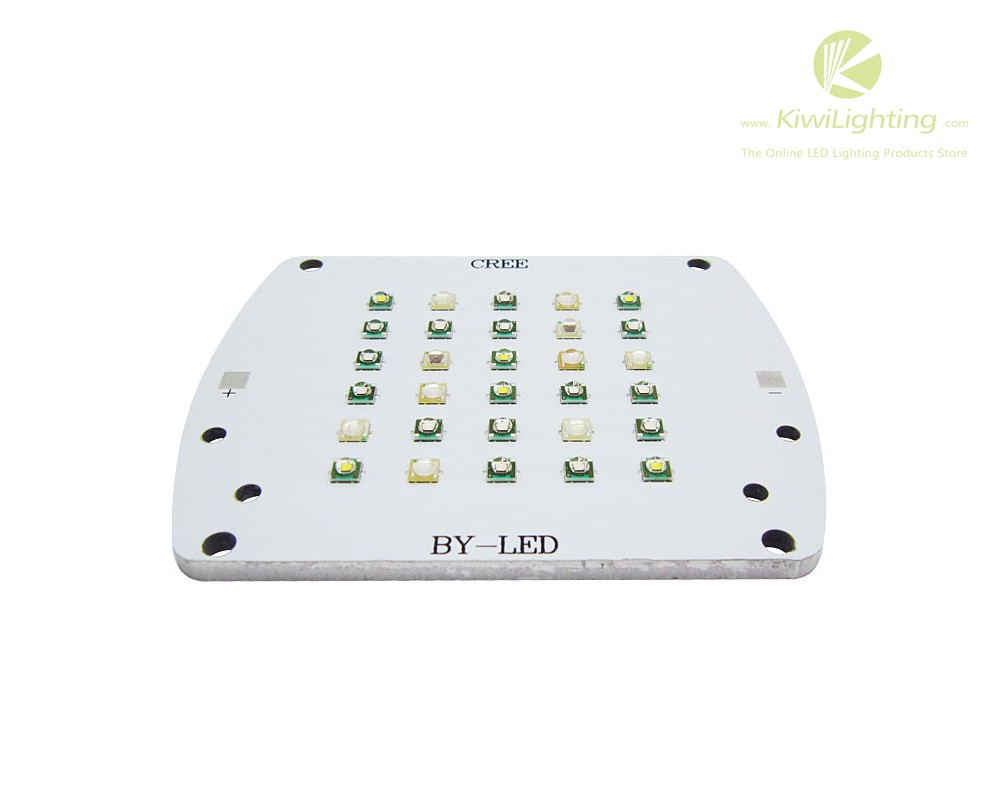

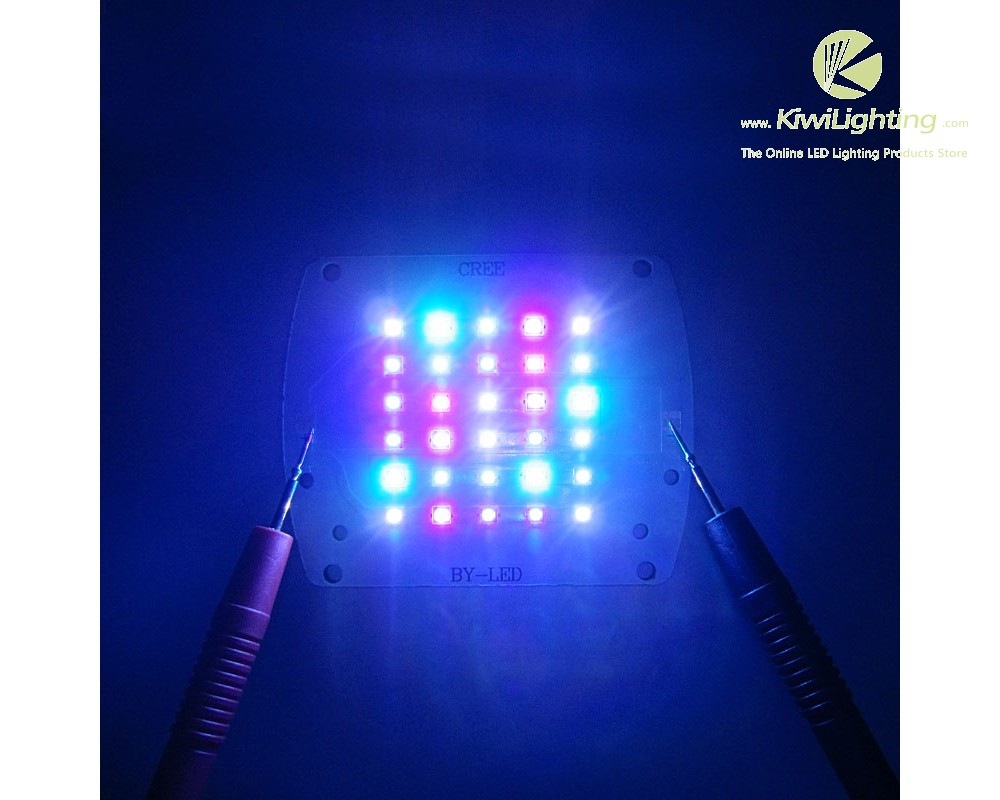

DIY 100W Cree Epileds LED Light
Technical Parameters:
- Power: 100W
- Model Name: CREE XPE+EPILEDS
- Emitted Color: 7PCS 450nm royal blue +7PCS 470nm blue +6PCS 7000K white+4PCS 430NM UV +4PCS 490NMM cyan +2PCS 660nm red
- DC Forward Voltage (VF): 29V-32Vdc
- DC Forward Current (IF): 1800-2000mA

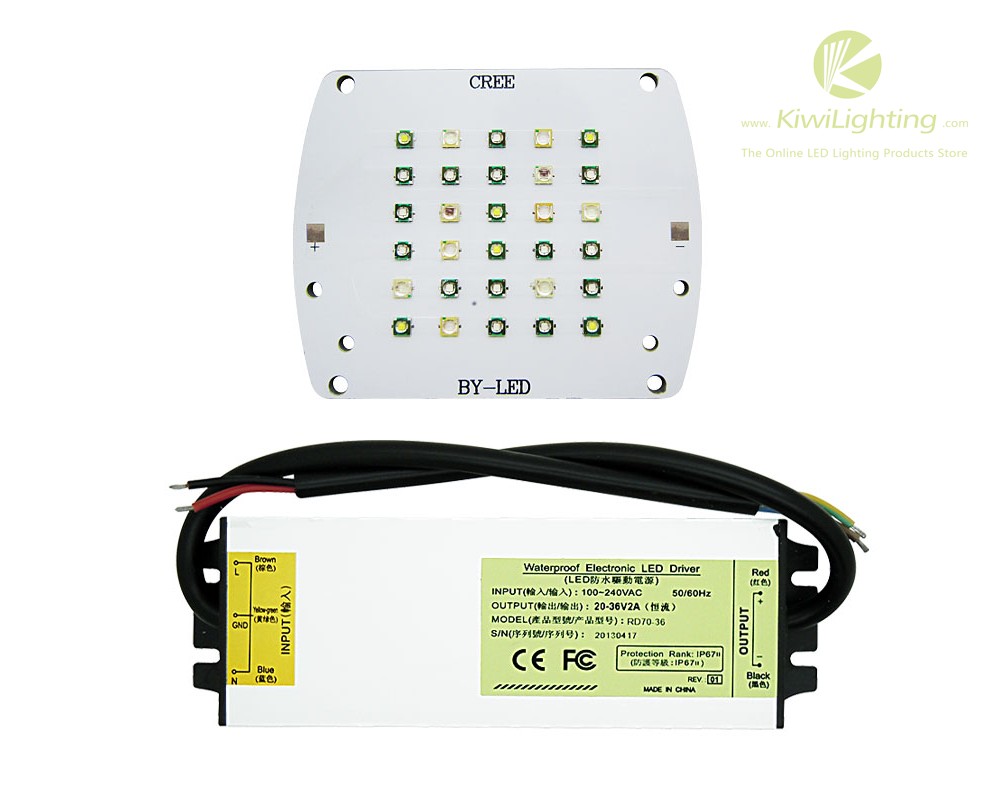

Technical Parameters For Led Driver:
- INPUT:100-240VAC 50/60HZ
- OUTPUT:DC20-36V 2A
- SIZE:155*50*25MM

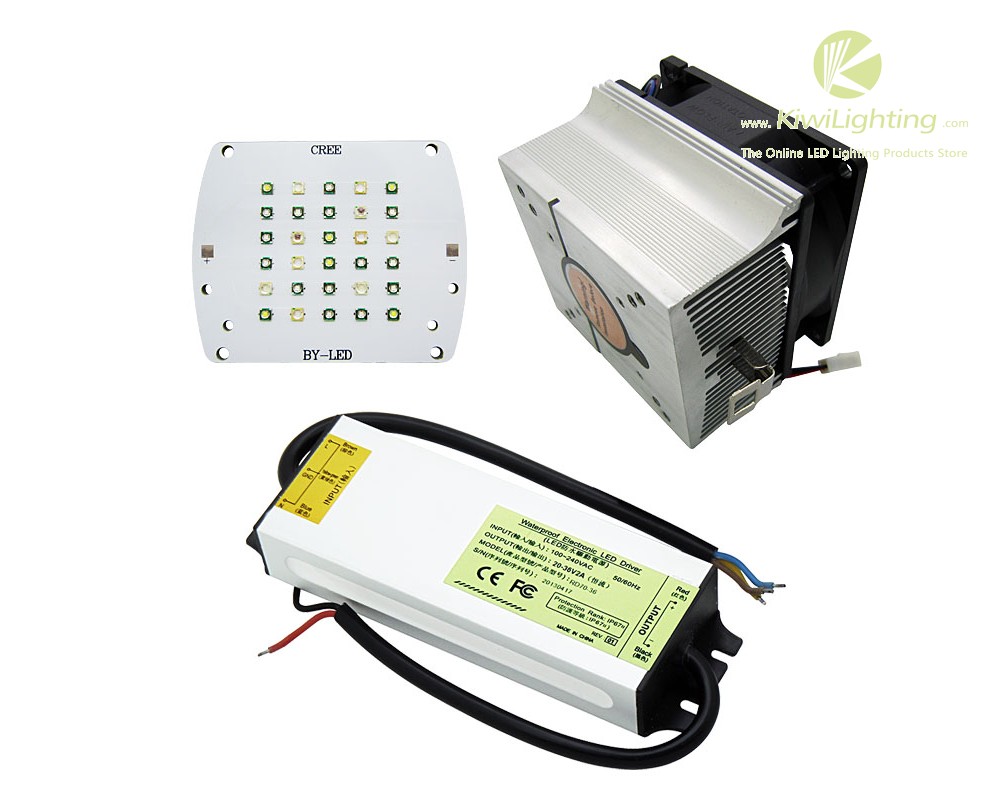

Technical Parameters For Heatsink Fan:
- Supply voltage: DC12V
- Copper center distance: 28MM
- Radiator Type: air-cooled radiator
- Fan size: 90 × 90 × 25mm
- Heat sink size: 70 * 80 * 40mm
- Black line is "-", the red line is the "+." With screws.
- Suitable for the size of 82 * 66mm power of 60W lamps
SKU | KW-XPE-100CM |
---|---|
Net Weight(g) | 860 |
LED Amount(pcs) | 30 |
Material | aluminium |
Life Span | 30,000 hours |
Lens Color | Water Clear |
-
Epileds 35MIL 30-36V 3A 100W High Power Led Warm White 1900-2100K
30-36V 3A
100W
Warm White:1900-2100K$29.99 -
34W PHILIPS Rebel Led Lamp Light 16pcs red (610-620nm) + 4pcs blue(450-455nm)
21-24V 1000-1400MA
34W
PHILIPS Rebel 16pcs red+4pcs blue
SIZE:55*40*2MM$15.99 -
PHILIPS Rebel Led Emitter Lamp Light 24pcs Red-Orange (610-620NM) + 6pcs royal blue (450-455NM)
21-24V 1500-2000MA
48W
PHILIPS Rebel 24pcs red+6pcs blue
SIZE:82*66*2MM$24.99 -
DIY CREE XPE + XTE + SemiLEDs + EPILEDS Led Lamp
DC Forward Voltage (VF): 30V-32Vdc
DC Forward Current (IF): 350-600mA$18.99 -
30W Cree XPE Fish Tank Led Lamp Light 3PCS 475NM Blue + 7PCS 6000K White
Power: 30W
Model Name: CREE XPE
Emitted Color: 3pcs 475nm blue + 7pcs 6000K white
DC Forward Voltage (VF): 30V-36Vdc
DC Forward Current (IF): 350-1000mA
SIZE:55*40*1.5MM$13.99 -
Epileds 100W 50W 30W High Power Cyan 490-495NM Led Emitter Lamp Light
100W 50W 30W
Cyan 490-495NM$26.99 -
Epileds 10W High Power 940NM 850NM Infrared IR Led Emitter Lamp Light For CCTV Camera
DC Forward Current (IF): 900mA~1200mA
Radiation Power: 900-1000mW/750-850mW$12.99 -
PHILIPS Rebel 4pcs Red(610-620nm)+16pcs Royal Blue (450-455nm) Plant Grow Led Light
27-29V 1000-1400MA
40W
PHILIPS Rebel 4pcs red+16pcs blue
SIZE:55*40*2MM$14.99 -
Original 65W Cree Xlamp CXA 2530 CXA2530 COB LED Emitter Light White 5000K 4000K 3000K 2700K 80CRI 75CRI 90CRI 95CRI
Size 23.85 x 23.85 mm
Product Options High-CRI
Maximum Drive Current 1.6 A
Maximum Power 65 W
Light Output Range 3000 - 5700 lm
Light Emitting Surface (LES) 19 mm
Typical Forward Voltage 36.4 V @ 0.80 A (85°C)
Viewing Angle 115 °$8.00 -
4 Style 23MM PMMA 60 Degree Optical Led Lens White/Black Holder For 1W 3W 5W Led
holder size: 24.5mm x 8.5mm
Lens: 23mm x 8mm
Light emitting angle: 60 degrees$0.40
