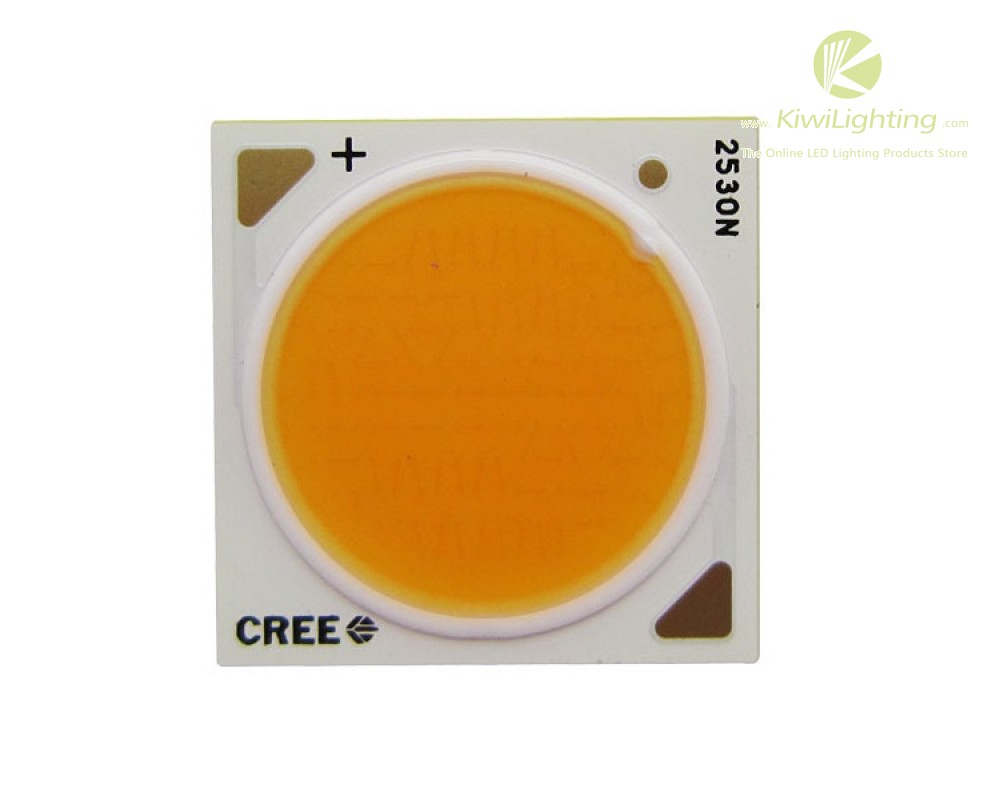

Cree Xlamp CXA 2530 COB LED Light
The XLamp CXA2530 LED Array delivers high lumen output and high efficacy in a single, easy-to-use package that eliminates the need for reflow soldering. Optimized to simplify designs and lower system cost, the CXA2530 LED Array can deliver system-level performance of 2000 to 5000 lumens, enabling applications that traditionally use halogen, ceramic metal halide and compact fluorescent technology.
Technical Parameters:
- Size 23.85 x 23.85 mm
- Product Options High-CRI
- Maximum Drive Current 1.6 A
- Maximum Power 65 W
- Light Output Range 3000 - 5700 lm
- Light Emitting Surface (LES) 19 mm
- Typical Forward Voltage 36.4 V @ 0.80 A (85°C)
- Viewing Angle 115 °
- Binning 85°C
- ANSI (White) 2- and 4-Step EasyWhite®
- RoHS Compliant Yes
- REACH compliant Yes
- UL recognized Yes - Level 4 Enclosure Consideration
- Package Size 23.85 x 23.85 mm
- Kelvin : 5000K/4000K/3000K/2700K
Package Included:
- 1PC X Cree Xlamp CXA 2530 COB LED Light
Specifications
SKU | KW-CXA2530 |
---|---|
Net Weight(g) | 5 |
Emitted Color | Natural White |
Power Consumption(W) | 60 |
Brand | Cree |
