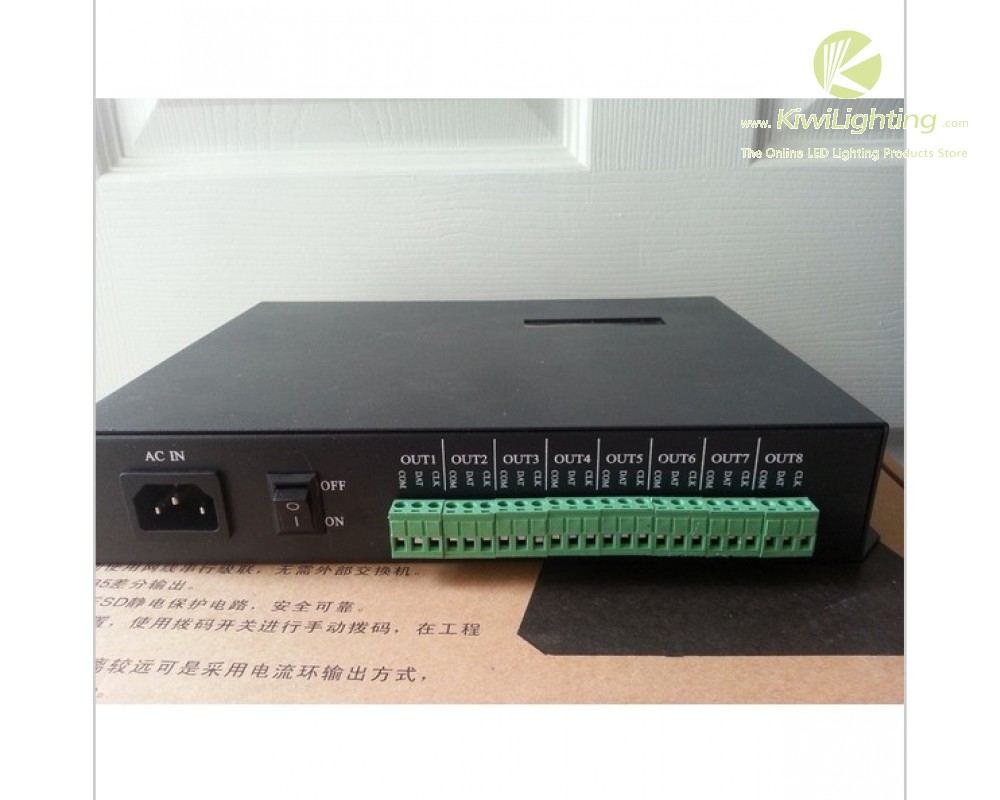

T-200K LED Controller for Dream-color LED Strip 8 Channel 1024 Pixel Online/Offline Control

Downlaod User Guide

T-200k System Features:

• 1. 32—256 Gray level，Support software Gamma correction。
• 2. Support the rules and special-shaped handle.
• 3. 8 ports output，one port can support 512-1024 pixels。
• 4. offline (SD card) control and on-line control can be combined using multiple controllers, the contents of the offline control program stored in the SD card.
• 5. Compatible with single line or double line chips.
• 6. If the controller to the lamps distance can choose photoelectric isolated transmission and as far as several distances of up to 200-300M

Support chips:

• LPD6803,D705,1101,6909, 6912
• LPD8806,LPD8809
• TM1803,TM1804,TM1809,TM1812
• TM1903，TM1904，TM1909，TM1912
• UCS6909，UCS6912，UCS7009，UCS5903
• UCS1903，UCS1909，UCS1912
• UCS3903
• DMX512
• WS2801,WS2803
• WS2811
• DS189
• TLS3001,TLS3002,TLS3008
• P9813
• SM16715
• SM16716
• BS0901,BS0902
• BS0815

Applications:

LED digital tube, LED point light source,the exterior light and a module, pixel screen (dazzle colour screens), high power DMX lighting.

Specific parameters:

Memory card:

• Type: SD card（if controlling so many lamps it is best to use the high-speed SD card.）
• Capacity: 128MB—2GB
• Format: FAT
• Store file: *.led

Physical parameters:

• Working temperature: -30°C—85°C
• Weight: 1.35KG
• Working voltage: AC220V
• Working power: 8W
• Size: L270mm×W180mm×H55mm
• Signal port: 3pin connect port

NOTE: T-300K Support online download the effect-file to SD card.

Package Included:

• 1PC X T-200K LED Controller for Dream-color LED Strip 8 Channel 1024 Pixel Online/Offline Control

Resource Download

LedEdit 2012 v1.42.rar 45.2MB
LedEdit 2013 v1.54.rar 48.3MB
