RGB LED Dimmer 3-channels DC-5V-12V-24v 3A

Be the first to review this product

SKU:BY-DM-3CH (In stock)

RGB LED Dimmer,
3 output channels,
input voltage: DC 5V/12V/24v,
output current: 0~3A/Ch,
max output power: 45W@5V, 108W@12V, 216W@24V,
Price From: $11.99
+

* Required Fields

Price From: $11.99
Details

Product Description

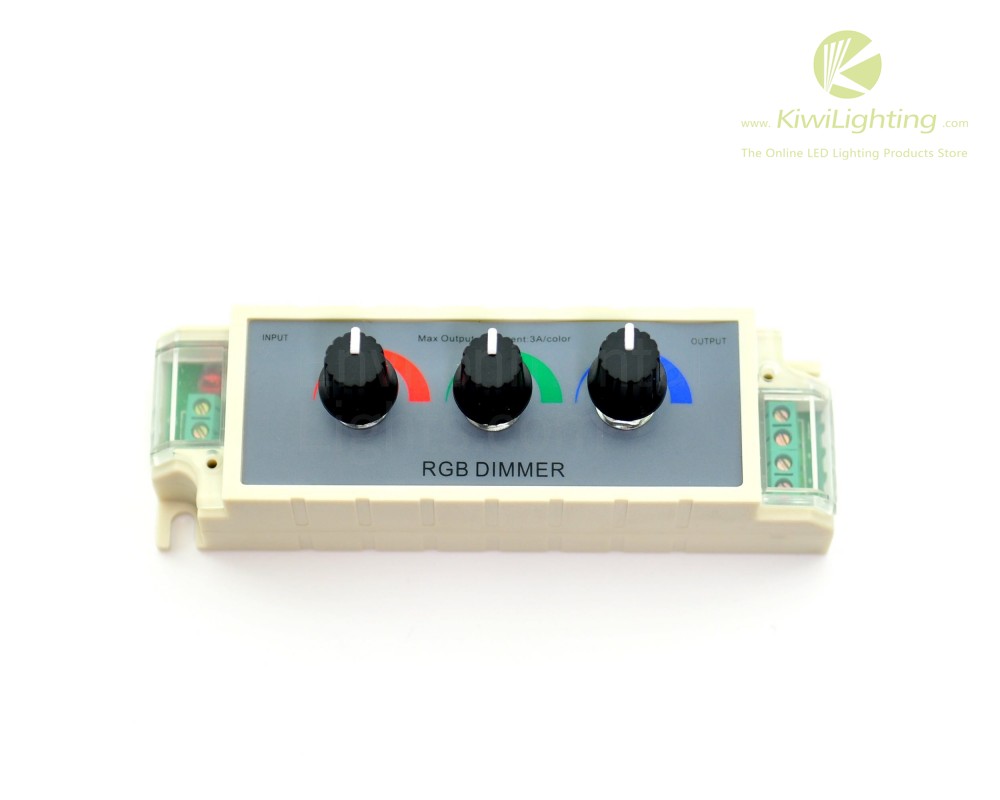

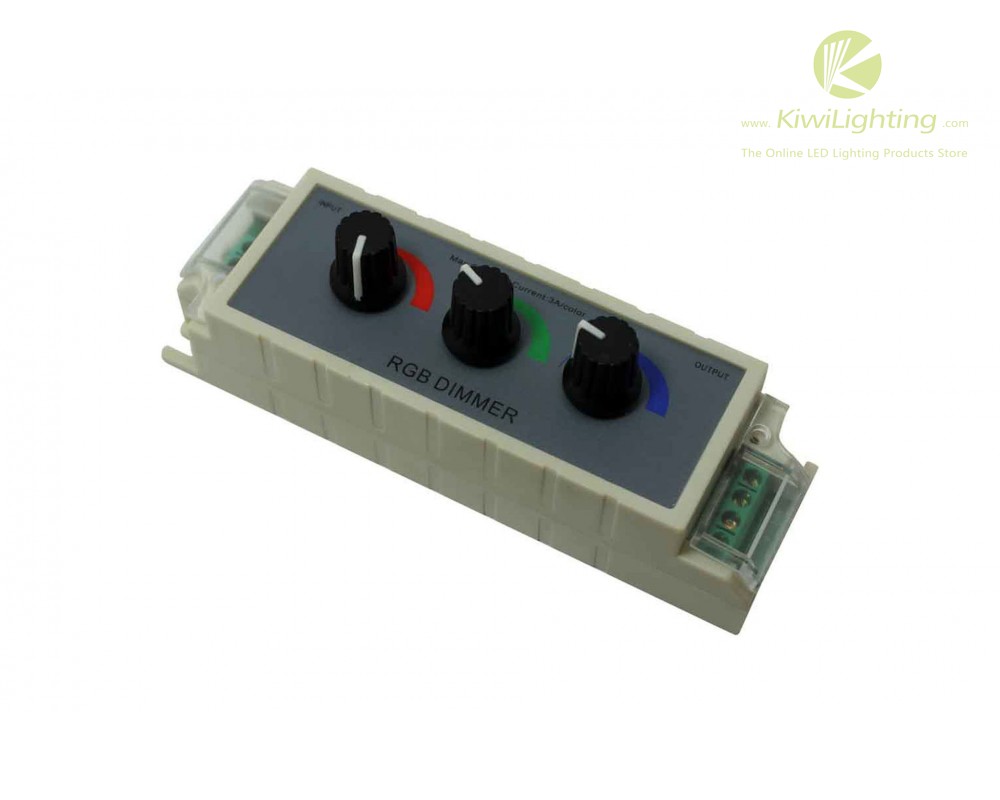

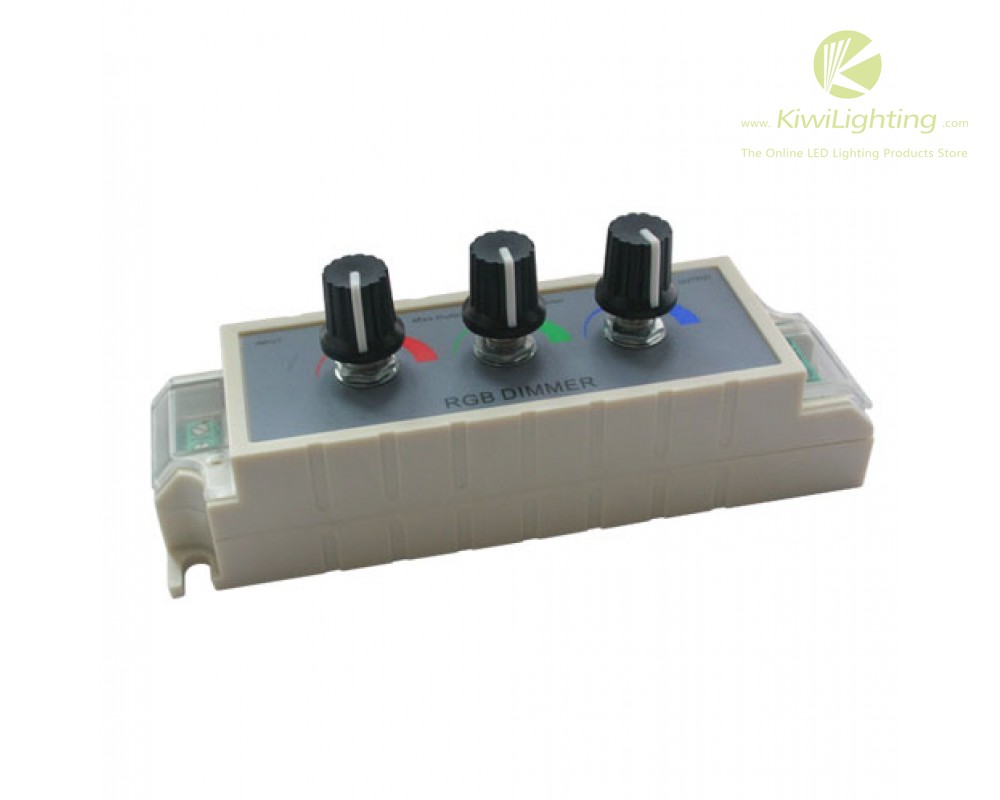

The dimmer can adjust brightness infinitely. There are three output channels in all, each channel works separately for the red, green, blue LED. Control mode is knob-operated control, you could adjust light to the appropriate brightness in accordance with your actual need.


Specification

  • Connecting mode: common anode (option: common cathode)
  • Working temperature: -20~+60 DegC
  • Power supply voltage: DC 5V, 12V, 24V optional (specify the input voltage on order form, if no note we will send 12V in default)
  • output channels: 3 channels
  • static power consumption: lower than 1 watt
  • Max output current: 3A for each channel
  • Max output power: 45W@5V, 108W@12V, 216W@24V
  • net weight: 95g
  • gross weight: 120g
  • external dimensions: 130*40*52mm
  • package size: 140*50*60mm

Direction for use

  • 1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur between connecting wire before you turn on the power;
  • 2. When operation, the remote control facing the infrared receiver, ensure that there are no obstructions between remote controller and receiver; When dimmer receives an effective signal�from the infrared remote control, the red light on the upside flickers;
  • 3. There are two methods in Dimming:

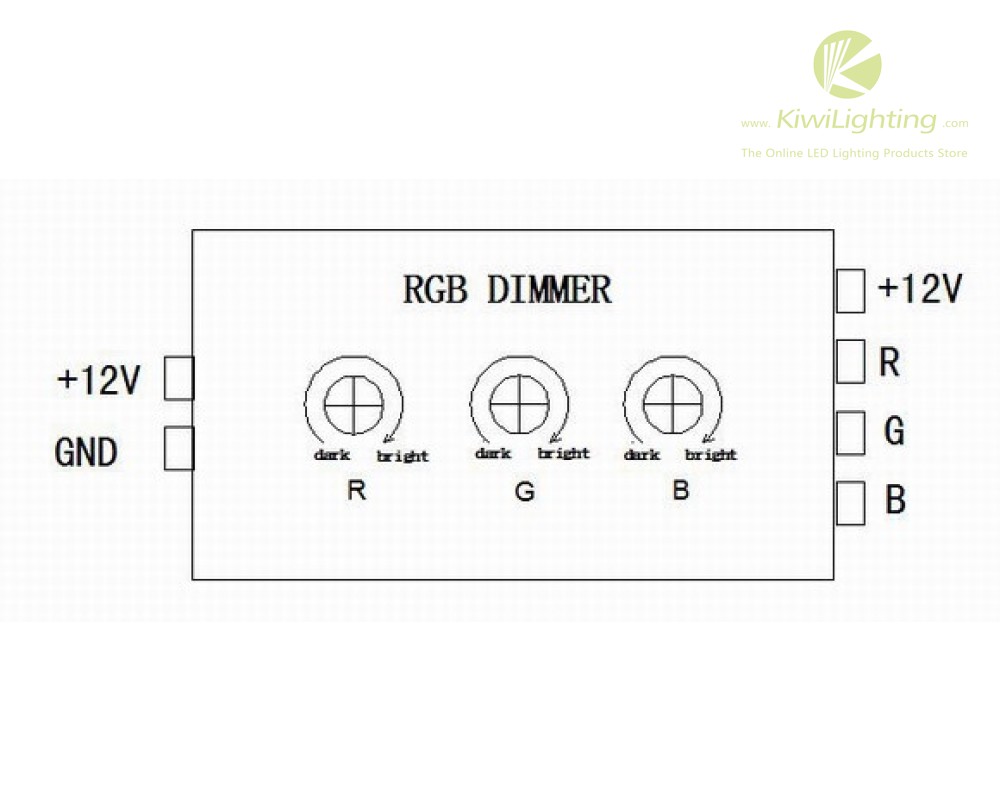

Interface Specifications

  • Power input interface:
  • Adopt two-sheath wires as the input interface wire of power, remarks: brown wire
  • blue wire
  • Load output interface:
  • Adopt four-sheath wires as input/output interface wire of signal, remarks: black wire+
  • brown wire R yellow wire G blue wire B
Specifications
SKU BY-DM-3CH
Net Weight(g) 120
Output Current(mA) 3,000
Operating Temperature -20°C ~ +60°C
Dimension external dimensions: 130*40*52mm package size: 140*50*60mm
Output Channels 3 Channels
