Details

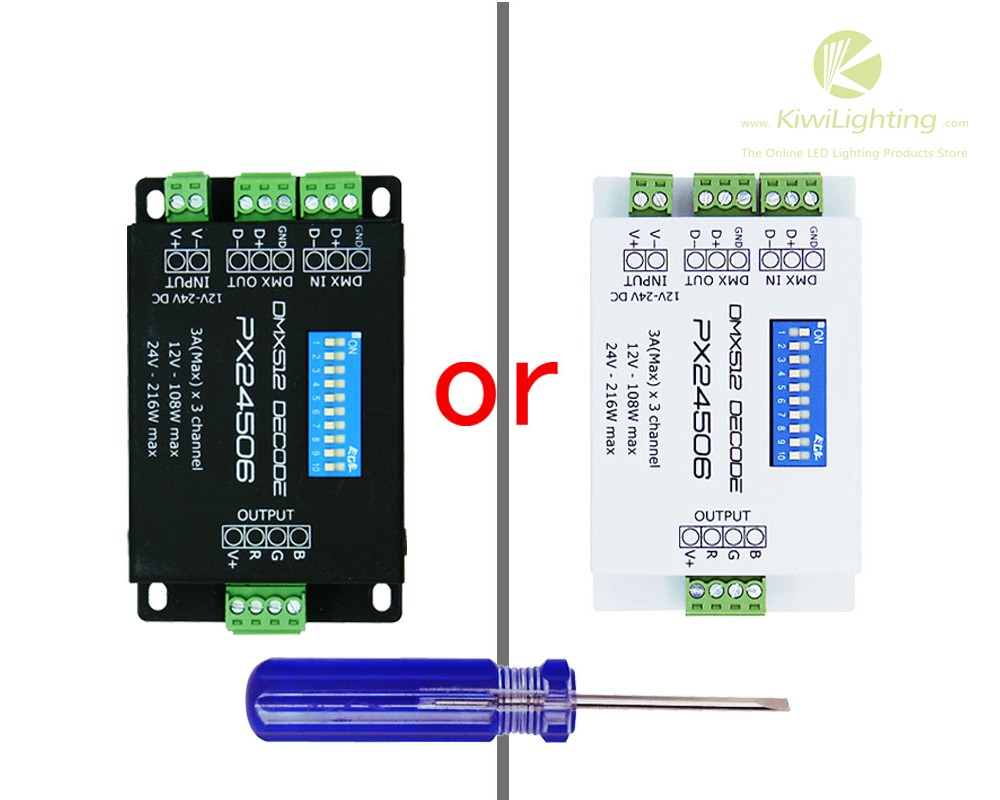

PX24606 DMX512/1990 Decoder & Driver - 3 Channels DC12~24V 3A/Ch
Technical Parameters:
- Meets DMX512/1990
- Can drive 6A
- Can drive many kinds of LED lamps
- Decode CH.: 1
- Input Signal: DMX-512/1990 digital signal
- Output Signal: 0~24V,can drive 6A
- Power Supply: DC12~24V
- Power Dis.: <1W
- Max. Power Output: 72W(12V)/144W(24V)
- Operating Temp.: -20~70℃
- Size: L86(mm)*W51(mm)*H17.8(mm)
- Weight: 110g
Package Included:
- 1PC X High Power DMX512 Decoder
Specifications
| SKU | BY-CON-PX24606 |
|---|---|
| Net Weight(g) | 126 |
| Input Voltage | 12-24Vdc |
| Dimension | L86(mm)*W51(mm)*H17.8(mm) |
| Output Channels | 3 Channels |
