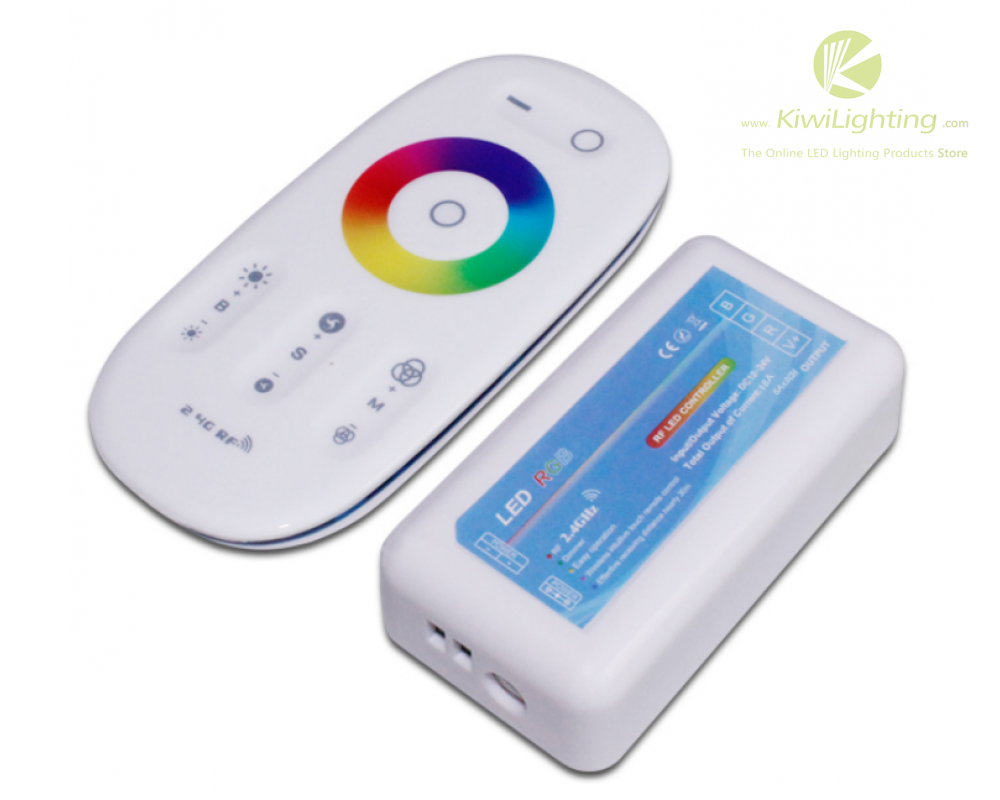

LB2.4G –RGB Touch screen LED controller

Be the first to review this product

SKU:KW-LB2.4G-03 (In stock)

Working temperature: -20-60℃
Input voltage: DC12V~24V
Output: 3 circuit
Connection mode: Common anode
Controller size: L85×W45×H22mm


Net weight: 85g, Gross weight:125g
Static power consumption: <1W
Output current: <6A/ch
Output power:  12V:<216W,  24V:<432W

$17.99
+
$17.99
Details

LB2.4G –RGB Touch screen LED controller

Product description

    This  is a high-performance 2.4G RGB LED touch remote controller, which is adopting the most advanced PWM control technology, controlling all RGB LED products with Four lines and three circuits( common anode),owning 640 thousand colors and 20 automatical changing modes to choose.
     Also, It has the memory function(that is to say, the previous settings will be resumed when power on again). It is widely used in LED RGB strip light, LED module, LED lamphouse and so on. With the technology of the 2.4G high frequency wireless remote control, it has the characteristics of low power consumption, long distance transmission, and strong anti-interference ability ,high speed telecommunications, etc.
     The remote looks fashionable and elegant , with simple and practical functions of color changing and brightness dimming, the capacitive touch screen design makes the remote easy to use. The controller is using modular design, the connection mode is easy to compatible with all kinds of form a complete set of lamps and lanterns.

Technical Parameters

Working temperature: -20-60℃
Input voltage: DC12V~24V
Output: 3 circuit
Connection mode: Common anode
Controller size: L85×W45×H22mm

Net weight: 85g, Gross weight:125g
Static power consumption: <1W
Output current: <6A/ch
Output power:  12V:<216W,  24V:<432W

Connection description:

Instructions



Items

Parameter

Remark

Supply Voltage

3V

2* AAA battery

Transmission frequency

2400-2483.5MHz



Modulation method

GFSK



Transmission power

6db



Standby power consumption

5uA



Remote control distance

20-30m



External dimension

110*55*20mm




The remote parameter

Function information:

  1. Use the 2.4G radio frequency wireless to control, it no need to point at controller, can around the obstacles to control.

         2.  About 20-30m empty remote control distance.

         3.  Remote control has touch function.

Control methods:

  1. Connect the load line firstly, then connect the power line; make sure all lines no short circuit before power on.
  2. When it’s ON state, touch ring can become quick and smooth changes on colors, “mode+” and “mode-“ have 20 different mode choices, modes details as below:

 Program List (for “Mode+” and “Mode-”)

No.

Mode

Brightness state

Speed state

1

Static white color

Adjustable

Unadjustable

2

White color gradual changes

Adjustable

Adjustable

3

All colors gradual change

Adjustable

Adjustable

4

Red/green/blue 3 colors gradual change

Adjustable

Adjustable

5

7 colors jump to change

Adjustable

Adjustable

6

3 colors jump to change

Adjustable

Adjustable

7

Red/green jumps to change

Adjustable

Adjustable

8

Red/blue jumps to change

Adjustable

Adjustable

9

Blue/green jumps to change

Adjustable

Adjustable

10

White color frequently blinks

Adjustable

Adjustable

11

White color glitters

Adjustable

Adjustable

12

Red color frequently blinks

Adjustable

Adjustable

13

Red color glitters

Adjustable

Adjustable

14

Green color frequently blinks

Adjustable

Adjustable

15

Green color glitters

Adjustable

Adjustable

16

Blue color frequently blinks

Adjustable

Adjustable

17

Blue color glitters

Adjustable

Adjustable

18

Yellow color frequently blinks

Adjustable

Adjustable

19

Yellow color glitters

Adjustable

Adjustable

20

Circulation mode

  1. When the state is in a color wheel, press “Mode+”or “Mode-“ will back to the last of selected mode.
  2. When long press “Speed+”, “Speed-“, “Brighteness+” or “Brighteness-“, it can quickly adjust their levels accordingly.

● Programming (code matching and code clearing):

The item already coding between remotes and light before shipping, one remote control multiple LED lamps/strips or use a new remote control need coding operation as follows.

Code matching:

For a new kit (remote & controller), the remote can work only when it is programmed to the controller. Please follow the below instructions:

Confirm it is correctly connected between power supply, LED controller and LED load. Switch off the power, then switch on again, and press key “Speed+” once (within 3 seconds) the moment you see the light is on. The LED light flash twice slowly, then it means code matching is successful.

Code clearing:

The code can be cleared as needed. The kit (remote & controller) will stay in the original state after code clearing, and it can work again when code rematching is done. Pleases follow the below instructions:

Confirm it is correctly connected between power supply, LED controller and LED load. Switch off the power, then switch on again, and long press key “Speed+” once in 3 seconds, at that moment you see the light is on. The LED light flash nine times swiftly, then it means code clearing is successful.

● Attention:

1) The regular product for sale is a kit (remote and controller). The user can re-programme freely as needed. One remote can control countless controllers, but one controller can only be controlled by four remotes (Max).

2) Please check the battery installation and controller (totally discharge the power), when you programme after switching off and switching on.

Connection diagram

Cautions:

1This product only use on supply voltage DC12-24V, do not input on other voltage.

2The lead wire shall be according to the wiring diagram of the color and label, connect correctly.

3This product can not be overloaded.

4Please keep your finger away from the touch ring when installing the batteries, to improve its sensitivity, and use the remote (3 seconds later) after the batteries are installed. Please reinstall the batteries, if the touch ring is found low-sensitivity.

5Do not put the controller in a wide range of use metal area, or near a strong electromagnetic wave area, otherwise it will seriously affect the communication distance.
