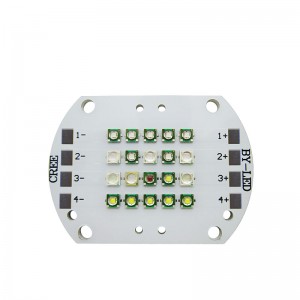

1 ch: 5 x Royal Blue 15V 350-1000MA
2 ch: 3 Ultraviolet 420nm + 2 Blue 15-17V 350-600MA
3 ch: 2 x Cyan + 1 x Violet 400nm + 1 x Red.+ 1x 10.000 K White 14-15V 350-600MA
4 ch: 3 x 10.000 K Cold White + 2 x 6.000K White 15V 350-1000MA

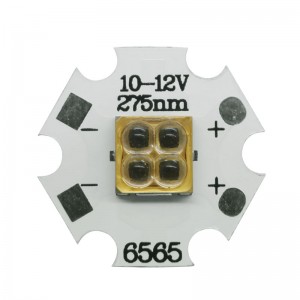

Peak wavelength:275-280nm
Forward Voltage:10-13V
DC Forward Current:300MA
Power Dissipation:4W
Luminous Flux:80-100mW
Viewing angle:30Deg
Chip Dimension:6.50mm* 6.50mm* 3.35mm
PCB Size:20MM Aluminum PCB Board

5 channel 21LEDS

CH1: 10x Ultraviolet 420nm 30-36V 350-600MA
CH2: 10x CREE XP-E royal blue 450nm 29-31V 350-1000MA
CH3: 10x CREE XP-E blue 475nm 29-31V 350-1000MA
CH4: 10x CREE XP-E red 620nm 20-22V 350-1000MA
CH5: 10x red 660nm 20-22V 350-600MA

CH1: 10x CREE XP-E 4500K 30V 350-1000MA
CH2: 10x CREE XP-E 450nm 30V 350-1000MA
CH3: 10x EPILEDS 420nm 30-36V 350-600MA
CH4: 5x EPILEDS 660nm, 5x EPILEDS 490nm 25-26V 350-600MA
CH5: 10x EPILEDS 395nm 30-36V 350-600MA

1 ch: 4 x Royal Blue 12V 350-1000MA
2 ch: 2x Blue+1 + 2 x Cyan 12V 350-600MA
3 ch: 1 x Violet 390nm +1x red 660nm+ 2 x Ultraviolet 420nm 12V 350-600MA
4 ch: 3 x 10.000 K Cold White + 1 x 6.000K White 12V 350-1000MA

1 xpe 450nm royal blue
1 EPILEDS 660nm red
5 xpg2 6500k white
3 xpg2 3000k warm white
DC Forward Voltage (VF): 28V-30V
DC Forward Current (IF): 350-600mA

Cree XPE2 Royal Blue 3W :
Wavelength: 450-455nm
Voltage:3.1-3.5V
Current: 350-1000MA
EpiLED UV 395nm 3W:
Voltage:3-3.2V
Current: 700MA
PCB Size: 20MM Aluminum PCB Board

Cree XPE2 Royal Blue 3W :
Wavelength: 450-455nm
Voltage:3.1-3.5V
Current: 350-1000MA
EpiLed XML T6 UV 395nm 10W:
Voltage: 3.4-3.8V
Voltage:3A
PCB Size: 20MM Aluminum PCB Board

Cree XPE2 Royal Blue 3W :
Wavelength: 450-455nm
Voltage:3.1-3.5V
Current: 350-1000MA
EpiLed XML2 UV 395nm 10W:
Voltage:3.2-3.6V
Current: 3A
PCB Size: 20MM Aluminum PCB Board

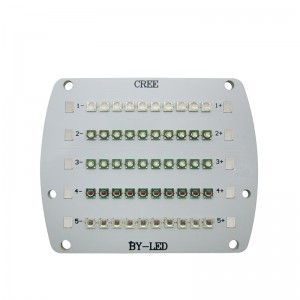

5 Channel 25leds
Suitable For aquarium Fish Tank Led
Can customize the led beads' colors as your favor

CH1: 10x CREE XP-E 6000K 30V 350-1000MA
CH2: 10x CREE XP-E 450nm 30V 350-1000MA
CH3: 5x EPILEDS 420nm, 5x EPILEDS 395nm 30-36V 350-600MA
CH4: 10x CREE XP-E 450nm 30V 350-1000MA
CH5: 10x CREE XP-E 10000K 30V 350-1000MA

CH1: 2x CREE XP-E 470NM ,1x CREE XP-E 450NM 9V 350-1000MA
CH2: 2x EPILEDS 660nm ,1x EPILEDS 420nm, 7-8V 350-600MA
CH3: 3x CREE XP-E 10000K 9V 350-1000MA
CH4: 1x EPILEDS 490nm , 1x CREE XP-E 470NM ,1x CREE XP-E 450NM 9V 350-600MA

DC Forward Voltage (VF): 30V-32Vdc
DC Forward Current (IF): 350-600mA

DC Forward Voltage (VF): 30V-31Vdc
DC Forward Current (IF): 350-600mA

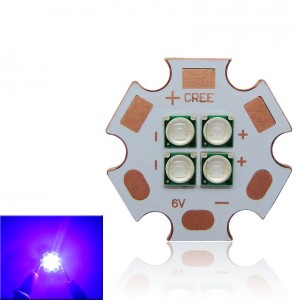

Power: 12W
Voltage: 7V/14V
Current: 350mA-1400MA(7V) 350mA-700mA(14V)
Emitter Color:UV
Wavelength: 430nm
Beam Angle: 110 degrees

Led Chips Quantity: 4pcs

Power: 5W

Emitted Color: Infrared IR

Wavelength: 845-850nm

Viewing Angle : 120 Degree

DC Forward Voltage (VF): 1.6-2V

DC Forward Current (IF): 2800mA

PCB Size (mm x mm) : 20mm/16mm/14MM/12MM Aluminum PCB Board

                                     20mm/16mm Copper PCB Board

Led Chips Quantity: 4pcs

Power: 5W

Emitted Color: Infrared IR

Wavelength: 940-955nm

Viewing Angle : 120 Degree

DC Forward Voltage (VF): 1.6-2V

DC Forward Current (IF): 2800mA

PCB Size (mm x mm) : 20mm/16mm/14MM/12MM Aluminum PCB Board

                                     20mm/16mm Copper PCB Board

Led Chips Quantity: 4pcs

Power: 5W

Emitted Color: Infrared IR

Wavelength: 975-980nm

Viewing Angle : 120 Degree

DC Forward Voltage (VF): 1.4-1.8V

DC Forward Current (IF): 2800mA

PCB Size (mm x mm) : 20mm/16mm/14MM/12MM Aluminum PCB Board

                                     20mm/16mm Copper PCB Board

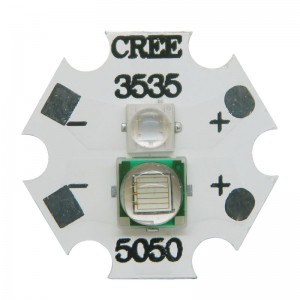

EpiLed UV 420nm 3W:
Voltage: 3-3.2v
Voltage: 700MA
EpiLed XML T6 Royal Blue 10W:
Wavelength: 450-455nm
Voltage: 3.2-3.6V
Current: 3A
PCB Size: 20MM Aluminum PCB Board

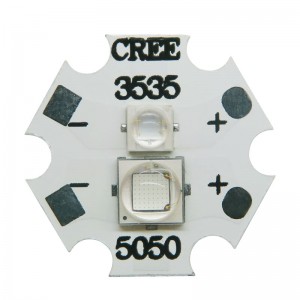

EpiLed UV 420nm 3W:
Voltage: 3-3.2v
Voltage: 700MA
EpiLed XML2 Royal Blue 10W:
Wavelength: 450-455nm
Voltage: 3.2-3.6V
Current: 3A
PCB Size: 20MM Aluminum PCB Board

29-36V

3000mA

LED Type: 10pcsEpileds SMD3535 530NM-540NM LED Chips

Power: 30W

Voltage: 30-36V

Current: 0.3-0.7A

Emitter Color:Green

Wavelength: 530NM-540NM

Lens color: water clear

Viewing Angle: 120°

PCB Size: 55*40*1.6MM

PCB board:Copper PCB base

LED Type: 10pcsEpileds SMD3535 560nm-570nm LED Chips

Power: 30W

Voltage: 30-36V

Current: 0.3-0.7A

Emitter Color:Green-Yellow

Wavelength: 560nm-570nm

Lens color: water clear

Viewing Angle: 120°

PCB Size: 55*40*1.6MM

PCB board:Copper PCB base

LED Type: 20pcs Epileds SMD3535 530nm-540nm LED Chips

Power: 60W

Voltage: 30-36V

Current: 0.7-1.4A

Emitter Color:Green

Wavelength: 530nm-540nm

Lens color: water clear

Viewing Angle: 120°

PCB Size: 55*40*1.6MM

PCB board:Copper PCB base

LED Type: 20pcsEpileds SMD3535 560nm-570nm LED Chips

Power: 60W

Voltage: 30-36V

Current: 0.7-1.4A

Emitter Color:Green-Yellow

Wavelength: 560nm-570nm

Lens color: water clear

Viewing Angle: 120°

PCB Size: 55*40*1.6MM

PCB board:Copper PCB base

3 series
9-11V
2-3A
30W

Power: 3W
Chip Model: Epileds
Emitted Color: UV 365NM
DC Forward Voltage (VF) : 3-3.6V
DC Forward Current (IF): 600-650mA
Luminous: 7LM
