Details

Cree XPE 4 Channel RGBW Led Light + RGB Led Dimmer D4 + Led Heatsink Fan With Lens + Power Supply

Technical Parameters For Led Light:

channel 1:XPE white 6000K 12V 350-1000MA
channel 2:XPE blue 470NM 12V 350-1000MA
channel 3:XPE red 620NM 8V 350-1000MA
channel 4:XPE green 520NM 12V 350-1000MA
SIZE:55*40*20MM

Technical Parameters For Led Dimmer D4:

modle:D4
power input:DC12-24V
max current load: 4A X 4CH 16A
max power output:192W(12V)/384W(24V)
gray scale level:max 1096*1096*1096
working temp: -20°C ~ 60°C
dimension: L86ΧW86ΧH36 mm
weight:162g

Technical Parameters For Led Driver:

INPUT:100-240VAC 50/60HZ
OUTPUT:15V 4A
PROTECTION RANK:IP67
SIZE:133*50*25MM

Technical Parameters For Led Lens Kit:

Specification for Heatsink and Fan:

Condition: Brand New
Fan Voltage: 12V DC
Heatsink fan Dimension: 80*80*25mm
Aluminum Heatsink Dimension: 76*80*40mm
Weight: 420g

Description:

Butterfly-shaped design for larger heat dissipation area,improve the overall thermal performance,also the style is unique and nice
fan with de-vibration cover,both heat and silent;
heat pipes with HDT technology,powerful performance to meet the elite enthusiasts;
fin hinged design on both sides prevents air leak effectivly, and heat more evenly;
multi-compatible clip

Application:

Cooling; Avoid LED overheat
Fit High Power LED 20W-30W
Kind notice: there are two groups of black wires and red wires. one black wire represents 12V- and one red wire represents 12V+. the other blue wire have no use.

Specification for Lens:

Diameter: 45mm
Height: 19mm
Angle: 4-90 degrees
Focal Length: 30mm
Material: high quality glasses
Application:
Focus light, make the light looks much brighter;
Fit the 20W-30W High Power Led we are selling on eBay/SMT or Like LED.

Specification for Base:

Material: aluminum alloy
Compatible for20W-30W Spot Lights, Automobile Lights, Projector Lamps etc.

Specifications

SKU	KW-XPE-16RGBW-4KIT
Net Weight(g)	1,050

Upselling Product(s)

100W Cree XT-E LED Emitter - 20-LEDs Warm/Cold-White

Cree XT-E LED Emitter, 100 watt, 20 LEDs, Warm/Cold-White, DC 30~33v, 3000mA, 55*40*2mm PCB,

Price From:
Regular Price: $19.99

Special Price: $15.99
G12 LED Corn Light - 86pcs-5050-SMD-LED 650lm warm/cool-white AC-220v~240v

LED Corn Light, 86pcs 5050 SMD LEDs, 650lm, warm/cool-white, 2800K-3000K/6000K-7000K, input AC 220V-240V,

$15.99
EPILEDS 30W Blue 460nm LED Emitter 30-36V 350-700mA

EPILEDS 30w Blue 460nm LED Emitter, VF: 30v~36v, IF: 350mA~700mA, 10x 3watt LEDs,

$8.00
LTECH M Series mini LED Controller - DC 12v/24v 3-Channel 3A/Ch

2 Review(s) | Add Your Review

LTECH M Series mini LED Controller, DC 12v/24v, 3 Channels, 3A/Ch, 4096×4096×4096 Gray Scale Level, Compatible Remote: LTECH M1/M2/M3/M5/M6/M7,

$29.99
EPILEDS 30w Royal Blue 450nm LED Emitter Light 30-36V 350-700mA

VF: 30v~36v, IF: 350mA~700mA, 30 royal blue 450nm LEDs, Brand: EPILEDS,

$8.00
High Power EPILEDS 30W Cyan 490nm LED Emitter 30-34V 350-700mA

VF: 30v~34v IF: 350mA~700mA Emitted color: cyan Wave length: 490nm LED Qty: 10x 3watt LEDs Brand: EPILEDS

$13.99
500cm WS-2812B Dream Color LED Strip Lights - 150/300-LEDs DC-5V

1 Review(s) | Add Your Review

Dream Color LED Strip Lights, WS 2812bB IC, 500cm, 150/300 LEDs, 150/300 ICs, DC 5v, black/white PCB,

$69.99 As low as: $39.99
Epileds 60W High Power Led Emitter Light Blue 460NM

1 Review(s) | Add Your Review

EPILEDS 60w Blue 460nm LED Emitter, VF: 22v~25v, IF: 700mA~1400mA, 20x 3watt LEDs,

$10.00
D Series Touch Panel LED Dimmer/Controller - dc 12v/24v 2/3/4-Channel 4A/Ch

1 Review(s) | Add Your Review

D Series Touch Panel LED Controller, D1 Dimmer 4A X 3CH, D2 CT controller 4A X 2CH, D3 RGB controller 4A X 3CH, D4 RGBW controller 4A X 4CH,

$32.99

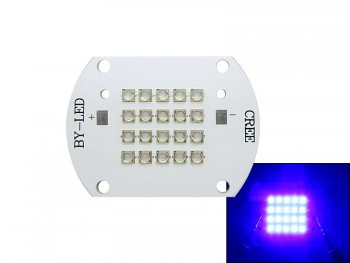

EPILEDS 60W Royal Blue 450nm LED Emitter Light 22-25V 7000-1400mA
