Cree XLamp XT-E LED - 1 LED 1w~5w warm white/ neutral white/ cold white/ royal blue

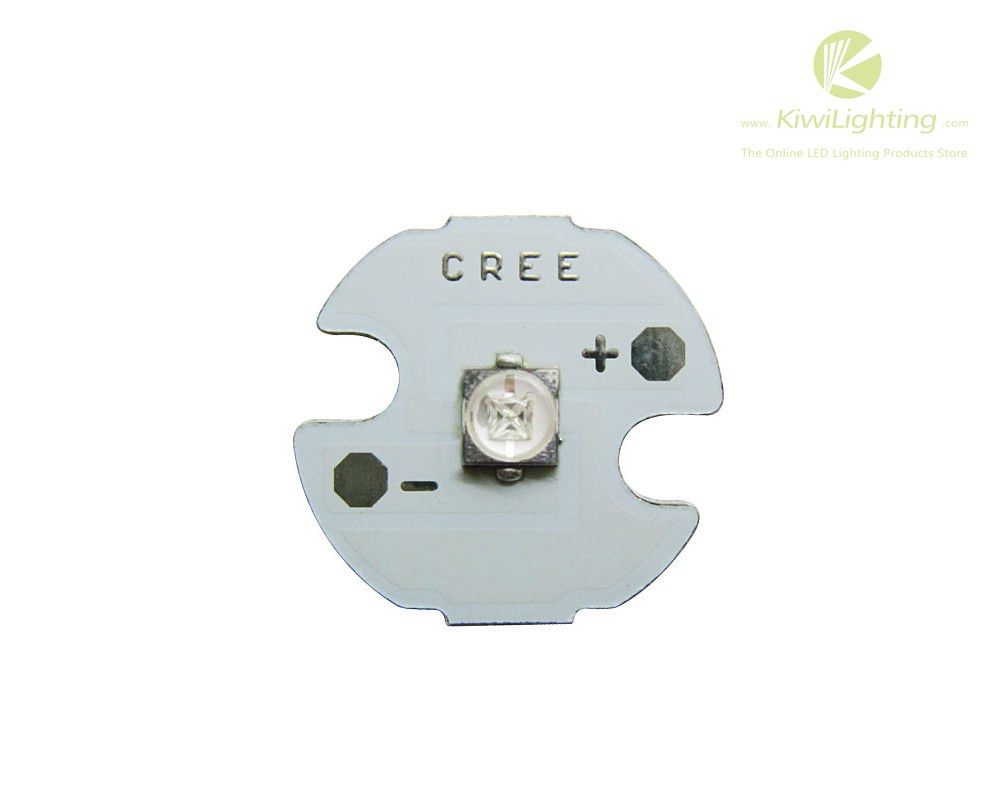

Cree XLamp XT-E LED,
1 LED,
IF: 350-1500mA,
VF: 2.85-3.3V,
Colors: warm white, neutral white, cold white, royal blue,
PCB diameter: 16mm, 20mm,

White
Color temprature: warm white 3000K, neutral white 4800K, cold white 6000K-6500K,
Lumen: 463lm,
VF: 2.85V,
IF: 350-1500mA,
Power: 1-5 watt,
Viewing angle: 115degree,
PCB diameter: 16mm, 20mm,

Royal Blue,
wave length: 450 – 465mm,
VF: 3.0-3.3V,
IF: 1000mA,
Power: 3 watt,
PCB diameter: 16mm/20mm,

Highest-performing lighting-class LED. Cree XLamp XT-E White LEDs are the highest-performance white LEDs available. The XT-E LED delivers twice the lumens-per-dollar of previously available LEDs in the popular XP footprint. By leveraging the popular XP footprint, customers can easily incorporate the XT-E LED into existing XP LED designs to shorten design cycle and improve time to market. Built using the latest generation of Cree's silicon carbide based LED chips that deliver higher flux and efficacy, the XLamp XT-E White LEDs set new standards of efficacy, light extraction and quality. Designed to accelerate LED lighting adoption, the XT-E LED delivers up to 148 lumens and 148 lumens per watt in cool white (6000 K) or up to 114 lumens and 114 lumens per watt in warm white (3000 K), both at 350 mA, 85°C.

• Size (mm x mm) 3.45 x 3.45
• Maximum drive current (A) 1.5
• Maximum power (W) 5
• Light output Up to 456 lm @ 5 W, 85°C
• Typical forward voltage @ 350 mA, 85°C (V) 2.85
• Viewing angle (degrees) 115
• Binning 85°C, ANSI
• Thermal resistance (°C/W) 5
• Reflow-solderable Yes – JEDEC J-STD-020C-compatible
• RoHS and REACH-compliant Yes
• UL-recognized-component Yes - Level 4 Enclosure Consideration

• Non-Directional
• Directional
• Downlights
• Low- & High-Bay
• Roadway & Parking
• Consumer Portable
• High-End Portable

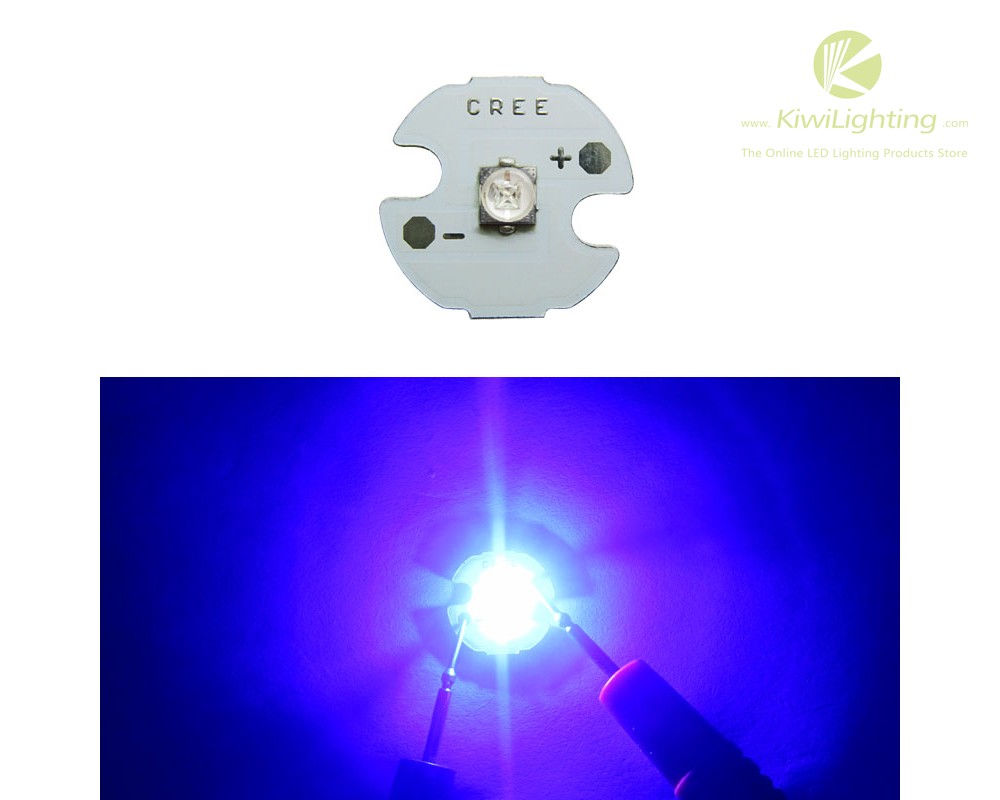

High-performing royal-blue LED optimized to lower system cost for remote-phosphor applications. The new XLamp XT-E Royal Blue LED delivers the industry’s tightest wavelength bins combined with category-leading brightness to simplify remote-phosphor designs and lower system costs. The XLamp XT-E Royal Blue is Cree’s brightest, most-efficient and smallest royal-blue LED. Based on Cree's latest silicon-carbide-based LED platform, the XLamp XT-E Royal Blue LED delivers up to 575 mW at 350 mA and 85°C.

• Cree XLamp XT-E Royal Blue LED,
• Size (mm x mm) 3.45 x 3.45
• Maximum drive current (A) 1.5
• Typical forward voltage (V) 2.85 @ 350 mA, 85 °C
• Viewing angle (degrees) 140
• Binning 85°C
• Thermal resistance (°C/W) 5
• Reflow-solderable Yes – JEDEC J-STD-020C-compatible
• RoHS and REACH-compliant Yes

• Non-Directional
• Downlights
