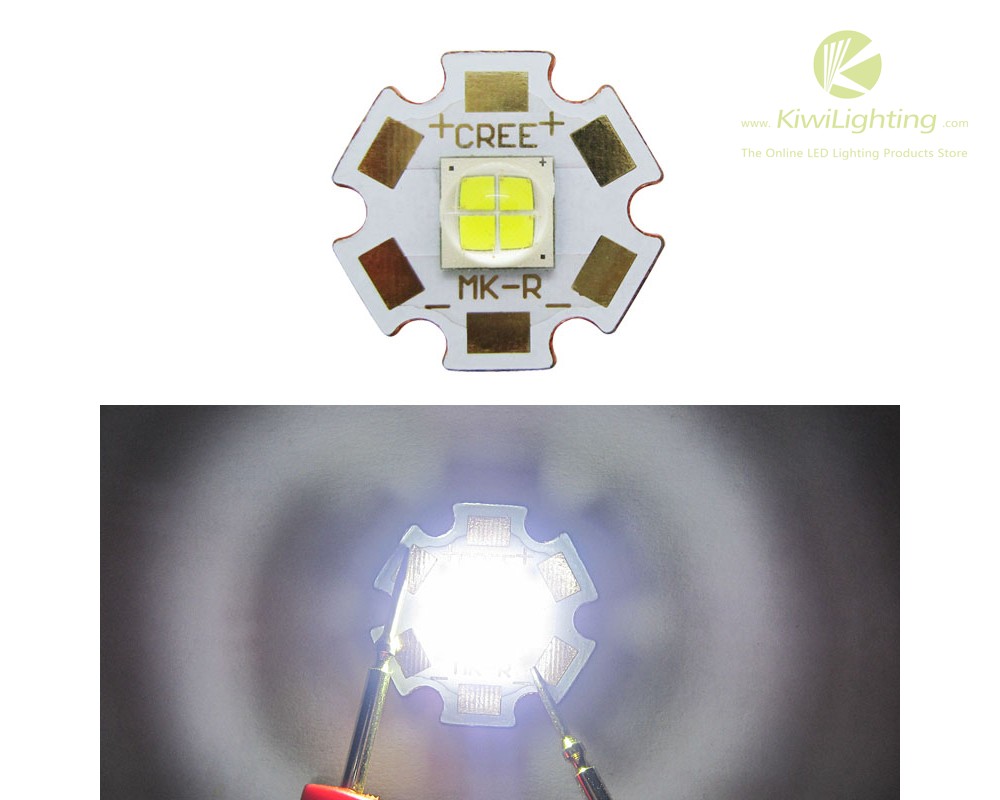

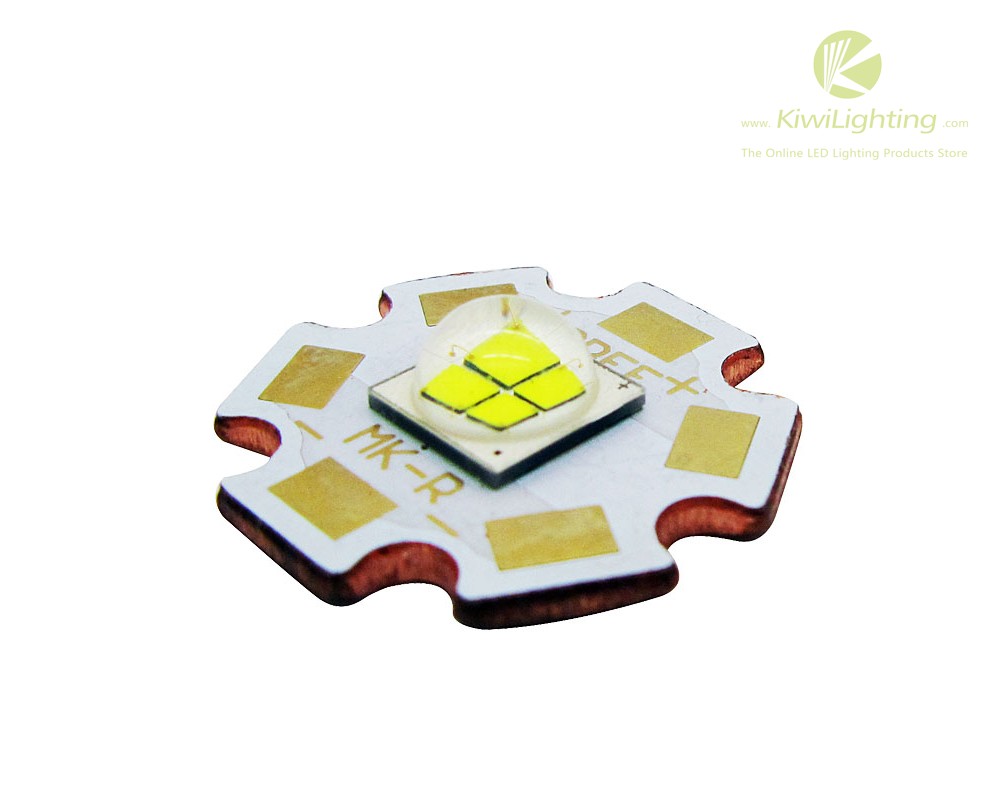

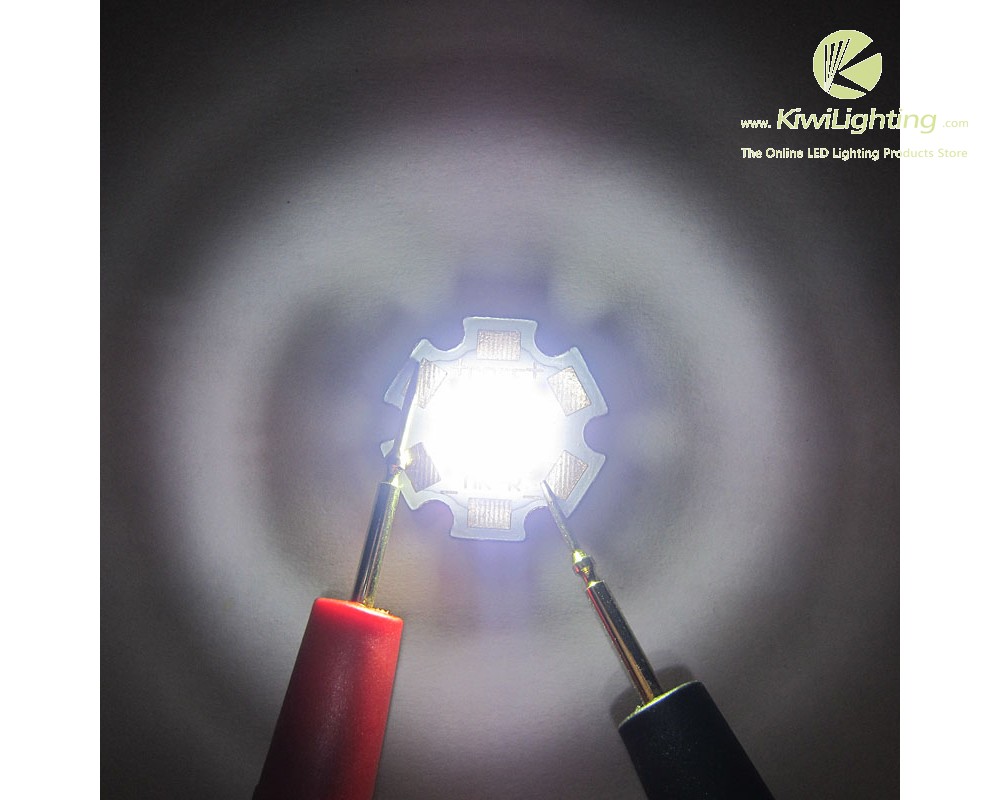

Cree XLamp MK-R MKR LED Emitter Light 1769lm White 6000K DC 12V 1.25A On Copper PCB Board

SKU:KW-MKR-WH (In stock)

Cree XLamp MK-R LED Emitter,
1769lm @ 15W 85°C,
White 6000K,
DC 12V 1.25A,
PCB diameter: 20mm,

Regular Price: $11.99

Special Price: $9.99

+

Regular Price: $11.99

Special Price: $9.99

Details

Cree XLamp MK-R LED Emitter Light 1769lm White 6000K DC 12V 1.25A



Technical Parameters:

  • Cree XLamp MK-R LED Emitter
  • 1769lm @ 15W 85°C,
  • White 6000K,
  • DC 12V 1.25A,
  • PCB diameter: 20mm



Cree® Xlamp MK-R LEDs DescriPtion

Built on Cree’s revolutionary SC³ Technology® platform, the XLamp® MK-R LeD brings new levels of price and performance to directional LeD arrays, enabling lighting manufacturers to create the next generation of high-lumen indoor and outdoor LeD lighting systems. In single-LeD systems, the XLamp MK-R LeD, with easyWhite® color binning, provides the LeD industry’s tightest unit-to-unit color consistency. For systems using multiple LeDs, the MK-R enables manufacturers to use fewer LeDs while maintaining light output and color consistency, which translates to lower system cost.The XLamp MK-R LeD is optimized for directional lighting applications and is a welcome addition to applications requiring high lumen output, a compact optical source and a broad palette of color temperature and CRI values.

Features

  • Available in ANSI white bins as well as 4-step and 2-step easyWhite bins at 2700 K, 3000 K, 3500 K, 4000 K, 4500 K and 5000 K CCT
  • Two voltage options: 6 v & 12 v
  • Low thermal resistance: 1.7 °C/W
  • Maximum junction temperature: 150 °C
  • Binned at 85 °C
  • viewing angle: 120°
  • Available in cool white, 70-, 80- and 90-CRI minimums
  • Unlimited floor life at ≤ 30 ºC/85% RH
  • Reflow solderable - JEDEC J-STD-020C
  • electrically neutral thermal path
  • RoHS- and REACh-compliant
  • UL-recognized component (e349212)

Applications

  • Directional
  • Low- & High-Bay
  • Roadway & Parking

download Cree XLamp MK-R LED datasheet

Specifications
SKU KW-MKR-WH
Net Weight(g) 4
Emitted Color Cold White
DC Forward Voltage(V) 12
Luminous Flux(lm) 1,769
DC Forward Current(mA) 1,250
Color Temperature(K) 6,000
Power Consumption(W) 15
Brand Cree
LED Amount(pcs) 4
Diamter 20mm
Material aluminium
LED Package 7.0mm x 7.0mm
Life Span 50,000 hours
