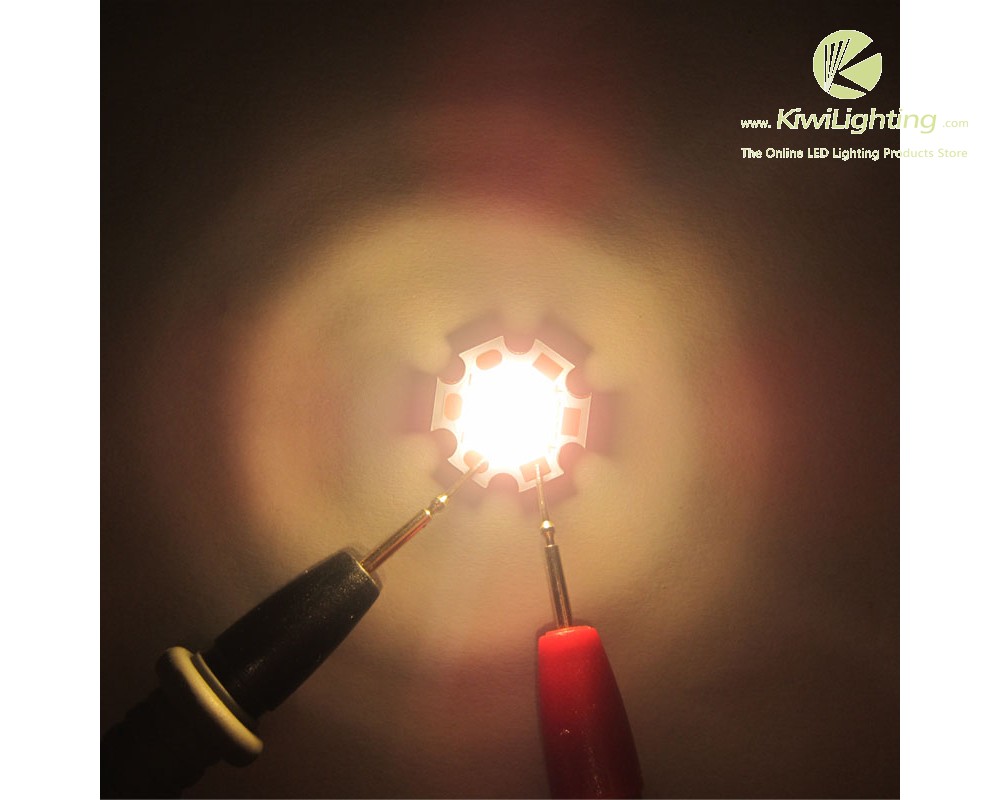

Cree XHP70 Led Light
Technical Parameters:
Powered by Cree’s groundbreaking SC5 Technology™ Platform, the XLamp XHP70
LeD is a member of Cree’s extreme High
Power (XHP) class of LEDs that redefines
lumen density and reliability to radically
reduce system costs by up to 40 percent.
At its maximum current, the XHP70 LeD
delivers twice the light output of the XLamp
MK-R LeD, with similar lumens per watt and
without increasing the package footprint.
The XHP70 LeD also achieves longer
lifetime at higher operating temperatures
than previous LeD technology. The result
is significantly lower thermal, mechanical
and optical costs at the system level.
FEAturEs
• Available in white, configurable to 6 V or 12 V by PCB layout
• Available in ANSI white bins at 3000 K
• Available in standard,80-minimum CRI options
• Binned at 85 °C
• Maximum drive current: 4800 mA (6 V), 2400 mA (12 V)
• Low thermal resistance: 0.9 °C/W
• Wide viewing angle: 120°
• Unlimited floor life at ≤ 30 ºC/85% RH
• Reflow solderable - JEDEC
J-STD-020C
• RoHS-compliant
• UL® recognized component
order Code: XHP70- 30G- K2
Package Included:
- 1PC X The Led You Choose
SKU | KW-XHP70-WW6V |
---|---|
Net Weight(g) | 8 |
