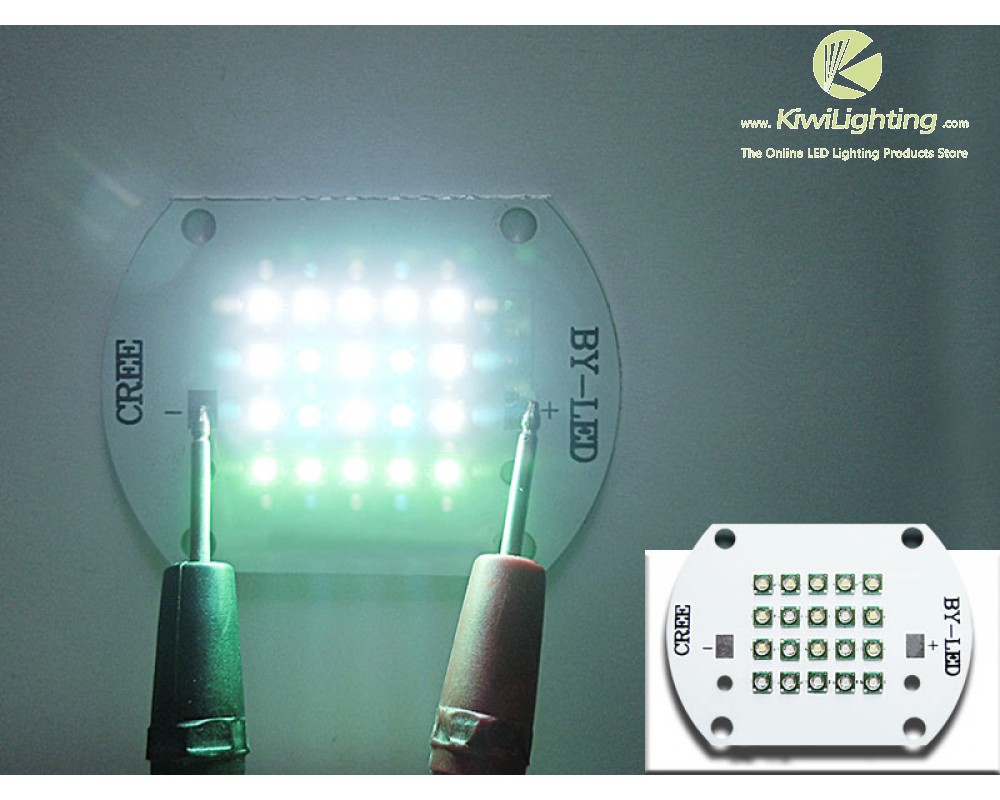

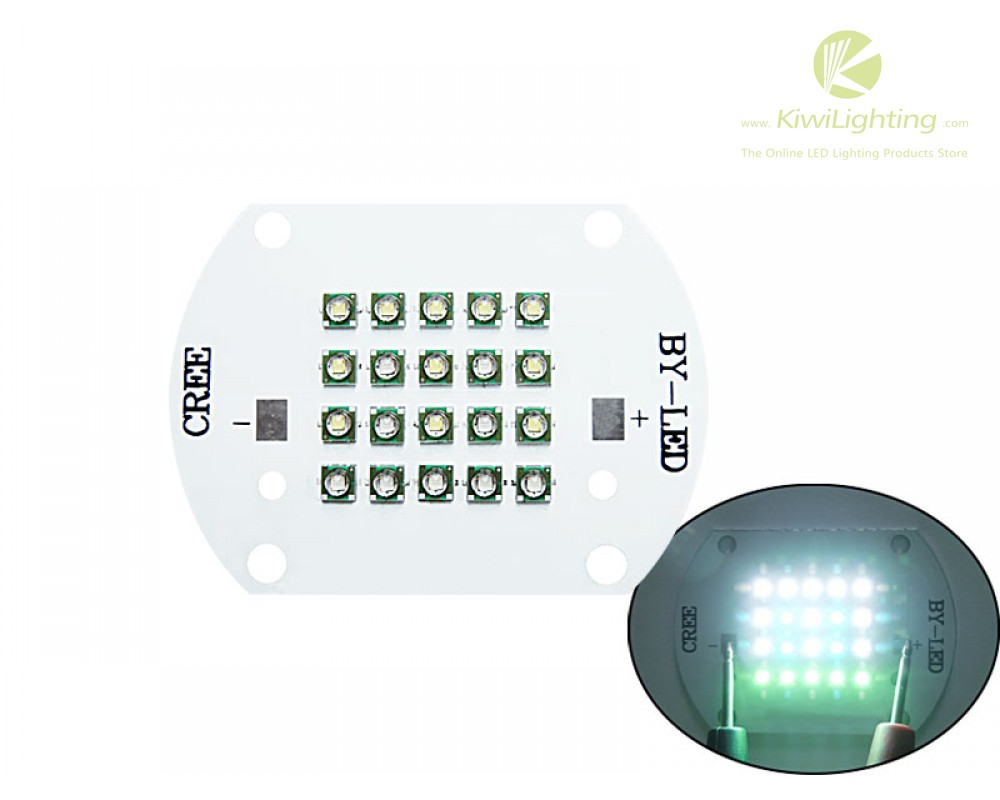

60W Cree XP-E Reef Coral Aquarium LED Light - Blue+Green+White
4 blue LEDs, 6 green LEDs, 10 white LEDs,
VF: 30-31V,
IF: 2A,
Power: 60 watt,
PCB demension: 55*40*2mm,
Cree XLamp XP-E LED Description
The XLamp XP-E LED combines the proven lighting-class performAnce and reliability of the XLamp XR-E LED in a package with 80% smAller footprint. This smAller package extends Cree’s award-winning LED performAnce into new LED lighting applications. New XLamp XP-E color LEDs provide up to 69 percent more flux than the existing XLamp XR color portfolio, with an 80 percent smAller footprint. XLamp XP-E reduces the space between LED die by 75%, compared to XLamp XR color LEDs.
Specifications- demension (mm x mm) 3.45 x 3.45
- Available in white, outdoor white, 80-CRI, 85-CRI and 90-CRI white, royal blue, blue, green, amber, red & red-orange
- mAximum drive current (A) - White 1
- mAximum power (W) - White 3.5
- Light output - White Up to 291 lm @ 3.5 W
- Typical forward voltage @ 350 mA (V) 3.1
- Viewing angle (degrees) - White 115
- Binning Standard (White), ANSI (White)
- ThermAl resistance (°C/W) - White 9
- Reflow-solderable Yes – JEDEC J-STD-020C-compatible
- RoHS and REACH-compliant Yes
- UL-recognized-component Yes - Level 4 Enclosure Consideration
- Directional
- Consumer Portable
- High-End Portable
- Architectural
- Entertainment
- Vehicle
SKU | BY-XPE-60WBGW |
---|---|
Net Weight(g) | 30 |
DC Forward Current(mA) | 2,000 |
Power Consumption(W) | 60 |
Brand | Cree |
LED Amount(pcs) | 20 |
Dimension | 55*40*2mm |
LED Package | 3.45mm x 3.45mm |
-
30W Cree XP-E Reef Coral Aquarium Led Lamp Light 4pcs Blue + 6pcs White 30-36V 1000mA
Cree XP-E Reef Coral Aquarium Light LED, 4 Blue LEDs, 6 White LEDs, VF: 30-36V, IF: 1A, 30 watt,Regular Price: $17.99
Special Price: $12.99
-
60W Cree XP-E LED light
60W Cree XP-E LED light, 20 LEDs, VF: 30-36V, IF: 2A, Power: 60 watt, optional colors: white, blue 465-470nm, PCB demension: 55*40*2mm,Price From:Regular Price: $23.99
Special Price: $19.99
-
DIY Led Light 30W Cree XP-E Reef Coral Aquarium Light LED Blue+Green+White 30-36V 1000mA
Cree XP-E Reef Coral Aquarium Light LED, 30w, 2 Blue LEDs, 3 Green LEDs, 5 White LEDs, VF: 30-36V, IF: 1A,Regular Price: $19.99
Special Price: $12.99
