Details
Dream Color LED strip,
LED controller

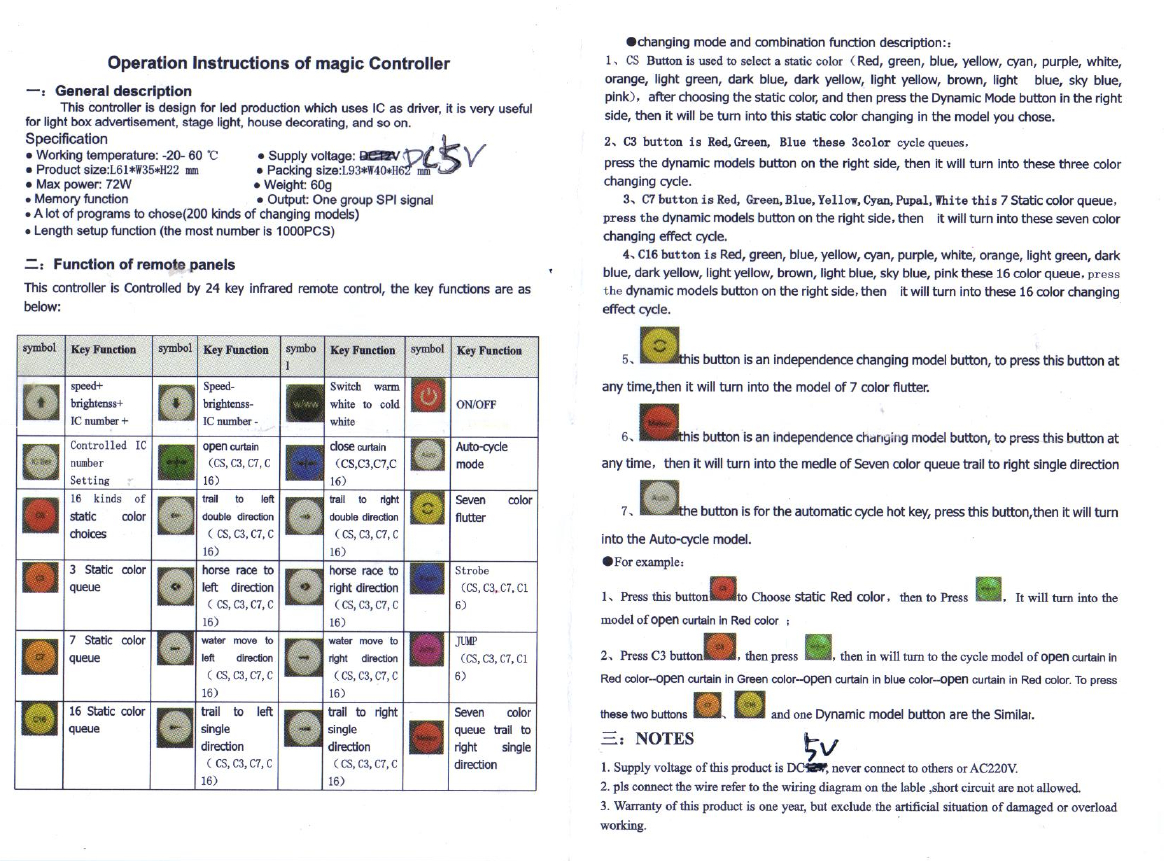

Download LED controller userguide
- DC 5V, 3.6A,
- 50cm,
- 72 2811 ICs,
- 72 5050 SMD RGB LEDs,
- 3m Adhesive Backing,
Product Video
LED controller
This controller is design for led production which uses IC as driver, it is very useful for light box adverstisement,stage light,house decorating,and so on.
- Working temperature:-20-60
- Supply voltage:DC5V
- Product size:L61*W35*H22MM
- Packing size:l93*W40*H62MM
- Max power:72W
- weight:60g
- Memory function
- output:one group SPI signel
- A lot of programs to chose(200 kinds of changing models)
- Length setup function(the most number is 1000pcs)
- This controller is controller by 24 key infrared remote control.
Download LED controller userguide
Specifications
| SKU | BY-LS2811KIT50A |
|---|---|
| Net Weight(g) | 80 |
| Emitted Color | RGB |
| Input Current(mA) | 3,600 |
| Input Voltage | DC 5V |
| LED Amount(pcs) | 72 |
| Dimension | PCB width 12mm |
| LED Package | 5.0mm x 5.0mm |
| LED Driver IC Type | WS-2811 IC |
| Life Span | 50,000 hours |
