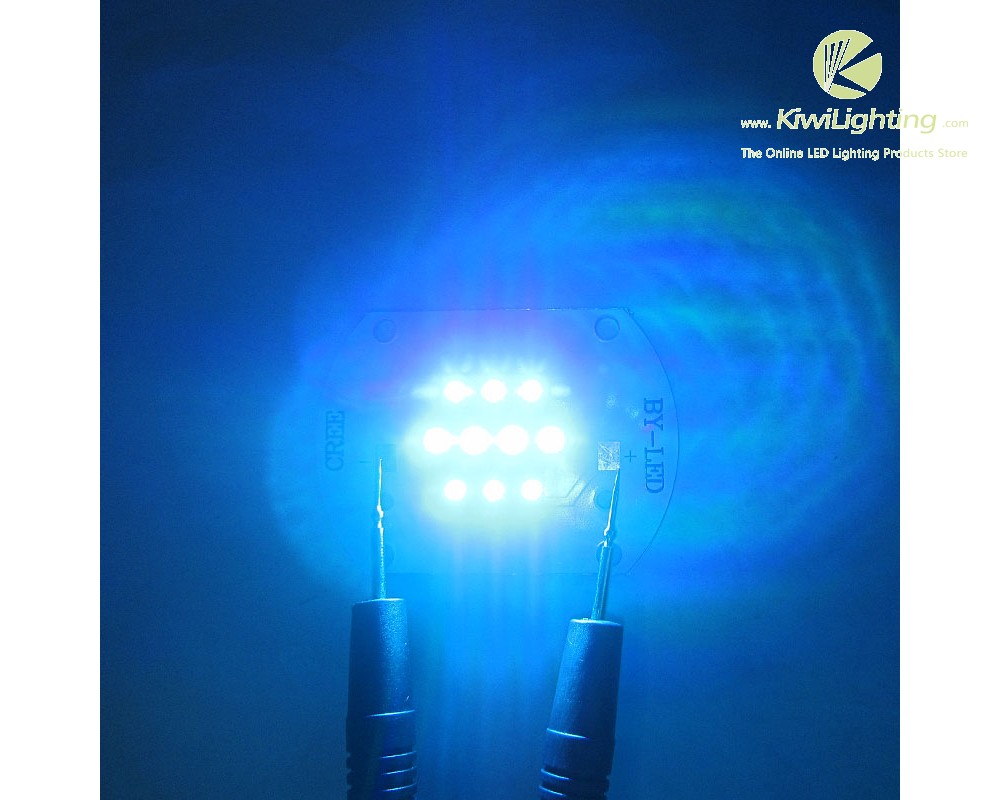

30W Cree XP-E Blue+Green+Royal Blue LED Grow Light

30W Cree XP-E Blue+Green+Royal Blue LED Grow Light

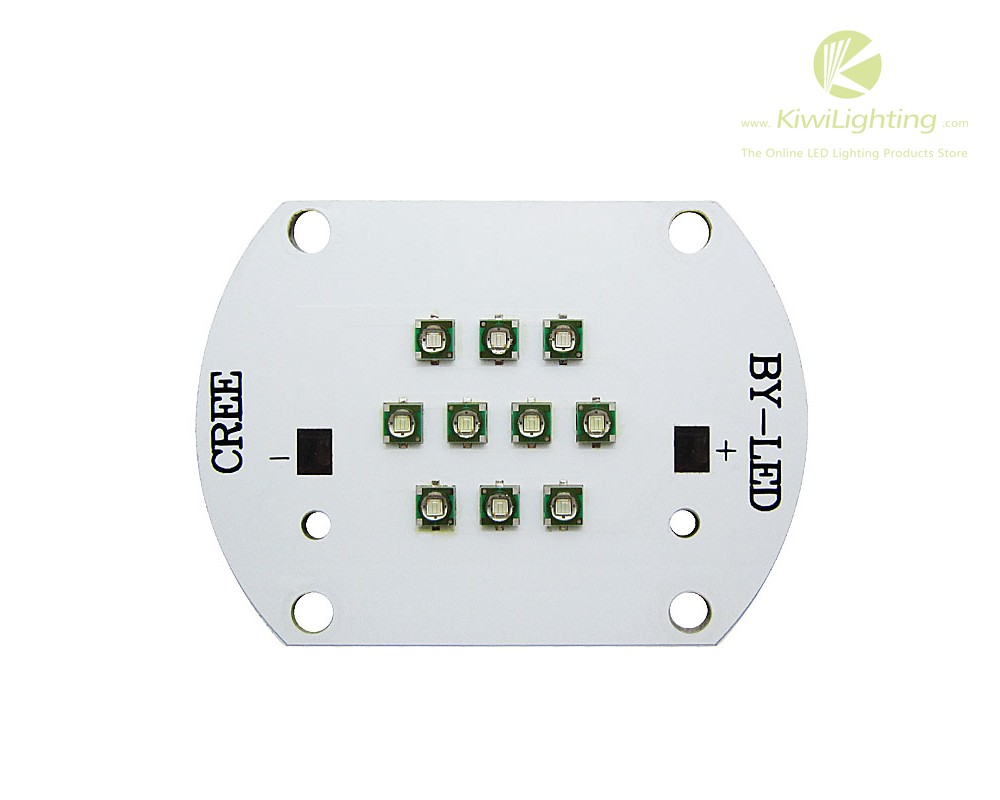

• Chip Configuration: 3 blue + 4 green + 3 royal blue LEDs,
• Light source: 10x Cree XP-E LED chip array
• Forward voltage: DC 30V - 35V
• Constant current: 1A
• Power: 30W
• Lifespan: about 50,000 hours
• Size: 55*40*2mm

Cree XLamp XP-E LED Description

The XLamp XP-E LED combines the proven lighting-class performAnce and reliability of the XLamp XR-E LED in a package with 80% smAller footprint. This smAller package extends Cree’s award-winning LED performAnce into new LED lighting applications. New XLamp XP-E color LEDs provide up to 69 percent more flux than the existing XLamp XR color portfolio, with an 80 percent smAller footprint. XLamp XP-E reduces the space between LED die by 75%, compared to XLamp XR color LEDs.

Specifications

• demension (mm x mm) 3.45 x 3.45
• Product options White, Color
• mAximum drive current (A) - White 1
• mAximum power (W) - White 3.5
• Light output - White Up to 291 lm @ 3.5 W
• Typical forward voltage @ 350 mA (V) 3.1
• Viewing angle (degrees) - White 115
• Binning Standard (White), ANSI (White)
• ThermAl resistance (°C/W) - White 9
• Reflow-solderable Yes – JEDEC J-STD-020C-compatible
• RoHS and REACH-compliant Yes
• UL-recognized-component Yes - Level 4 Enclosure Consideration

Applications

• Directional
• Consumer Portable
• High-End Portable
• Architectural
• Entertainment
• Vehicle

Features

• Available in white, outdoor white, 80-CRI, 85-CRI and 90-CRI white, royal blue, blue, green, amber, red & red-orange
• mAximum drive current: up to 1 A
• Low thermAl resistance: as low as 9 °C/W
• mAximum junction temperature: 150 °C
• Wide viewing angle: 115°‑130°
• Unlimited floor life at ≤ 30 °C/85% RH
• Reflow solderable ‑ JEDEC J‑STD‑020C compatible
• Electrically neutral thermAl path
• RoHS‑ and REACh‑compliant
• UL‑recognized component (e349212)

download Cree XLamp XP-E LED datasheet
