Details

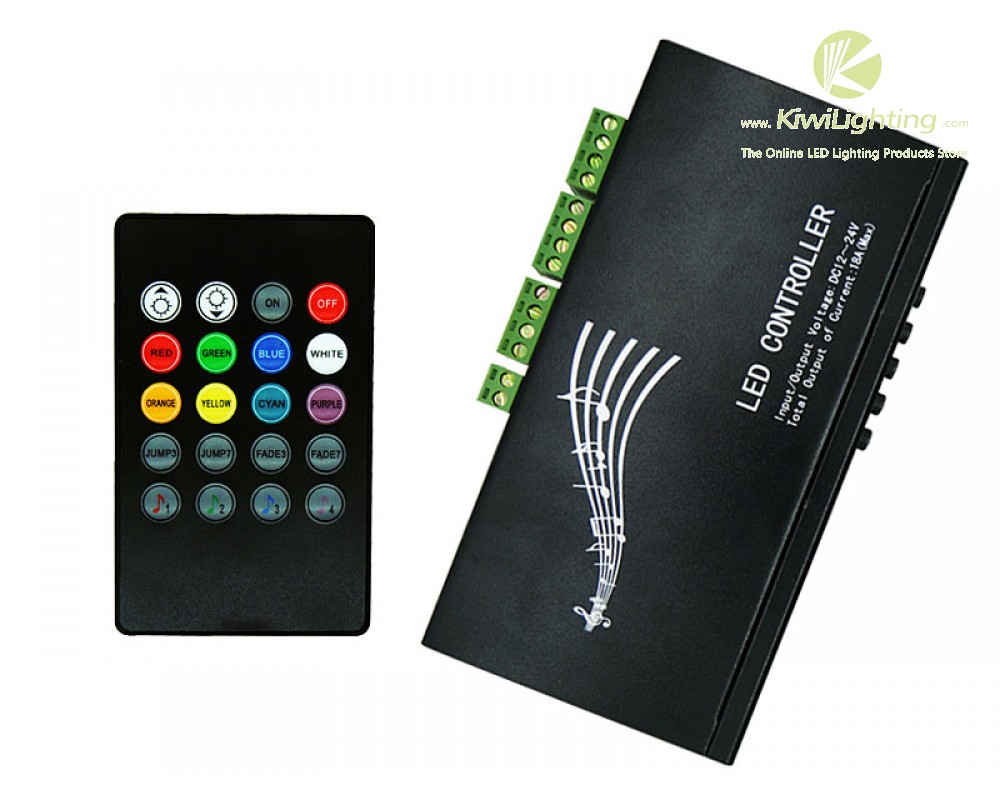

Music LED Controller 3 Channel 6A/Ch Common Anode With 20 Key Infrared Remote Control

Downlaod User Guide

Product Description:

20 Key infrared Music LED controller adopts the advanced micro control unit. It is used for controlling a variety of LED lamp. For instance, point-source light, flexible strip light, wall washer light, glass curtain wall light and so on; it has many advantages such as low cost, convenient connection and ease of use. Meanwhile you could adjust brightness, static colors and color changing effects via infrared remote control. When it is in sound-control mode, the colors will change with the music rhythm.

Technical Parameters:

Working temperature: -20°C~60°C
Input voltage: DC12-24V
Output: 3 channels
Connecting mode: Common anode
External dimension: L163.5*W82.5*H25 mm
Packing size: L210*W165*H55 mm
Net weight: 500g
Gross weight: 600g
Static power consumption: <1 W
Output current: <6 A (each channel)
Output power: <216W

Pacakge Included:

1PC X Music LED Controller 3 Channel 6A/Ch Common Anode With 20 Key Infrared Remote Control

Specifications

SKU	BY-CON-MU20B
Net Weight(g)	595
Output Current(mA)	18,000
Input Voltage	12-24Vdc
Operating Temperature	-20°C ~ +60°C
Dimension	L163.5W82.5H25 mm
Output Channels	3 Channels
Connection Mode	Common Anode
