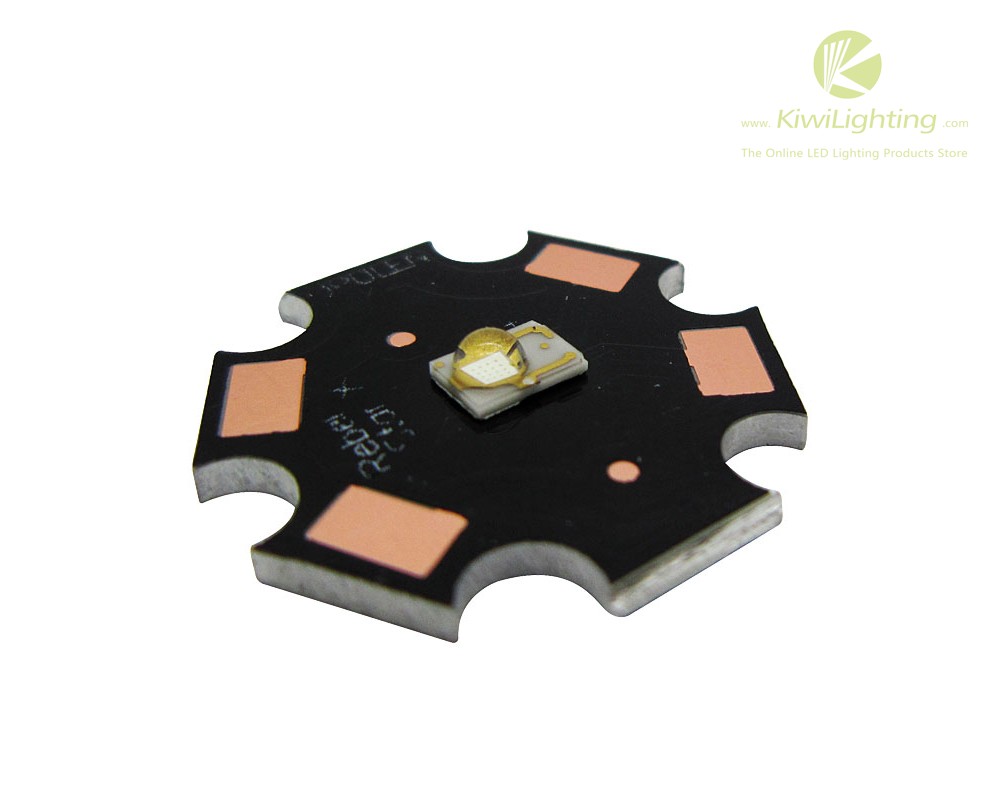

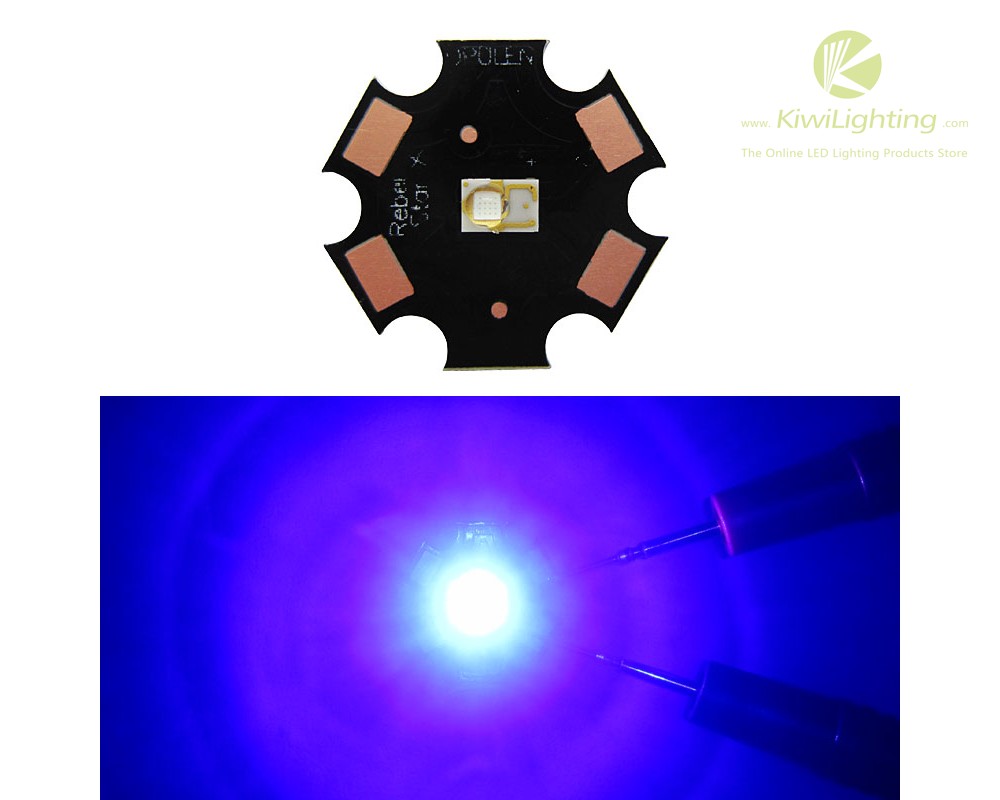

1W-3W Philips LEXEON Rebel ES Royal Blue 450NM-455NM LXML-PRO1-126 Led Emitter Light 3.2-3.4V 350-1000mA

SKU:KW-PH3RB (In stock)

Voltage: 3.2-3.4V
Current: 350-1000MA
Wavelength: 450-455NM
Power: 1-3W
PCB Size: 20MM

$1.50
+
$1.50
Details

1W-3W Philips LEXEON Rebel ES Royal Blue 450NM-455NM LXML-PRO1-126 Led Emitter Light 3.2-3.4V 350-1000mA





Technical Parameters:



  • LXML-PRO1-126
  • Model: LUXEON Rebel ES Royal-Blue
  • Voltage: 3.2-3.4V
  • Current: 350-1000MA
  • Wavelength: 450-455NM
  • Power: 1-3W
  • PCB Size: 20MM


LUXEON Rebel ES Royal-Blue

LUXEON Rebel ES royal-blue is tested and binned at 700 mA delivering consistent high lumen performance and design flexibility you need. Create high quality white light using LUXEON Rebel ES royal-blue and phosphor technology. LUXEON Rebel ES is designed for use in general illumination applications, as well as, those needing a highly saturated royal-blue color.
Minimum luminous flux specified at 700 mA
Maximum junction temperature of 120ºC.
Maximum drive current 1A.
Best moisture sensitivity: JEDEC Level 1 unlimited floor life—no need for reconditioning.
RoHS compliant—lead-free reflow solder JEDEC 020c compatible.
Autoclave compliant—JESD22 A-102.
Electrically isolated thermal pad

Specifications
SKU KW-PH3RB
Net Weight(g) 3
Emitted Color Royal Blue
Output Voltage from(V) 3.20
Output Voltage to(V) 3.40
Brand Philips
LED Amount(pcs) 1
Life Span 50,000 hours
Lens Color Water Clear
